B182E-ALL DOOR LOCK CONTROL CIRCUIT HIGH- CLUSTER

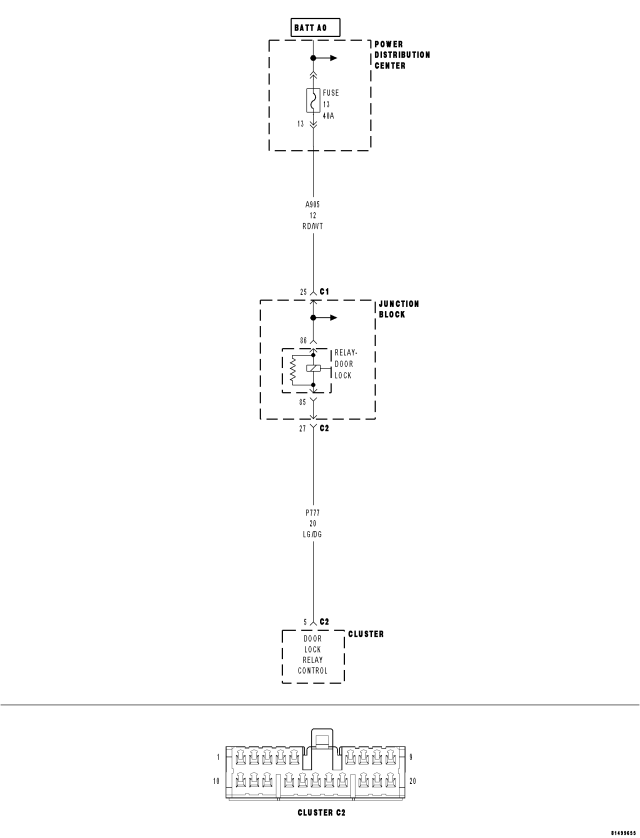

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
When the Cluster senses a high condition on the (P777) Door Lock Relay Control circuit for over 10 seconds, this code will set.
| Possible Causes |
| (P777) DOOR LOCK RELAY CONTROL CIRCUIT SHORT TO BATTERY |
| JUNCTION BLOCK |
| INSTRUMENT CLUSTER |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONWith the scan tool, record and erase DTC's
Operate the door locks several times.
Cycle the ignition from on to off.
Turn the ignition on.
With the scan tool, read DTC's.
Does the scan tool display B182E-ALL DOOR LOCK CONTROL CIRCUIT HIGH?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. DOOR LOCK RELAY SHORTED TO BATTERY
NOTE: Ensure the doors are unlocked and the windows down before proceeding.
Turn the ignition off.
Disconnect the Cluster C2 connector.
Momentarily connect a jumper wire between the (P777) Door Lock Relay Control circuit and the (Z905) Ground circuit in the Cluster C2 connector.
Did the doors lock?
Yes
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 3
3. (P777) DOOR LOCK RELAY CONTROL CIRCUIT SHORTED TO BATTERY
Disconnect the Junction Block C2 connector (on top of junction block).
Measure the voltage between ground and the (P777) Door Lock Relay Control circuit in the Cluster C2 connector.
Turn the ignition on.
Is there any voltage present?
Yes
- Repair the (P777) Door Lock Relay Control circuit for a short to voltage.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Junction Block in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
