B1D07 - MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK - DDM

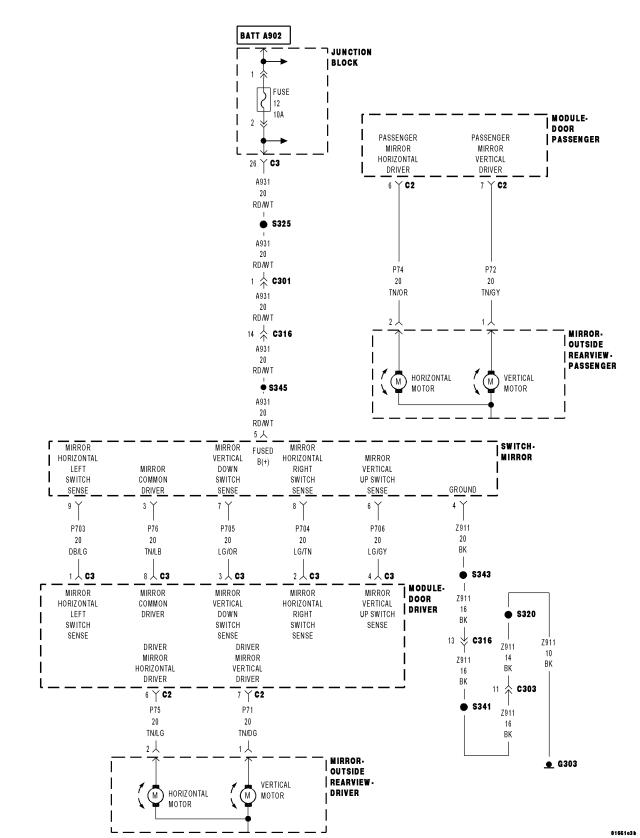

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
When mirror operation is requested.
- Set Condition:
If the Driver Door Module detects that the Mirror Switch is stuck in the same position for more than 30 seconds.
| Possible Causes |
| MIRROR SWITCH |
| DRIVER DOOR MODULE |
Diagnostic Test
1. VERIFY IF DTC B1D04 MIRROR ADJUST SWITCH INPUT CIRCUIT/PERFORMANCE IS ACTIVETurn the ignition on.
With the scan tool, record and erase DTCs.
Press the Mirror Switch in all directions several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display: B1D04 MIRROR ADJUST SWITCH INPUT CIRCUIT/PERFORMANCE?
Yes
- Diagnose and repair the DTC. Refer to the Table of Contents in this section for a complete list of Power Mirror System DTCs.
No
- Go To 2
2. TEST THE MIRROR SWITCH
Turn the ignition off.
Remove the Mirror Switch in accordance with the Service Information.
Disconnect the Mirror Switch connector.
Test the Mirror Switch in all positions in accordance with the Service information. (Refer to 8 - ELECTRICAL/POWER MIRRORS/POWER MIRROR SWITCH - DIAGNOSIS AND TESTING).
Does the switch pass the test in all positions?
Yes
- Go To 3
No
- Replace the Mirror Switch in accordance with the Service information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
3. VERIFY THAT DTC B1D07 MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK IS STILL ACTIVE
Turn the ignition off.
Reconnect the Mirror Switch connector.
Reinstall the Mirror Switch in accordance with the Service Information.
Turn the ignition on.
With the scan tool, erase DTCs.
Press the Mirror Switch in all directions several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display: B1D07 MIRROR ADJUST SWITCH INPUT CIRCUIT STUCK?
Yes
- Replace the Driver Door Module in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. If the conditions returns, replace the switch.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
