B1D0A(DDM), B1D13(PDM) - MIRROR POSITION SENSOR POWER SUPPLY CIRCUIT HIGH
For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
DTC B1D0A – If the Driver Door Module senses voltage is greater than 5.5 volts for more than 30 ms on the (P669) Driver Mirror Sensor Supply circuit.
DTC B1D13 – If the Passenger Door Module senses voltage is greater than 5.5 volts for more than 30 ms on the (P666) Passenger Mirror Sensor Supply circuit.
| Possible Causes |
| FOR THE DRIVER MEMORY MIRROR SYSTEM: |
| (P669) DRIVER MIRROR SENSOR SUPPLY CIRCUIT SHORTED TO VOLTAGE |
| (P669) DRIVER MIRROR SENSOR SUPPLY CIRCUIT OPEN |
| (P69) DRIVER MIRROR SENSOR GROUND CIRCUIT OPEN |
| DRIVER OUTSIDE REARVIEW MIRROR OPEN |
| DRIVER DOOR MODULE |
| FOR THE PASSENGER MEMORY MIRROR SYSTEM: |
| (P666) PASSENGER MIRROR SENSOR SUPPLY CIRCUIT SHORTED TO VOLTAGE |
| (P666) PASSENGER MIRROR SENSOR SUPPLY CIRCUIT OPEN |
| (P66) PASSENGER MIRROR SENSOR GROUND CIRCUIT OPEN |
| PASSENGER OUTSIDE REARVIEW MIRROR OPEN |
| PASSENGER DOOR MODULE |
NOTE: This procedure addresses the Driver Memory Mirror system's circuits and components and the Passenger Memory Mirror system's circuits and components. Select only that which applies to the system you are diagnosing.
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
With the scan tool, record and erase DTCs.
Operate the Mirror Switch in all directions several times.
Cycle the ignition from on to off 3 times.
Turn the ignition on.
With the scan tool, read DTCs.
Does the scan tool display: B1D0A or B1D13 MIRROR POSITION SENSOR POWER SUPPLY CIRCUIT HIGH?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
2. TEST FOR A SHORTED OUTSIDE REARVIEW MIRROR
For the Driver Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Driver Outside Rearview Mirror connector.
- Turn the ignition on.
- Measure the voltage between the (P669) Driver Mirror Sensor Supply circuit and the (P69) Driver Mirror Sensor Ground circuit.
For the Passenger Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Passenger Outside Rearview Mirror connector.
- Turn the ignition on.
- Measure the voltage between the (P666) Passenger Mirror Sensor Supply circuit and the (P66) Passenger Mirror Sensor Ground circuit.
What is the voltage?
4.8 Volts To 5.2 Volts
- Replace the Outside Rearview Mirror in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
Below 4.8 Volts
- Go To 3
Above 5.2 Volts
- Go To 5

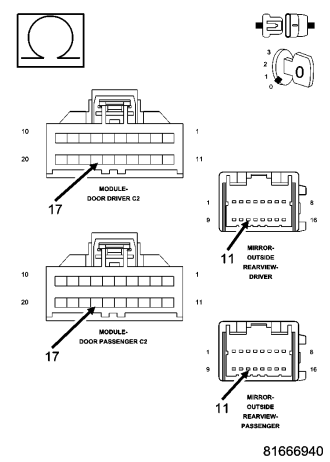

3. CHECK THE (P669) DRIVER MIRROR SENSOR SUPPLY CIRCUIT OR THE (P666) PASSENGER MIRROR SENSOR SUPPLY CIRCUIT FOR AN OPEN
For the Driver Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Driver Door Module C2 connector.
- Measure the resistance of the (P669) Driver Mirror Sensor Supply circuit between the Driver Outside Rearview Mirror connector and the Driver Door Module C2 connector.
For the Passenger Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Passenger Door Module connector.
- Measure the resistance of the (P666) Passenger Mirror Sensor Supply circuit between the Passenger Outside Rearview Mirror connector and the Passenger Door Module connector.
Is the resistance below 2.0 ohms?
Yes
- Go To 4
No, Driver Mirror
- Repair the (P669) Driver Mirror Sensor Supply circuit for an open.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No, Passenger Mirror
- Repair the (P666) Passenger Mirror Sensor Supply circuit for an open.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

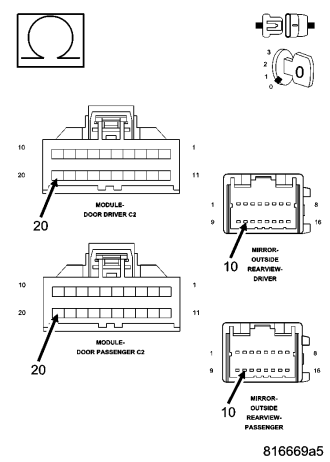

4. CHECK THE (P69) DRIVER MIRROR SENSOR GROUND CIRCUIT OR (P66) PASSENGER MIRROR SENSOR GROUND CIRCUIT FOR AN OPEN
For the Driver Memory Mirror System, proceed as follows:
- Measure the resistance of the (P69) Driver Mirror Sensor Ground circuit between the Driver Outside Rearview Mirror connector and the Driver Door Module C2 connector.
For the Passenger Memory Mirror System, proceed as follows:
- Measure the resistance of the (P66) Passenger Mirror Sensor Ground circuit between the Passenger Outside Rearview Mirror connector and the Passenger Door Module connector.
Is the resistance below 2.0 ohms?
Yes, Driver Mirror
- Replace the Driver Door Module in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
Yes, Passenger Mirror
- Replace the Passenger Door Module in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No, Driver Mirror
- Repair the (P69) Driver Mirror Sensor Ground circuit for an open.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No, Passenger Mirror
- Repair the (P66) Passenger Mirror Sensor Ground circuit for an open.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).

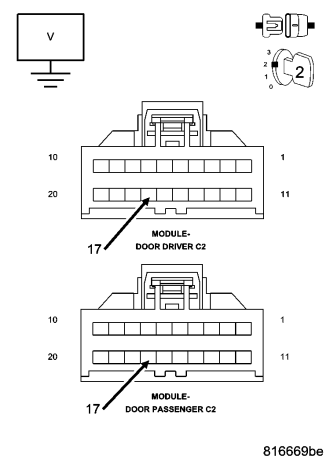

5. CHECK THE (P669) DRIVER MIRROR SENSOR SUPPLY CIRCUIT OR THE (P666) PASSENGER MIRROR SENSOR SUPPLY CIRCUIT FOR A SHORT TO VOLTAGE
For the Driver Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Driver Door Module C2 connector.
- Turn the ignition on.
- Measure the voltage of the (P669) Driver Mirror Sensor Supply circuit.
For the Passenger Memory Mirror System, proceed as follows:
- Turn the ignition off.
- Disconnect the Passenger Door Module connector.
- Turn the ignition on.
- Measure the voltage of the (P666) Passenger Mirror Sensor Supply circuit.
Is the voltage above 0.2 volts?
Yes, Driver Mirror
- Repair the (P669) Driver Mirror Sensor Supply circuit for a short to voltage.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
Yes, Passenger Mirror
- Repair the (P666) Passenger Mirror Sensor Supply circuit for a short to voltage.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No, Driver Mirror
- Replace the Driver Door Module in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
No, Passenger Mirror
- Replace the Passenger Door Module in accordance with the Service Information.
- Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE).
