2007 Commander XK Factory Service Manual 8 - ELECTRICAL

B1D7F-SEAT FRONT VERTICAL MOTOR CONTROL CIRCUIT PERFORMANCE

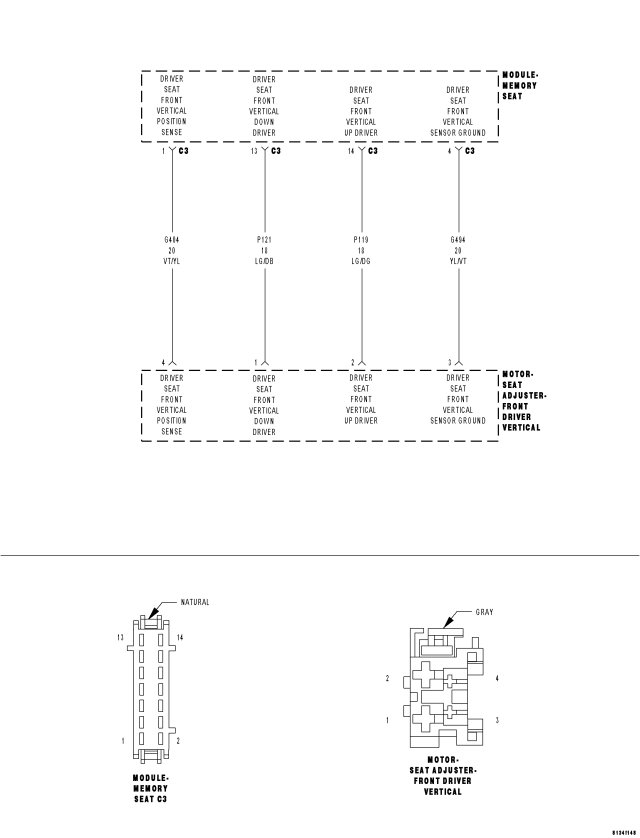

For a complete wiring diagram Refer to Section 8W.



Possible Causes

SEAT POSITION SENSOR CIRCUIT DIAGNOSTIC TROUBLE CODES

(G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT OPEN

(G494) DRIVER SEAT FRONT VERTICAL SENSOR GROUND CIRCUIT OPEN

(P119) DRIVER SEAT FRONT VERTICAL UP DRIVER

(P121) DRIVER SEAT FRONT VERTICAL DOWN DRIVER

FRONT DRIVER VERTICAL SEAT ADJUSTER MOTOR

MEMORY SEAT MODULE





Diagnostic Test

1. CHECK FOR RELATED DIAGNOSTIC TROUBLE CODES

Turn the ignition on.
With the scan tool, read DTC's.

Does the scan tool display any seat position sensor DTC's?

Yes


No

2. TEST FOR INTERMITTENT CONDITION

Turn the ignition on.
With the scan tool, record and erase DTC's
Move the Seat Switch in the Front Vertical position three times.
With the scan tool, read DTC's.

Does the scan tool display B1D7F–SEAT FRONT VERTICAL MOTOR CONTROL CIRCUIT PERFORMANCE?

Yes


No

3. CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE VOLTAGE



Disconnect the Front Driver Vertical Seat Adjuster Motor.

NOTE: Check connectors – Clean and repair as necessary.


Move the Seat Switch in the front vertical position during the next step.
Using a 12-volt test light connect one lead to the (G404) Driver Seat Front Vertical Position Sense circuit and the other lead to Driver Seat Front Vertical Sensor Ground at the Driver Front Vertical Seat Adjuster Motor connector.

Does the test light illuminate for approximately two seconds then turn off with the seat switch engaged?

Yes


No

4. CHECK THE DRIVER SEAT FRONT VERTICAL UP/DOWN DRIVER VOLTAGE



Move the Seat Switch in the front vertical position during the next step.
Using a 12-volt test light connect one lead to the (G119) Driver Seat Front Vertical Up Driver circuit and the other lead to (P121) Driver Seat Front Vertical Down Driver circuit at the Front Driver Vertical Seat Adjuster Motor connector.

Does the test light illuminate with the seat switch engaged?

Yes


No

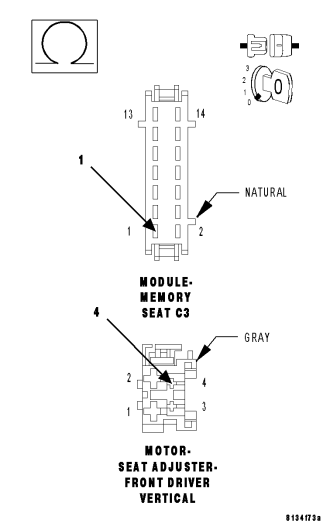

5. CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE WIRE FOR AN OPEN



Disconnect the Memory Seat Module C3 connector.

NOTE: Check connectors – Clean and repair as necessary.


Measure the resistance of the (G404) Driver Seat Front Vertical Position Sense circuit at the Front Driver Vertical Seat Adjuster Motor connector to the C3 connector.

Is the resistance above 1.0 ohm?

Yes


No

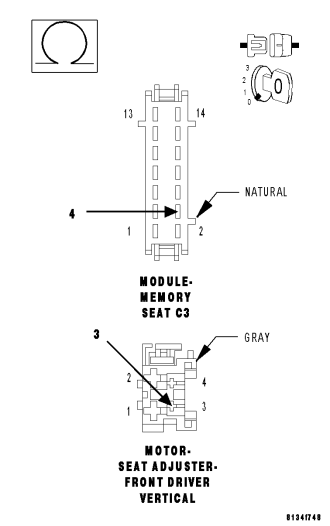

6. CHECK THE (G494) DRIVER SEAT FRONT VERTICAL SENSOR GROUND FOR AN OPEN



Measure the resistance of the (G494) Driver Seat Front Vertical Sensor Ground circuit at the Driver Front Vertical Seat Adjuster Motor connector to the C3 connector.

Is the resistance above 1.0 ohm?

Yes


No

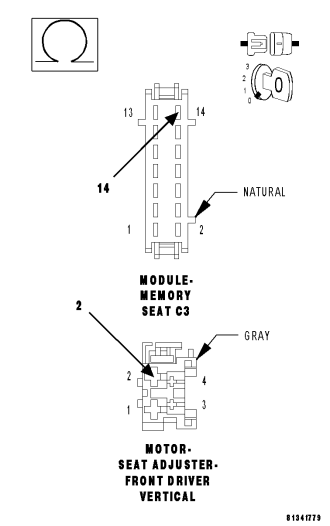

7. CHECK THE (P119) DRIVER SEAT FRONT VERTICAL UP DRIVER WIRE FOR AN OPEN



Disconnect the Memory Seat Module C3 connector.

NOTE: Check connectors – Clean and repair as necessary.


Measure the resistance of the (P119) Driver Seat Front Vertical Up Driver circuit at the Driver Front Vertical Seat Adjuster Motor connector to the C3 connector.

Is the resistance above 1.0 ohm?

Yes


No

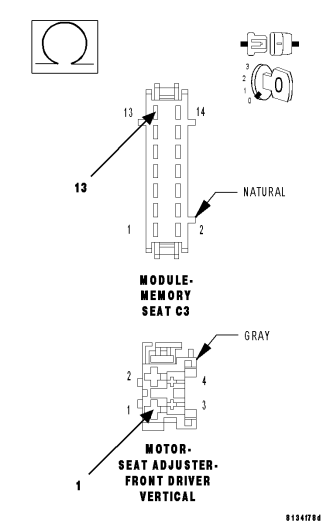

8. CHECK THE (P121) DRIVER SEAT FRONT VERTICAL DOWN DRIVER FOR AN OPEN



Measure the resistance of the (P121) Driver Seat Front Vertical Down Driver circuit at the Driver Front Vertical Seat Adjuster Motor connector to the C3 connector.

Is the resistance above 1.0 ohm?

Yes


No
