B185F-PASSENGER WINDOW CONTROL CIRCUIT LOW - PDM

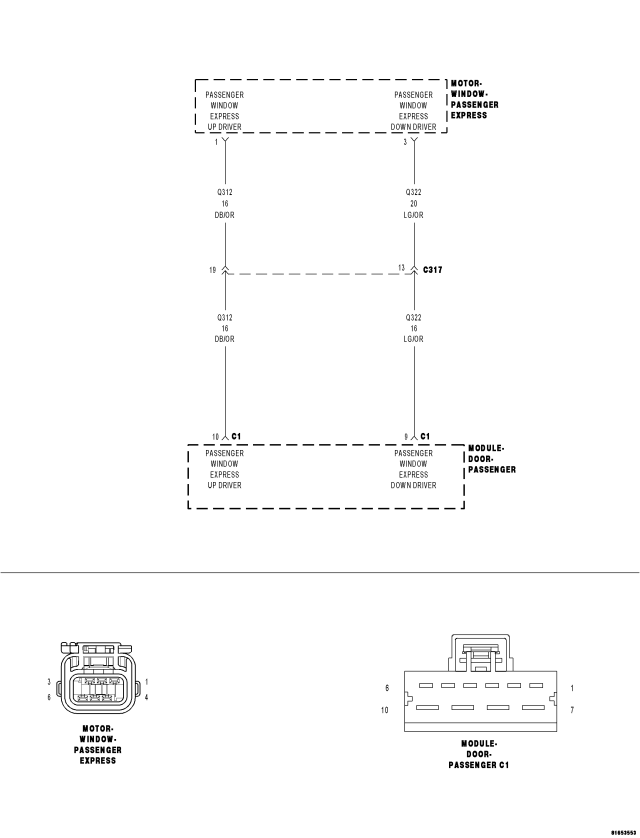

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Whenever the module is awake.
- Set Condition:
When the Passenger Window Driver Up circuit is grounded during a window up movement command, this code will set.
| Possible Causes |
| (Q312) PASSENGER WINDOW EXPRESS UP DRIVER CIRCUIT SHORT TO GROUND |
| (Q322) PASSENGER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORTED TO THE (Q312) PASSENGER WINDOW EXPRESS UP DRIVER CIRCUIT |
| WINDOW MOTOR SHORTED |
| PASSENGER DOOR MODULE (PDM) |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
With the scan tool, record and erase DTC's
Try to operate the Passenger Window up and down several times.
Wait 30 seconds.
With the scan tool, read DTC's.
Does the scan tool display B185F–PASSENGER WINDOW CONTROL CIRCUIT LOW?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. WINDOW MOTOR SHORTED
With the scan tool, erase DTC's.
Turn the ignition off.
Disconnect the Passenger Window Motor connector.
Turn the ignition on.
Operate the passenger window switch up and down several times.
With the scan tool, read DTC's.
Does the scan tool display B185F–PASSENGER WINDOW CONTROL CIRCUIT LOW?
No
- Replace the Window Motor in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Go To 3
3. (Q312) PASSENGER WINDOW EXPRESS UP DRIVER CIRCUIT SHORT TO GROUND
Measure the resistance between Ground and the (Q312) Passenger Window Express Up Driver circuit.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q312) Passenger Window Express Up Driver circuit for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go TO 4
4. (Q322) PASSENGER WINDOW EXPRESS DOWN DRIVER CIRCUIT SHORT TO (Q312) PASSENGER WINDOW EXPRESS UP DRIVER CIRCUIT

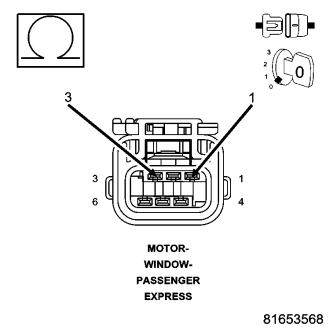

Measure the resistance between the (Q322) Passenger Window Express Down Driver circuit and the (Q312) Passenger Window Express Up Driver circuit.
Is the resistance below 1000.0 ohms?
Yes
- Repair the (Q322) Passenger Window Express Down Driver circuit for a short to the (Q312) Passenger Window Express Up Driver circuit.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Passenger Door Module.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
