INSTALLATION
LAMP - FRONT

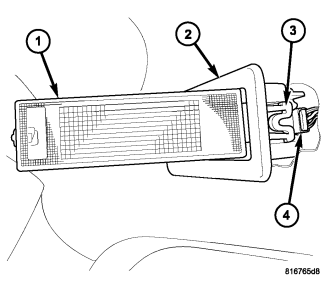

1. Insert the fixed retainer on the switch end of the reading lamp housing (2) into the mounting hole in the headliner.
2. Reconnect the wire harness connector (4) to the connector receptacle on the back of the lamp.
3. With the lens (1) positioned perpendicular to the housing, slide the switch end of the housing into the mounting hole far enough to engage the lens hinge/retainer (3) into the opposite side of the hole in the headliner.
4. Gently and evenly press the lens hinge/retainer end of the lamp into the mounting hole until the bezel of the lamp housing is flush with the headliner.
5. Swing the switch end of the lens (2) back into position against the lamp housing (1), then using hand pressure press on the switch end of the lens firmly and evenly until it snaps into the housing.
6. Reconnect the battery negative cable.
BULB - FRONT
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

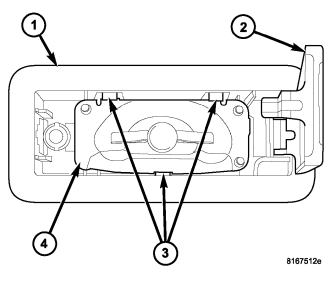

1. Align the base of the bulb (1) with the bulb holder (2) within the reading lamp housing.
2. Push the bulb into the holder until the base is fully seated.
3. Starting at the hinge end of the lamp, position the reflector (4) over the three locating pins within the lamp housing (1).
4. Using hand pressure, push the reflector into the housing until each of the three retainers (3) that secure it are fully engaged.
5. Swing the switch end of the lens (2) back into position against the lamp housing (1), then using hand pressure press on the switch end of the lens firmly and evenly until it snaps into the housing.
6. Reconnect the battery negative cable.
BULB - SECOND ROW
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
NOTE: The second row reading lamps are integral to the grab handle in the headliner on the inner roof side rail over each outboard second row seating position.

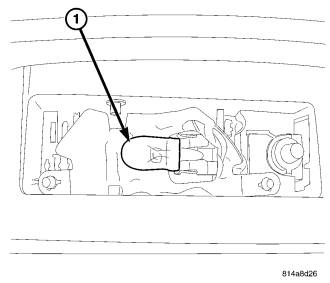

1. Align the base of the bulb (1) with the bulb holder within the reading lamp housing.
2. Push the bulb into the holder until the base is fully seated.
3. Insert the large tab on the rear end of the lamp lens (1) into the rear of the lamp housing.
4. Using hand pressure, push the small tab at the upper front corner of the lens (2) rearward and inward towards the lamp housing until it snaps into place.
5. Reconnect the battery negative cable.
LAMP - THIRD ROW

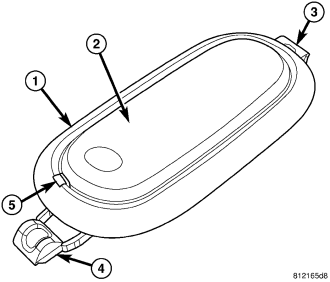

1. Position the reading lamp unit (1) to the mounting hole in the headliner.
2. Reconnect the wire harness connector to the connector receptacle on the back of the lamp.
3. Insert the fixed retainer (4) on the notched end of the lamp housing up into one side of the mounting hole in the headliner.
4. Slide the notched end of the housing into the mounting hole far enough to engage the lens hinge/retainer (3) into the opposite side of the hole in the headliner.
5. Gently and evenly press the lens hinge/retainer end of the lamp upward into the mounting hole until the bezel of the lamp housing is flush with the headliner.
6. Swing the notched end of the lamp lens (2) up into position against the lamp housing, then press on the lens firmly and evenly until it snaps into the housing.
7. Reconnect the battery negative cable.
BULB - REAR
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.

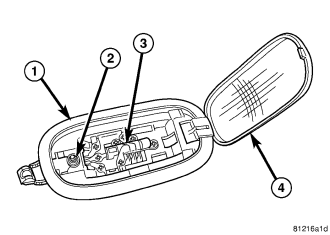

1. Align the ends of the bulb (3) with the two bulb holders within the rear dome lamp housing (1).
2. Carefully press the bulb firmly and evenly into the bulb holders until it snaps into place.
3. Swing the notched end of the lens (4) up into position against the housing, then press upward on the lens firmly and evenly until it snaps into the housing.
4. Reconnect the battery negative cable.
