BEARINGS-VARI-LOK DIFFERENTIAL CASE
REMOVAL

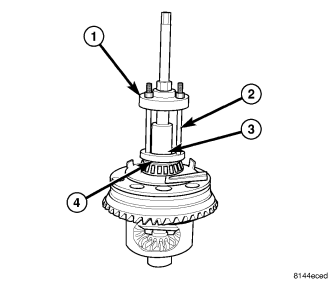

1. Install Plug SP 3289 (3) Into the differential axle shaft hole.
2. Remove differential case bearings with Puller 6444 (1), Puller Rods 6444-4 (2) and Puller Flange 6444-1(4). Position puller on the differential.
3. Position Puller (1) Jaws 9639 (2) around the case bearing and puller flange.
4. Position Puller (1) Collar 6444-8 (2) around the puller jaws.
5. Tighten the puller nut and remove differential case bearing.
INSTALLATION

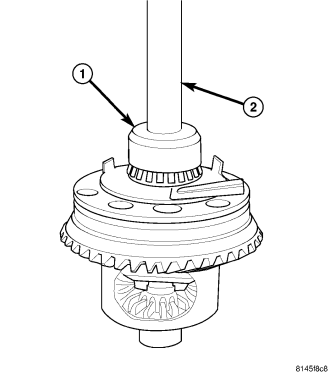

1. Install differential case bearing with Installer C-4340 (1) and Handle C-4171 (2).
CAUTION: Vari-lok®, plenum must be seated against the differential case, prior to installing the ring gear side differential bearing. Failure to follow these instructions will damage the Vari-lok® plenum.
