PINION SEAL
REMOVAL
1. With vehicle in neutral, position vehicle on hoist.

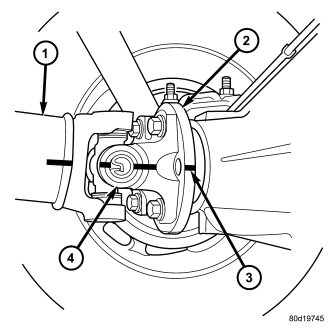

2. Mark a reference line across the axle flange (3) and propeller shaft flange (4).
3. Remove propeller shaft
4. Remove brake calipers and rotors to prevent any drag.
5. Rotate flange three or four times and verify flange rotates smoothly.

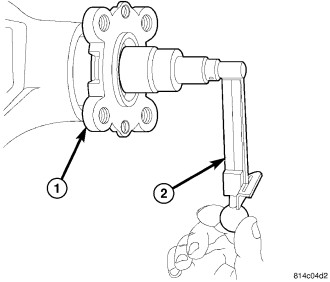

6. Measure torque to rotating pinion flange (1) with a inch pound torque wrench (2). Record reading for installation reference.
7. Hold pinion flange with Wrench C-3281 and remove pinion nut and washer.
8. Mark line on pinion shaft and flange for installation reference.
9. Remove flange with two jaw puller.
10. Remove pinion seal with a seal puller.
INSTALLATION
1. Apply a light coating of gear lubricant on the lip of pinion seal.
2. Install new pinion seal with Installer C-3972A (1) and Handle C-4171 (2).
3. Position flange on pinion shaft with the reference marks aligned.
4. Install flange on pinion shaft with Installer C-3718 and Wrench C-3281.
5. Install pinion washer and a new pinion nut. The convex side of the washer must face outward.
6. Hold flange with Wrench C-3281and tighten pinion nut to 285 N·m (210 ft. lbs.). Rotate pinion several revolutions to ensure bearing rollers are seated.
NOTE: Do not exceed the minimum tightening torque 285 N·m (210 ft. lbs.) when installing the companion flange retaining nut at this point.
7. Rotate pinion several times to ensure bearings are seated.
8. Measure pinion torque to rotate (1) with an inch pound torque wrench (2). Pinion torque to rotate should be equal to recorded reading plus an additional 0.56 N·m (5 in. lbs.) .
If pinion torque to rotate is low, tighten pinion nut in 6.8 N·m (5 ft. lbs.) increments until pinion torque to rotating is achieved.
CAUTION: Never loosen pinion nut to decrease pinion bearing rotating torque. If pinion torque to rotating is exceeded, a new collapsible spacer must be installed. Failure to follow these instructions will result in damage to the axle.
9. Install propeller shaft.
10. Install rear brake components.
