INSTALLATION
FRONT

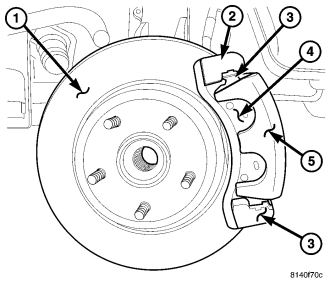

1. Install the rotor (1) on hub studs.

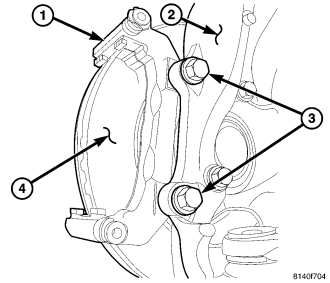

2. Install the caliper adapter (1) on the knuckle (2). Install adapter bolts (3) and tighten to 169 N·m (125 ft. lbs.).
NOTE: Caliper slide pins should be free from debris and lightly lubricated.

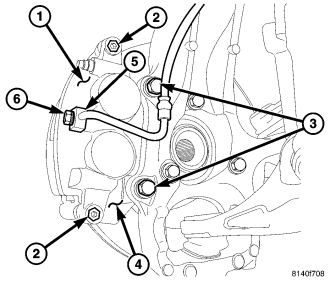

3. Install the caliper (1) to the caliper adapter (4) and tighten the bolts to 44 N·m (32 ft. lbs.).
4. Gently lift one end of the slide pin boot to equalize air pressure, then release the boot and verify that the boot is fully covering the slide pin.
5. Install wheel and tire assembly.
6. Remove support and lower the vehicle.
7. Pump brake pedal to seat caliper pistons and brake pads. Do not move vehicle until firm brake pedal is obtained.
REAR

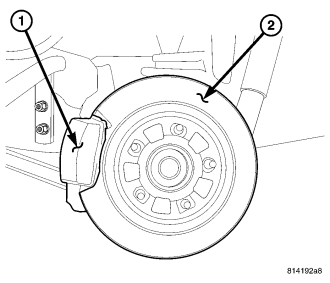

1. Install rotor on axle studs.
2. Install the caliper assembly.
3. Install caliper slide bolts (4) and tighten to 44 N·m (32 ft. lbs.).
4. Install wheel and tire assembly.
5. Remove support and lower the vehicle.
6. Pump brake pedal until caliper pistons and brake shoes are seated.
