INSTALLATION

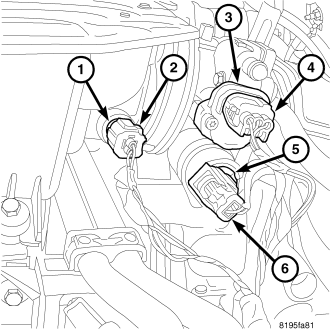

3.7L
1. Check condition of sensor o-ring (2).
2. Clean sensor mounting hole in intake manifold.
3. Position sensor into intake manifold and rotate clockwise until past release tab.
4. Install electrical connector.

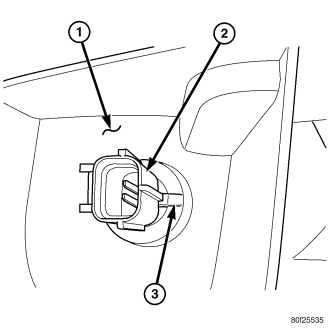

4.7L V-8
1. Check condition of sensor o-ring (2).
2. Clean sensor mounting hole.
3. Position sensor (1) into base and rotate clockwise until past release tab (3).
4. Install electrical connector (2).
5.7L
1. Check condition of sensor o-ring.
2. Clean sensor (2)mounting hole in intake manifold.
3. Position sensor into intake manifold and rotate clockwise until past release tab.
4. Install electrical connector.
