SPECIFICATIONS
STRUCTURAL ADHESIVE LOCATIONS
| DESCRIPTION |
FIGURE |

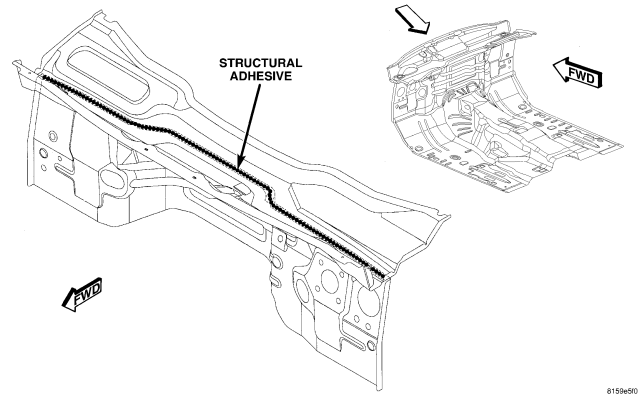

| LOWER PLENUM/DASH PANEL |
LOWER PLENUM/DASH PANEL |

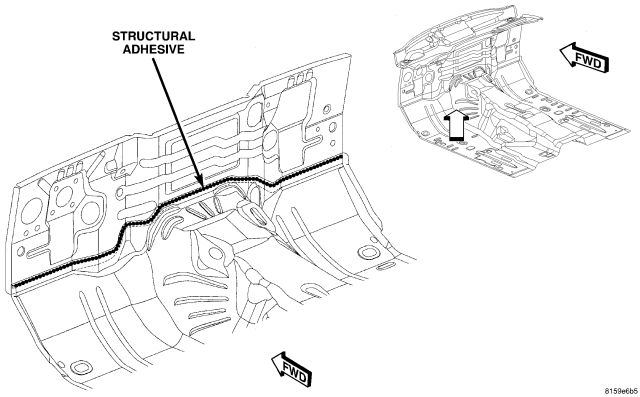

| DASH PANEL/FRONT FLOOR PAN |
DASH PANEL/FRONT FLOOR PAN |

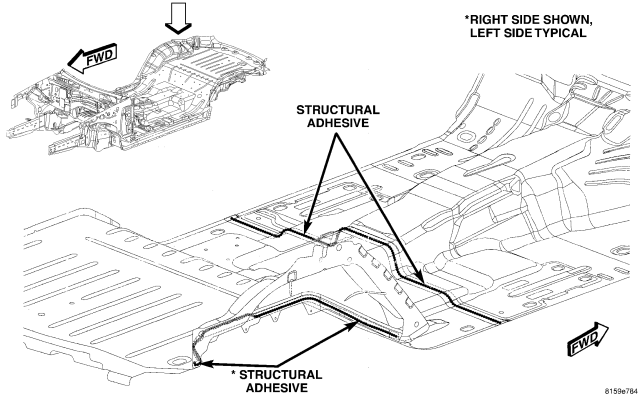

| REAR FLOOR & LADDER (1 OF 2) |
REAR FLOOR & LADDER (1 OF 2) |
| REAR FLOOR & LADDER (2 OF 2) |
REAR FLOOR & LADDER (2 OF 2) |

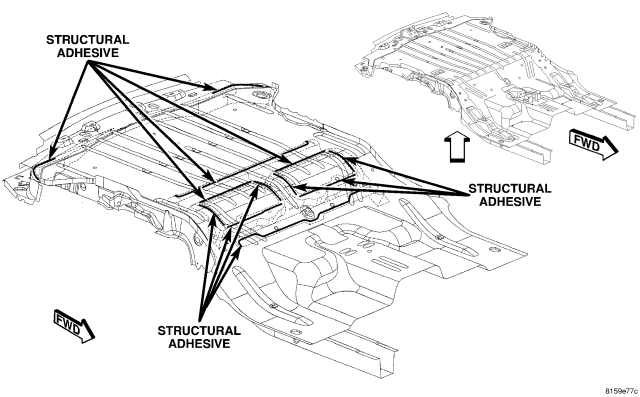

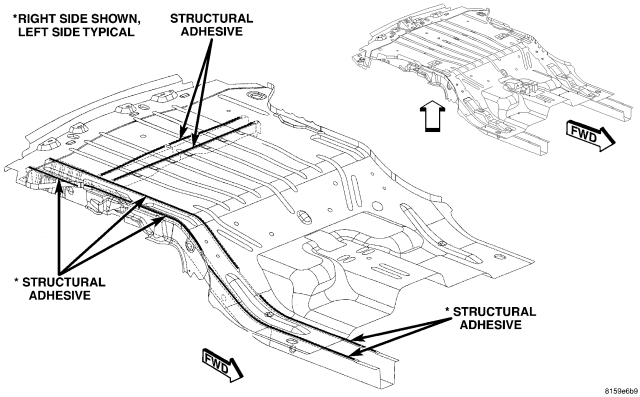

| FRONT & REAR FLOOR PAN |
FRONT & REAR FLOOR PAN |

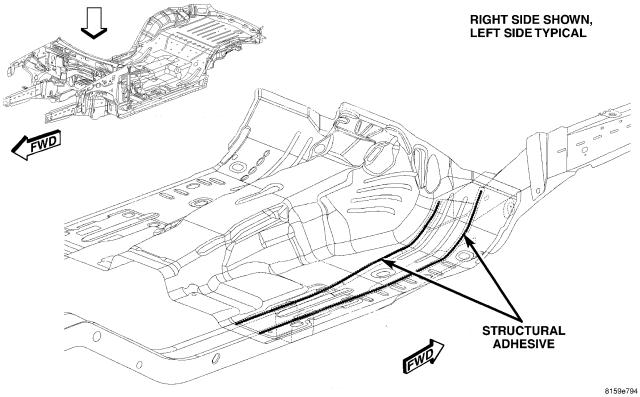

| FRONT FLOOR PAN |
FRONT FLOOR PAN |

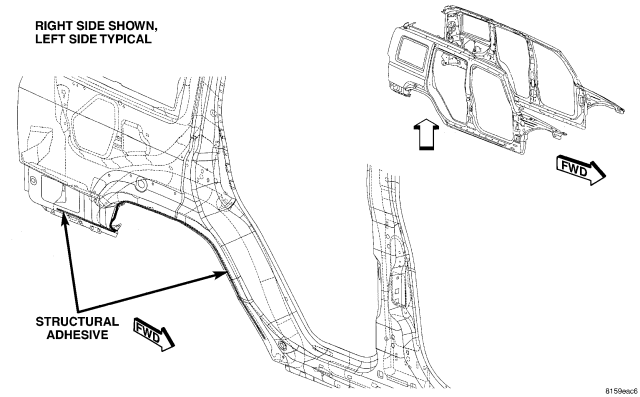

| OUTER BODY SIDE APERTURE/TAIL LAMP |
OUTER BODY SIDE APERTURE/TAIL LAMP |

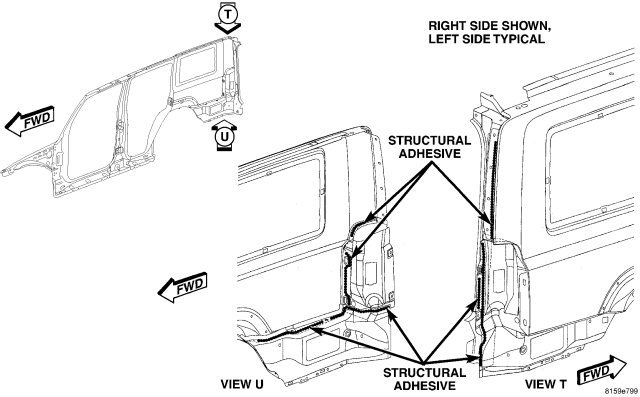

| INNER/OUTER BODY SIDE APERTURE - REAR |
INNER/OUTER BODY SIDE APERTURE - REAR |

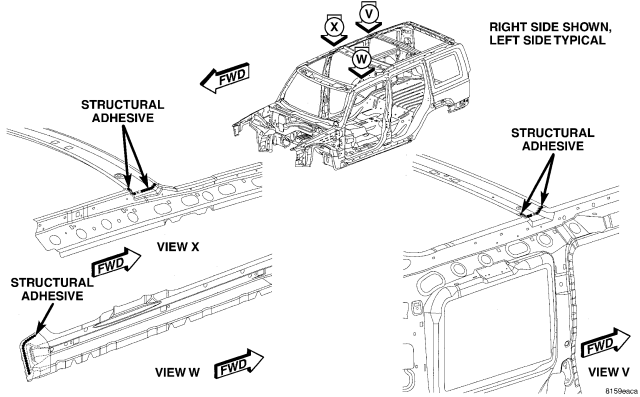

| ROOF BOWS/BODY SIDE SILL |
ROOF BOWS/BODY SIDE SILL |

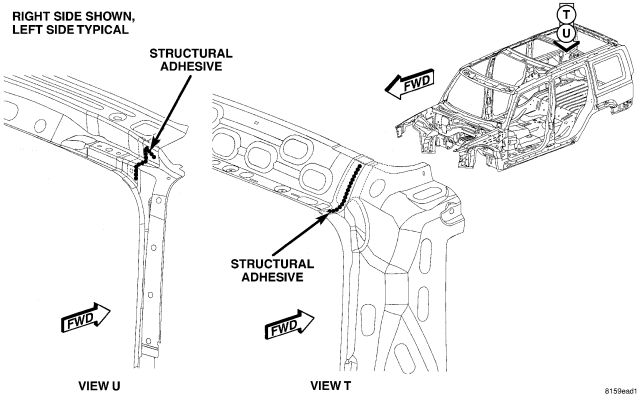

| LIFTGATE HEADER/D-PILLAR |
LIFTGATE HEADER/D-PILLAR |

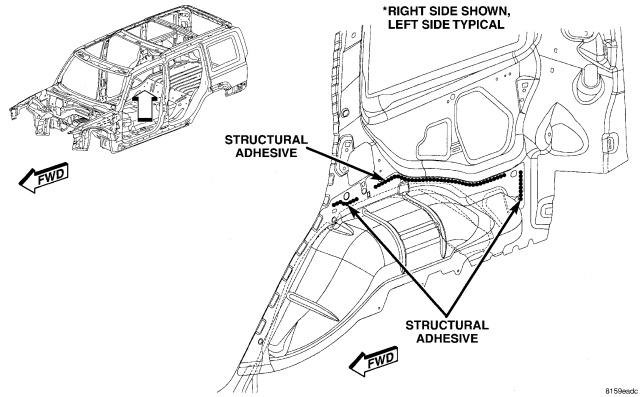

| INNER RIGHT REAR WHEELHOUSE |
INNER RIGHT REAR WHEELHOUSE |

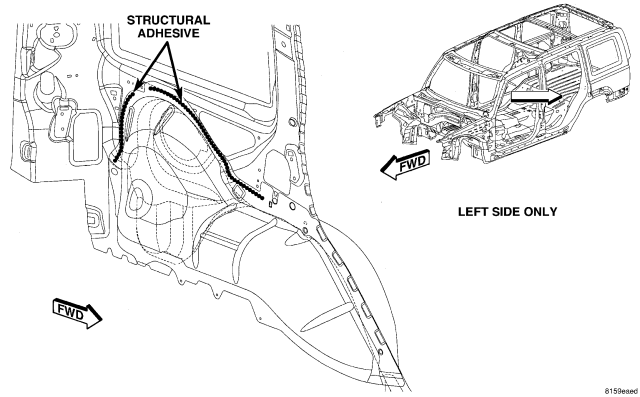

| INNER LEFT REAR WHEELHOUSE |
INNER LEFT REAR WHEELHOUSE |

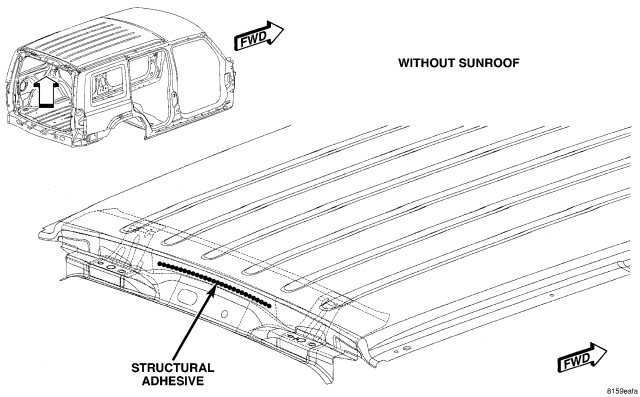

| LIFTGATE HEADER/ROOF W/O SUNROOF |
LIFTGATE HEADER/ROOF W/O SUNROOF |

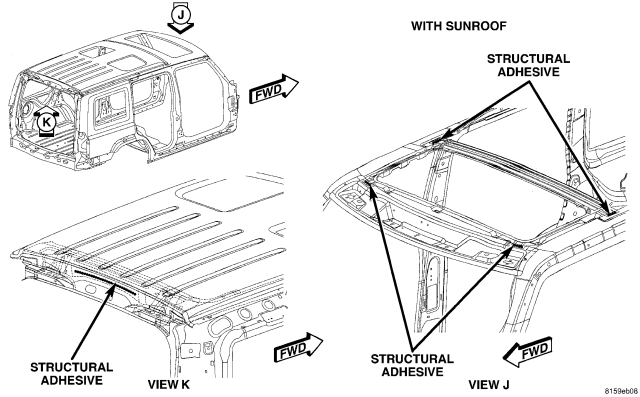

| ROOF BOWS/LIFTGATE HEADER/ROOF W/SUNROOF |
ROOF BOWS/LIFTGATE HEADER/ROOF W/SUNROOF |
| LOWER PLENUM/DASH PANEL |
| DASH PANEL/FRONT FLOOR PAN |
| REAR FLOOR & LADDER (1 OF 2) |
| REAR FLOOR & LADDER (2 OF 2) |
| FRONT & REAR FLOOR PAN |
| FRONT FLOOR PAN |
| OUTER BODY SIDE APERTURE/TAIL LAMP |
| INNER/OUTER BODY SIDE APERTURE - REAR |
| ROOF BOWS/BODY SIDE SILL |
| LIFTGATE HEADER/D-PILLAR |
| INNER RIGHT REAR WHEELHOUSE |
| INNER LEFT REAR WHEELHOUSE |
| LIFTGATE HEADER/ROOF W/O SUNROOF |
| ROOF BOWS/LIFTGATE HEADER/ROOF W/SUNROOF |
