DEFLECTOR-WIND
REMOVAL
1. Open the sunroof fully.

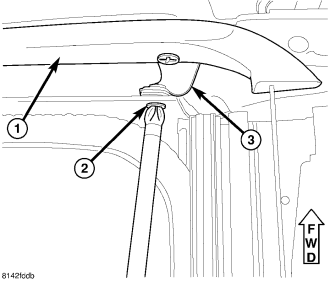

2. Remove the strap screws (2) from the beam area release the strap (3).

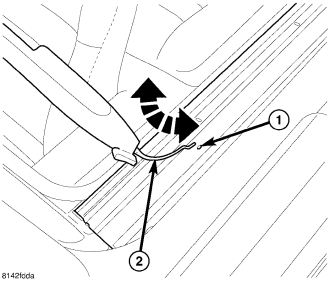

3. Rotate the deflector up and remove springs (2) from the holes in the frame (1).
INSTALLATION
1. Position the deflector spring arms (2) into the holes of the frame (1).
2. Rotate the deflector down, attach the straps (3) and install the strap screws (2) into the front beam.
3. Verify sunroof operation and alignment.
