HOSE-DRAIN
REMOVAL
FRONT HOSES
1. Remove headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).

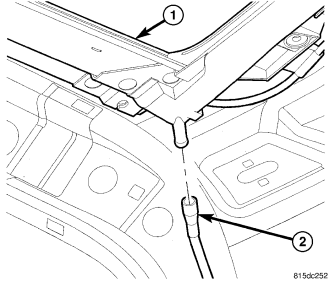

2. Disconnect the drain hose (2) from the sunroof housing (1).

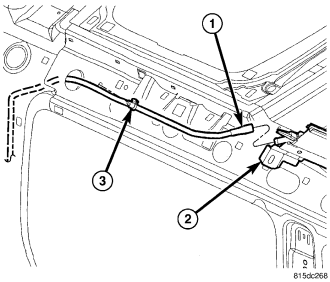

3. Separate the lower tube from the grommet in the body (3).
4. Drain any liquid from hose connection, if necessary.

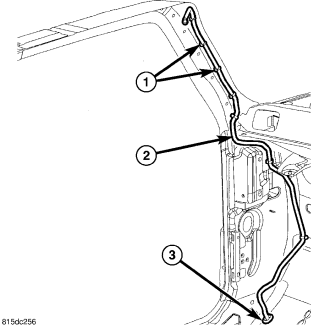

5. Release all of the clips (1) and remove the tube (2).
REAR HOUSING HOSE
1. Remove headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - REMOVAL).
2. Disconnect the drain hose (1) from the sunroof housing (2).
3. Drain any liquid from hose connection, if necessary.

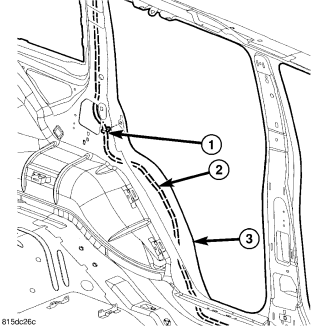

4. Release the push pin fasteners (1) and remove the tube (2) from the body c-pillar cavity (3).
INSTALLATION
FRONT HOSES
1. Position the lower portion through the grommet in the body (3).
2. Position the hose (2) into all of the support clips (1).
3. Connect the new drain hose (2) to the sunroof housing (1) and test drainage.
4. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION) .
REAR HOUSING HOSE
1. Install the rear hose (2) into the body c-pillar (3) and seat the push pin fasteners (1) fully.
2. Position the lower portion through the grommet in the body.
3. Connect the new drain hose (1) to the sunroof housing (2) and test drainage.
4. Install headliner (Refer to 23 - BODY/INTERIOR/HEADLINER - INSTALLATION) .
