INSTALLATION

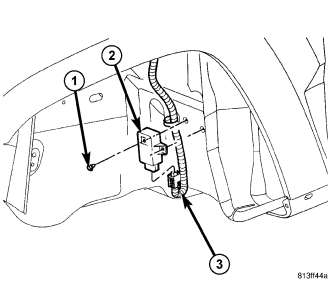

FRONT TRANSPONDER
1. Install the transponder (2) to the vehicle and reconnect the electrical connector (3).
2. Install the mounting screw (1) for the transponder (2) Tighten to 3 N·m (25 in. lbs.).
3. Install the wheel well housing cover (2).
4. Lower the vehicle.

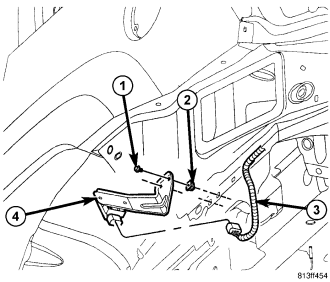

REAR TRANSPONDER
1. Install the transponder (4) to the vehicle and reconnect the electrical connector (3).
2. Install the mounting screw (1) for the transponder (4) 3 N·m (25 in. lbs.).
3. Lower the vehicle.
