REMOVAL

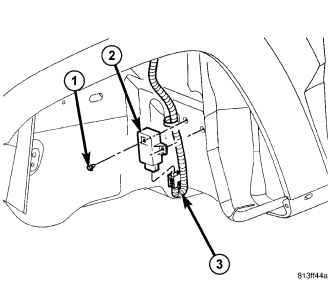

FRONT TRANSPONDER
1. Raise and support the vehicle.
2. Remove the wheel well housing cover (2).
3. Remove the mounting screw (1) for the transponder (2).
4. Disconnect the electrical connector (3) and remove the transponder (2) from the vehicle.
REAR TRANSPONDER
1. Raise and support the vehicle.
2. Remove the mounting screw (1) for the transponder (4).
3. Disconnect the electrical connector (3) and remove the transponder (4) from the vehicle.
