INSTALLATION
FRONT

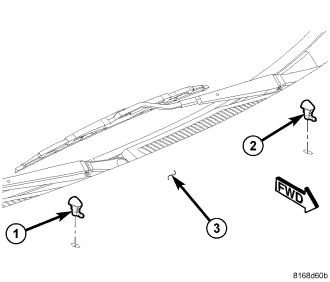

1. Position the front washer nozzle (1 or 2) to the mounting hole on the outside of the hood panel (3).
2. Align the anti-rotation tab of the nozzle with the anti-rotation notch in the mounting hole.
3. Using hand pressure, push firmly and evenly on the top of the nozzle until the integral latches lock into place on the underside of the hood.

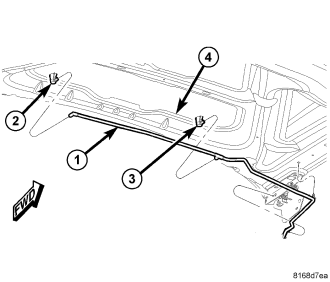

4. From the underside of the hood, reconnect the washer hose (1) to the barbed nipple of the nozzle (2 or 3).
5. Reinstall the push-in retainers that secure the hood silencer pad to the inner hood reinforcement (4).
REAR

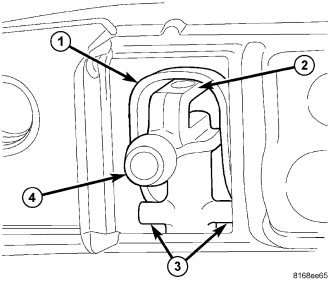

1. Position the nozzle into the receptacle (1) integral to the back of the CHMSL lens with the alignment pins (3) on the nozzle engaged in the saddle-like formations on each lower side wall of the receptacle.
2. Using hand pressure, press the nozzle nipple (4) upward firmly and evenly into the receptacle until the integral latch feature (2) is fully engaged on the back of the CHMSL lens.
3. Reconnect the rear washer supply hose to the barbed nipple of the nozzle.
4. Reinstall the CHMSL onto the liftgate outer panel. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/CENTER HIGH MOUNTED STOP LAMP - INSTALLATION).
5. Reconnect the battery negative cable.
