REMOVAL
FRONT

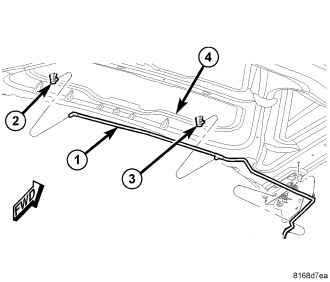

1. From the underside of the hood, remove the push-in retainers that secure the hood silencer pad to the inner hood reinforcement (4) as necessary to access the front washer nozzle (2 or 3) hose connections.
2. Disconnect the hose (1) from the barbed nipple of the front washer nozzle.

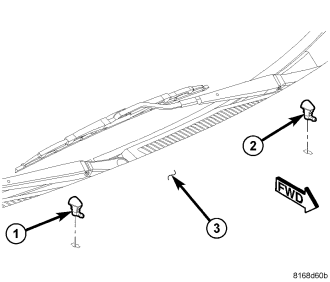

3. From the underside of the hood, release the integral latches of the front washer nozzle (1 or 2) and push the nozzle out through the mounting hole toward the top side of the hood (3).
4. Remove the nozzle from the top of the hood panel.
REAR
1. Disconnect and isolate the battery negative cable.
2. Remove the Center High-Mounted Stop Lamp (CHMSL) from the liftgate outer panel. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/CENTER HIGH MOUNTED STOP LAMP - REMOVAL).

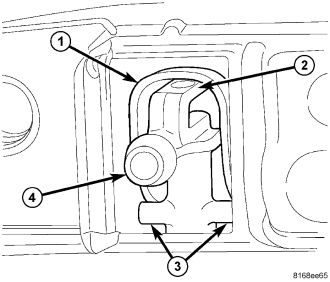

3. Disconnect the rear washer supply hose from the barbed nipple (4) on the back of the rear washer nozzle.
4. From the back of the CHMSL housing, depress the integral latch feature (2) of the nozzle, while pushing downward on the nozzle nipple.
5. Disengage the nozzle alignment pins (3) from the receptacle (1) integral to the back of the CHMSL lens and remove the nozzle.
