B2317-WIPER HI/LOW CONTROL CIRCUIT LOW

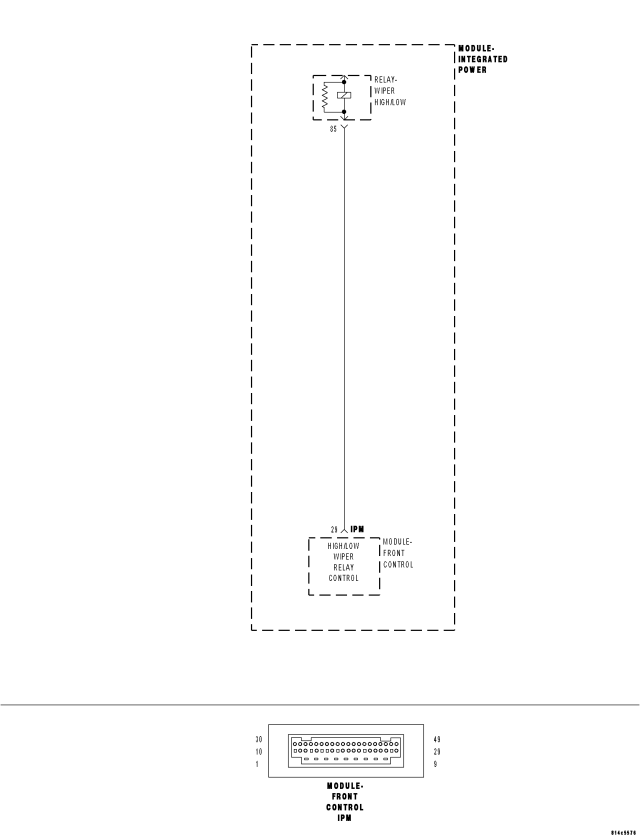

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the ignition on.
- Set Condition:
- When the FCM detects a short/low condition.
| Possible Causes |
| (A5) FUSED B+ CIRCUIT OPEN |
| WIPER HI/LOW RELAY |
| FRONT CONTROL MODULE |
| INTEGRATED POWER MODULE |
Diagnostic Test
1. (A5) FUSED B+ CIRCUIT OPEN
NOTE: Check all fuses and circuit breakers before proceeding with the diagnosis of this DTC.
Turn the ignition on.
Remove the Wiper HI/LOW relay.
Measure the voltage at cavity 86 of the Wiper HI/LOW relay.
Is the voltage above 10.0 volts?
Yes
- Go To 2
No
- Check the (A5) Fused B+ circuit for an open.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. WIPER HI/LOW RELAY
Turn the ignition off.
Replace the Wiper HI/LOW relay with a known good relay.
Turn the ignition on.
With the Scan Tool, clear all FCM DTC's.
Turn the Wipers ON then OFF.
With the Scan Tool, read the Wiper DTC's.
Does the Scan Tool read: B2317-WIPER HI/LOW CONTROL CIRCUIT LOW?
Yes
- Go To 3
No
- Replace the Wiper HI/LOW relay.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. INTEGRATED POWER MODULE
Turn the ignition off.
Disconnect the FCM from the IPM.
Measure the voltage on cavity 29 (Wiper HI/LOW Relay Control) of the IPM.
Is the voltage above 10.0 volts?
Yes
- Replace the FCM in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the IPM in accordance with the service information.
- Perform the BODY VERIFICATION TEST — VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
