MUFFLER
REMOVAL
WARNING: The normal operating temperature of the exhaust system is very high. Therefore, never work around or attempt to service any part of the exhaust system until it is cooled. Special care should be taken when working near the catalytic converter. The temperature of the converter rises to a high level after a short period of engine operating time.
NOTE: When replacement is required on any component of the exhaust system, you must use original equipment parts (or their equivalent).
1. Raise vehicle on hoist and apply penetrating oil to band clamp nut and bolt of component being removed.
NOTE: Do not use petroleum-based lubricants when removing/installing muffler or exhaust pipe isolators (3) as it may compromise the life of the part. A suitable substitute is a mixture of liquid dish soap and water.

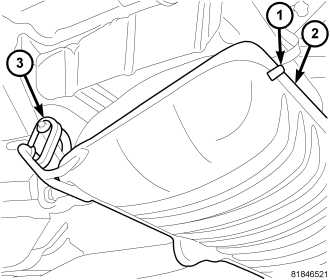

2. Remove exhaust system ground strap (1) at rear of I-Pipe/Muffler assembly (2).
3. Loosen band clamp and remove support isolators (3) at I-Pipe/Muffler assembly (2). Remove I-Pipe/Muffler assembly (2) from catalytic converter.
4. Clean ends of pipes and muffler to assure mating of all parts. Discard broken or worn isolators, rusted or overused clamps, supports, and attaching parts.
INSTALLATION
When assembling exhaust system do not tighten clamp until components are aligned and clearances are checked.
1. Install the I-Pipe/Muffler assembly to catalytic converter and the isolator supports to the underbody.
2. Working from the front of system; align each component to maintain position and proper clearance with underbody parts. Tighten band clamp to 55 N·m (40 ft. lbs.).

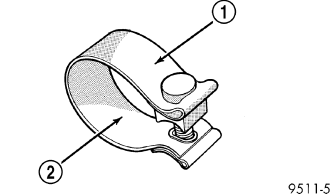

CAUTION: Band clamps should never be tightened such that the two sides of the clamps are bottomed out against the center hourglass shaped center block. Once this occurs, the clamp band has been stretched and has lost its clamping force and must be replaced.
To replace the band clamp; remove the nut and peel back the ends of the clamp until spot weld breaks. File or grind remaining weld material until pipe surface is smooth.
NOTE: Maintain proper clamp orientation when replacing with new clamp.
3. Connect the exhaust system ground strap.
4. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
5. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
