SHIELDS-HEAT
DESCRIPTION

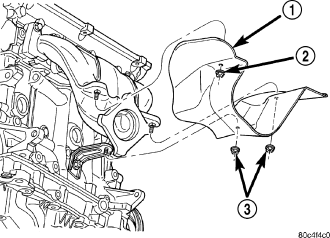

Heat shields (1), are needed to protect both the vehicle and the environment from the high temperatures developed in the vicinity of the catalytic converter.
CAUTION: Avoid application of rust prevention compounds or undercoating materials to exhaust system floor pan heat shield. Light over-spray near the edges is permitted. Application of coating will greatly reduce the efficiency of the heat shields resulting in excessive floor pan temperatures and objectionable fumes.
REMOVAL
1. Raise vehicle on hoist.
2. Remove fasteners attaching heat shield.
3. Remove heat shield(s)
INSTALLATION
1. Position heat shield(s) to underbody.
2. Install heat shield fasteners.
3. Inspect heat shield to exhaust system clearances and adjust as necessary.
4. Lower vehicle.
5. Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
6. Check the exhaust system for contact with the body panels. Make the necessary adjustments, if needed.
