CROSSMEMBER-FRONT FORE/AFT
REMOVAL
1. Raise and support the vehicle, (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE).
2. Remove the four wheel well screws.

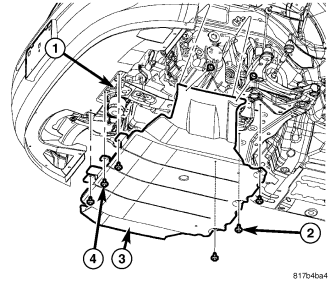

3. If equipped, remove the three front screws (4), the three rear screws (2) and one push pin fastener from the center of the belly pan.

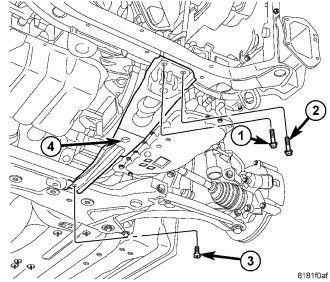

4. Remove the crossmember bolts (1, 2 and 3).

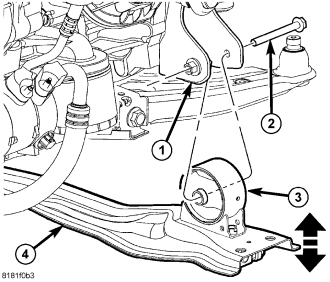

5. Remove the engine roll mount (3) through bolt (2) and remove the fore/aft crossmember (4).
INSTALLATION
1. Install the fore/aft crossmember and install the engine anti-roll mount (3) through bolt (2).
2. Install the bolts (1, 2 and 3), and tighten using the following sequence:
a. Tighten the bolt (1) to 78 N·m (58 ft. lbs.).
b. Tighten the bolt (2) to 78 N·m (58 ft. lbs.).
c. Tighten the bolt (3) to 129 N·m (95 ft. lbs.).
3. Tighten the bolt (2) to 65 N·m (48 ft. lbs.).
4. If equipped, install the belly pan.
5. Install the three front screws (4), the three rear screws (2) and on push pin fastener into the center of the belly pan.
