FASCIA-FRONT
REMOVAL

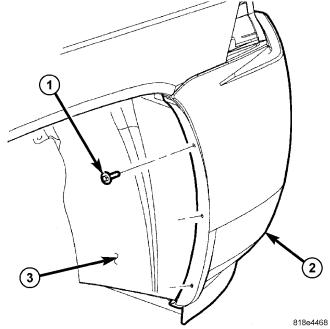

1. Remove the fascia (2) to splash shield screws (1).

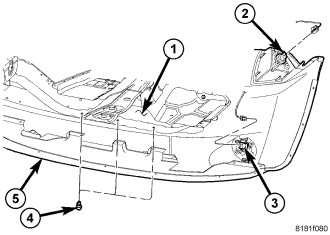

2. Remove the lower fasteners (4) and disconnect the electrical connectors (2 and 3).

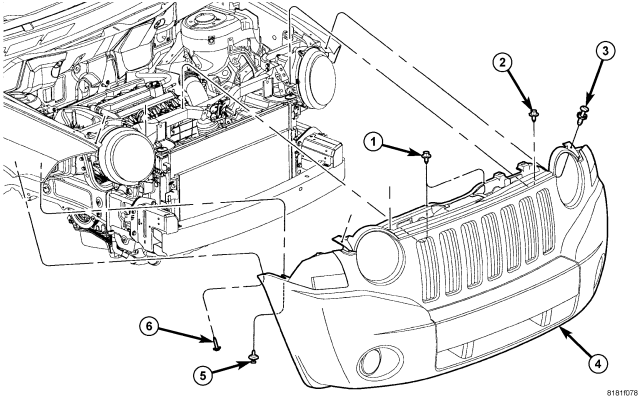

3. Remove the fasteners (1 and 2).
4. Remove the push pin fasteners (3).
5. Loosen the fasteners (5 and 6) and remove the fascia (4).
INSTALLATION
1. Install the fascia (4) onto the fasteners (5 and 6).
2. Install the fasteners (1 and 2).
3. Install the push pin fasteners (3).
4. Install the fasteners (4) and connect the electrical connectors (2 and 3).
5. Install the fascia (2) to splash shield screws (1).
