FASCIA-REAR
REMOVAL

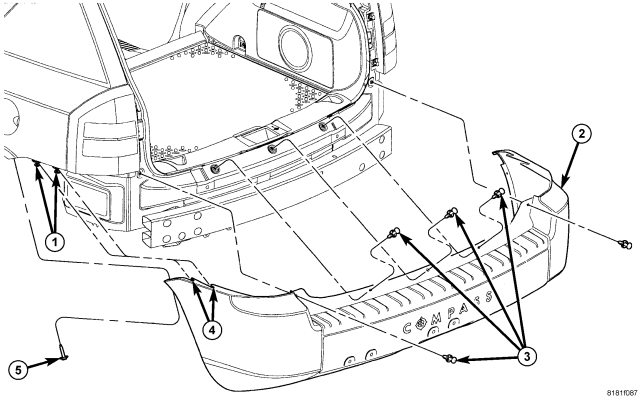

1. Remove the lower fasteners (3).

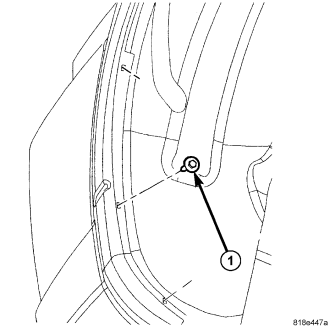

2. Remove the fascia to splash shield fasteners (1).
3. Loosen the fasteners (1 and 5)
4. Remove the push pin fasteners (3) and remove the fascia (2).
INSTALLATION
1. Install the fascia and line up the slots (4) with the screws (1 and 5) and seat fully.
2. Tighten the screws (1 and 5).
3. Install the push pin fasteners (3).

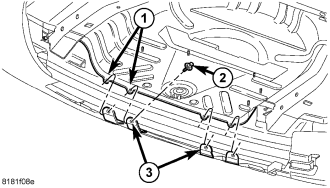

4. Install the lower fasteners (3).
5. Install the fascia to splash shield screws (1).
