REAR BUMPER REINFORCEMENT
REMOVAL
1. Remove rear fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR BUMPER - REMOVAL)

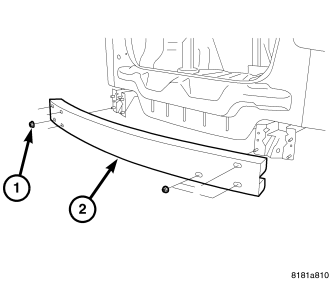

2. Remove seven bumper reinforcement nuts (1).
3. Remove bumper reinforcement (2).
INSTALLATION
1. Place bumper reinforcement (2) up to frame locations.
2. Install seven nuts (1) and tighten to 23 N·m (17 ft. lbs.).
3. Install fascia. (Refer to 13 - FRAME & BUMPERS/BUMPERS/REAR BUMPER - INSTALLATION)
