UNIVERSAL TRANSMITTER
DESCRIPTION

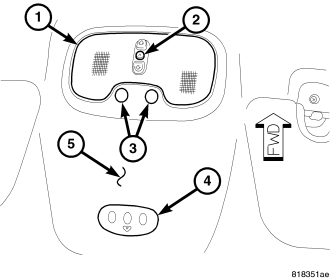

Some vehicles are equipped with a Universal Transmitter transceiver (4). The universal transmitter transceiver (4) is located in the headliner (5) just to the rear of the courtesy/reading lamps (1). The only visible component of the universal transmitter are the three transmitter push buttons. The three universal transmitter push buttons are identified with raised buttons and contain a transmit indicator that lights during operation and programming functions.
Each of the three universal transmitter push buttons controls an independent radio transmitter channel. Each of these three channels can be trained to transmit a different radio frequency signal for the remote operation of garage door openers, motorized gate openers, home or office lighting, security systems or just about any other device that can be equipped with a radio receiver in the 280 to 435 MegaHertz (MHz) frequency range for remote operation. The universal transmitter is capable of operating systems using either rolling code or non-rolling code technology. The system will not transmit operating signals if the Vehicle Theft Security System is armed.
The universal transmitter cannot be repaired, and if inoperative or damaged, the complete module assembly must be replaced.
OPERATION
The HomeLink® transceiver operates on a non-switched source of battery current so the unit will remain functional, regardless of the ignition switch position. For more information on the features, programming procedures and operation of the HomeLink® transceiver, see the owner's manual in the vehicle glove box.REMOVAL
1. Disconnect and isolate the battery negative cable.

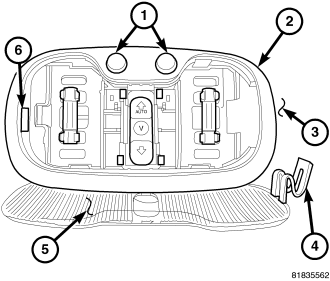

2. Remove the courtesy/reading lamp lens (5). Insert a suitable flat bladed tool into the slot (6) in the courtesy/reading lamp assembly (2). Pivot the lens down and to the left to release the holding tab (4). Remove the lamp assembly from the headliner (3).
3. Using an appropriate flat bladed tool, remove the universal transmitter button trim bezel (4).
4. Working through the courtesy/reading lamp hole in the headliner, pull the universal transmitter module (1) forward and down through the headliner (2).
5. Disconnect the electrical connector.
6. Remove the universal transmitter module from the vehicle.
INSTALLATION

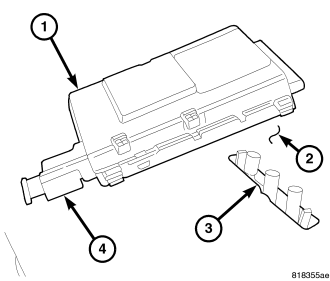

1. Position the universal transmitter module (1) into the vehicle.
2. Connect the electrical connector (4).
3. Working through the courtesy/reading lamp hole in the headliner (2), insert the universal transmitter module up into place over the cut out for the button bezel (3).

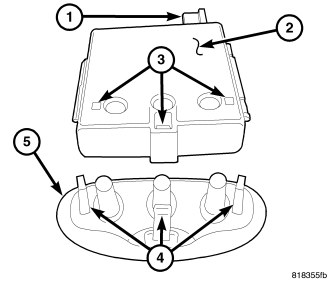

4. Position the universal transmitter module (2) so that the mounting tabs (4) on the button bezel (5) are aligned with the module slots.
5. Holding the module in place push the universal transmitter button bezel through the headliner until the mounting tabs are securely engaged with the module.
6. Position the courtesy/reading lamp assembly (2) into the headliner (3).
7. Insert the mounting tab (4) on the lamp lens (5) into the right side of the lamp assembly and pivot the lens up until it snaps securely in place.
8. Connect the battery negative cable.
