ANTENNA - NAVIGATION
REMOVAL

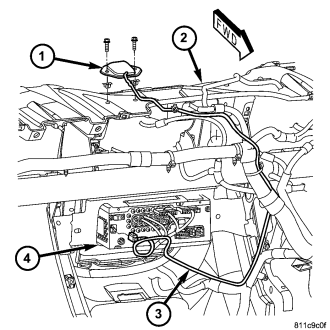

1. Disconnect and isolate the battery negative cable.
2. Remove the instrument panel top cover (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL).
3. Remove the radio (4) (Refer to 8 - ELECTRICAL/AUDIO/RADIO - REMOVAL).
4. Remove the antenna (1) mounting fasteners
5. Remove antenna cable (3) from wire harness.
INSTALLATION
1. Position antenna cable (3) to wire harness. Secure into place.
2. Install antenna (1) mounting fasteners.
3. Install radio (4) (Refer to 8 - ELECTRICAL/AUDIO/RADIO - INSTALLATION).
4. Install instrument panel top cover (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - INSTALLATION).
5. Connect battery negative cable.
