RECEIVER-SATELLITE
DESCRIPTION

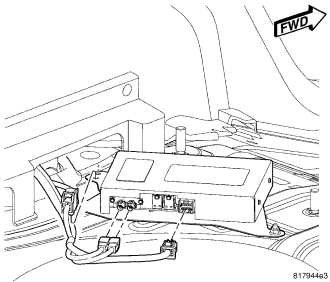

The satellite receiver module is located behind the spare tire. It is mounted to a bracket which is fastened to the trunk floor sheet metal.
OPERATION
The satellite receiver module receives signals from the roof mounted antenna and processes this information before it is sent to the radio. The module operates on both battery and accessory feed circuits and will operate with the ignition key in the RUN or ACCESSORY position only.
REMOVAL
NOTE:
If the owner's satellite service was active before the satellite receiver module was replaced the new satellite receiver module will have to be activated. The existing satellite receiver module will have to be deactivated before the replacement satellite receiver module can be activated.
To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following information available when activating a system:
- Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced
- ESN/SID of the replacement receiver
- Vehicle Owner's name and address
- VIN
The ESN/SID number can be obtained through the radio display by following the steps in the satellite radio owners manual.
The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the activation signal.
1. Disconnect and isolate the battery negative cable.
2. Remove the left rear quarter trim panel (Refer to 23 - BODY/INTERIOR/LEFT QUARTER TRIM PANEL - REMOVAL).
3. Remove the mounting bracket fasteners.
4. Disconnect the wire harness connectors.
5. Remove the module from the mounting bracket.
INSTALLATION
NOTE:
If the owner's satellite service was active before the satellite receiver module was replaced the new satellite receiver module will have to be activated. The existing satellite receiver module will have to be deactivated before the replacement satellite receiver module can be activated.
To activate Sirius satellite radio service, call Sirius at their toll-free number. Please have the following information available when activating a system:
- Electronic Serial Number / Sirius Identification Number (ESN/SID) of the unit to be replaced
- ESN/SID of the replacement receiver
- Vehicle Owner's name and address
- VIN
The ESN/SID number can be obtained through the radio display by following the steps in the satellite radio owners manual.
The vehicle must be outside with the audio system powered on, in the satellite radio mode, to receive the activation signal.
1. Position the module to the mounting bracket.
2. Connect wire harness connectors.
3. Install mounting bracket and fasteners.
4. Install the left rear quarter trim panel (Refer to 23 - BODY/INTERIOR/LEFT QUARTER TRIM PANEL - INSTALLATION).
5. Connect the battery negative cable.
