SPEAKER
REMOVAL
| Door Speakers | DOOR SPEAKERS |
| Instrument Panel Speaker | INSTRUMENT PANEL SPEAKER |
| Rear Speaker – Liftgate | REAR SPEAKER - LIFTGATE |
| Rear Subwoofer | REAR SUBWOOFER |
DOOR SPEAKERS

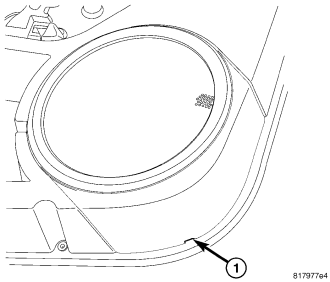

1. Using an approved flat blade tool find the service notch located at the bottom of speaker grille and pry up speaker grille.

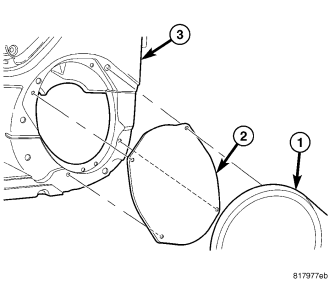

2. Remove the four screws attaching the speaker (2) to door panel (3).
3. Disconnect the electrical connector and remove the speaker.
INSTRUMENT PANEL SPEAKER
1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel (2) top cover (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - REMOVAL).
3. Remove speaker retaining screws.

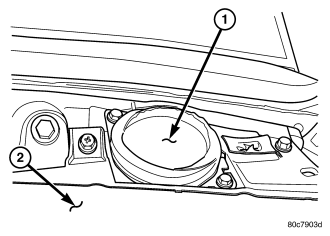

4. Remove speaker (1) and disconnect wire harness connector.
REAR SPEAKER - LIFTGATE
1. Disconnect and isolate the battery negative cable.
2. Remove the speaker enclosure fasteners.

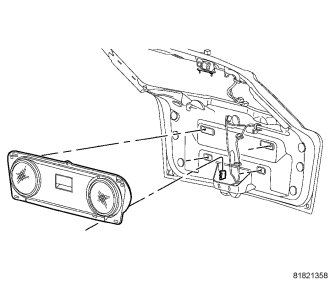

3. Remove speaker and disconnect the electrical harness connector.
REAR SUBWOOFER
1. Disconnect and isolate the battery negative cable.
2. Remove the right quarter trim panel. (Refer to 23 - BODY/INTERIOR/QUARTER PANEL TRIM - REMOVAL).

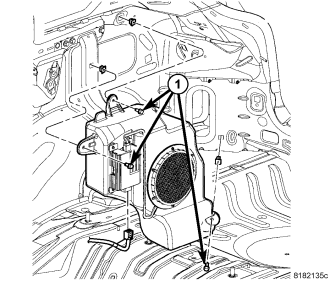

3. Remove the subwoofer mounting fasteners.
4. Disconnect the electrical harness connector.
5. Remove the speaker.
INSTALLATION
| Door Speakers | DOOR SPEAKERS |
| Instrument Panel Speaker | INSTRUMENT PANEL SPEAKER |
| Rear Speaker – Tailgate | REAR SPEAKER - TAILGATE |
| Rear Subwoofer | REAR SUBWOOFER |
DOOR SPEAKERS
1. Connect wire connector.
2. Install speaker (2) into the door panel (3) opening and install the four screws into door panel.
3. Install speaker grille (1) onto trim panel.
INSTRUMENT PANEL SPEAKER
1. Connect wire harness connector to speaker (1).
2. Install speaker screws.
3. Install instrument panel (2) top cover (Refer to 23 - BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - INSTALLATION).
4. Connect the battery negative cable.
REAR SPEAKER - TAILGATE
1. Connect electrical harness connector and position speaker.
2. Install and tighten mounting fasteners.
3. Connect battery negative cable.
REAR SUBWOOFER
1. Position the speaker and connect the electrical harness connector.
2. Install the subwoofer mounting fasteners.
3. Install the right rear quarter trim panel. (Refer to 23 - BODY/INTERIOR/QUARTER PANEL TRIM - INSTALLATION).
4. Connect the battery negative cable.
