2007 Compass Patriot MK Factory Service Manual 21 - TRANSAXLE

U1146-LOST COMMUNICATION WITH EXTERNAL MEMORY





For a complete wiring diagram Refer to Section 8W.

Theory of Operation


The first time the vehicle is started, the Transmission Control Module (TCM) receives hydraulic calibration data from an external EEPROM (located in the transmission) and stores this information in the EEPROM of the TCM. If the TCM can not read the external EEPROM in the transmission this DTC will set. It takes two consecutive failures to turn on the MIL.



Possible Causes

(T327) DATA IN/OUT SELECT CIRCUIT SHORT TO VOLTAGE

(T313) CHIP SELECT CIRCUIT SHORT TO VOLTAGE

(T302) CLOCK SELECT CIRCUIT SHORT TO VOLTAGE

(T327) DATA IN/OUT SELECT CIRCUIT OPEN

(T313) CHIP SELECT CIRCUIT OPEN

(T302) CLOCK SELECT CIRCUIT OPEN

(T302) CLOCK SELECT CIRCUIT SHORT TO GROUND

(T313) CHIP SELECT CIRCUIT SHORT TO GROUND

(T327) DATA IN/OUT SELECT CIRCUIT SHORT TO GROUND

INTERNAL TRANSMISSION

TRANSMISSION CONTROL MODULE



Always perform the CVT Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT - STANDARD PROCEDURE)



Diagnostic Test

1. CHECK IF THE DTC IS ACTIVE

With the scan tool, read Transmission DTCs.

Is the status Active for this DTC?

Yes


No

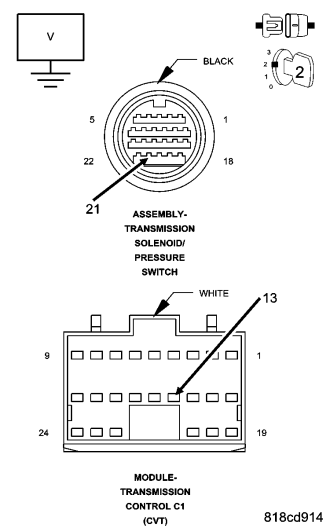

2. CHECK THE (T327) DATA IN/OUT SELECT CIRCUIT FOR A SHORT TO VOLTAGE



Turn the ignition off to the lock position.
Disconnect the TCM C1 harness connector.
Disconnect the Transmission Solenoid/Pressure Switch Assembly harness connector.
Ignition on, engine not running.
Measure the voltage of the (T327) Data IN/OUT Select circuit.

Is the voltage above .02 volts?

Yes


No

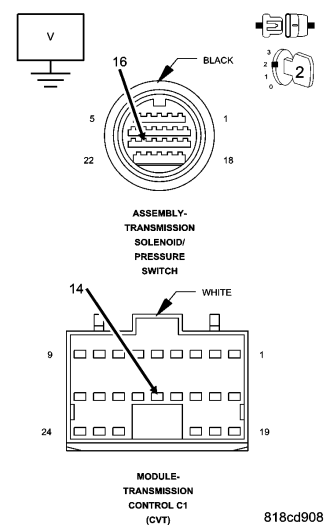

3. CHECK THE (T313) CHIP SELECT CIRCUIT FOR A SHORT TO VOLTAGE



Measure the voltage of the (T313) Chip Select circuit.

Is the voltage above 0.1 volts?

Yes


No

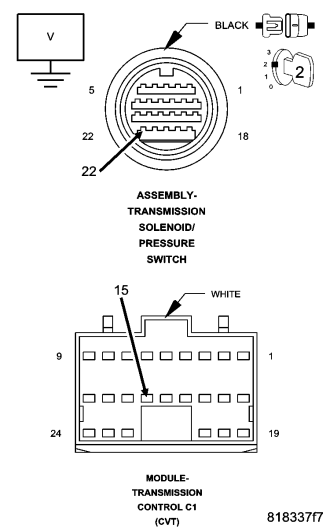

4. CHECK THE (T302) CLOCK SELECT CIRCUIT FOR A SHORT TO VOLTAGE



Measure the voltage of the (T302) Clock Select circuit.

Is the voltage above 0.2 volts?

Yes


No

5. CHECK THE (T327) DATA IN/OUT SELECT CIRCUIT FOR AN OPEN



Turn the ignition off to the lock position.
Measure the resistance of the (T327) Data In/OutSelect circuit between the TCM C1 harness connector and the Transmission Solenoid/Pressure Switch Assembly harness connector.

Is the resistance above 5.0 ohms?

Yes


No

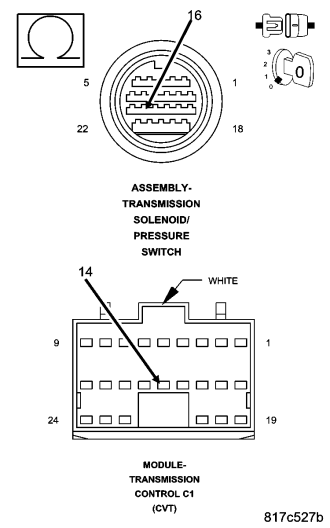

6. CHECK THE (T313) CHIP SELECT CIRCUIT FOR AN OPEN



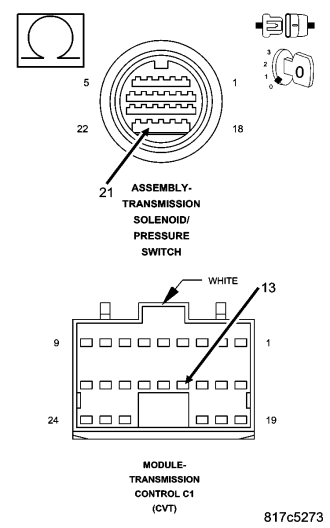

Measure the resistance of the (T313) Chip Select circuit between the TCM C1 harness connector and the Transmission Solenoid/Pressure Switch Assembly harness connector.

Is the resistance above 5.0 ohms?

Yes


No

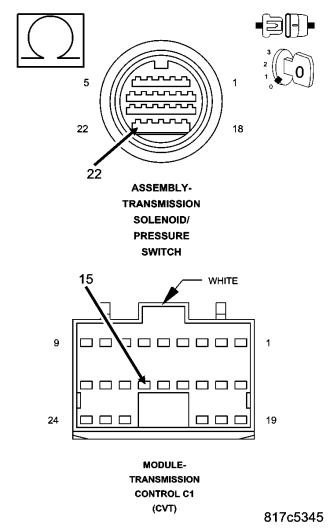

7. CHECK THE (T302) CLOCK SELECT CIRCUIT FOR AN OPEN



Measure the resistance of the (T302) Clock Select circuit between the TCM C1 harness connector and the Transmission Solenoid/Pressure Switch Assembly harness connector.

Is the resistance above 5.0 ohms?

Yes


No

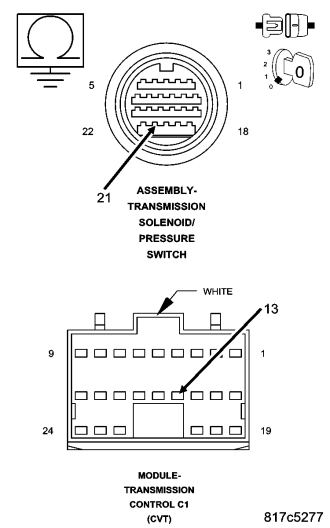

8. CHECK THE (T327) DATA IN/OUT SELECT CIRCUIT FOR A SHORT TO GROUND



Measure the resistance between ground and the (T327) Data IN/OUT Select circuit.

Is the resistance below 5.0 ohms?

Yes


No

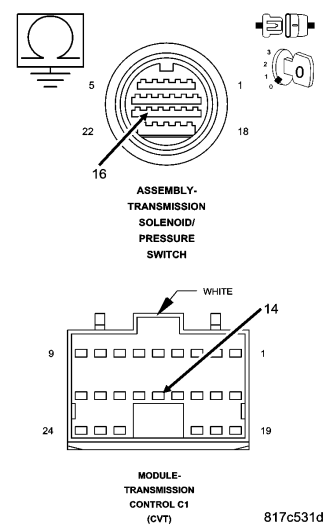

9. CHECK THE (T313) CHIP SELECT CIRCUIT FOR A SHORT TO GROUND



Measure the resistance between ground and the (T313) Chip Select circuit.

Is the resistance below 5.0 ohms?

Yes


No

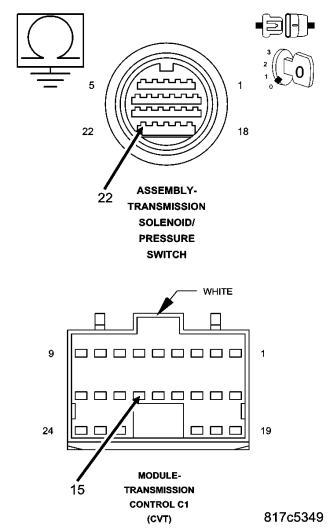

10. CHECK THE (T302) CLOCK SELECT CIRCUIT FOR A SHORT TO GROUND



Measure the resistance between ground and the (T302) Clock Select circuit.

Is the resistance below 5.0 ohms?

Yes


No

11. CHECK THE TCM

Replace or repair the CV Transmission (valve body) per the Service Information. Perform CVT VERIFICATION TEST.
(Refer to 21 - TRANSMISSION/TRANSAXLE/AUTOMATIC - CVT - STANDARD PROCEDURE).

Did the DTC reset during the verification test?

Yes


No

12. INTERMITTENT WIRING AND CONNECTORS

The conditions necessary to set this DTC are not present at this time.
Using the schematics as a guide, inspect the wiring and connectors specific to this circuit.
Wiggle the wires while checking for shorted and open circuits.

Were there any problems found?

Yes


No
