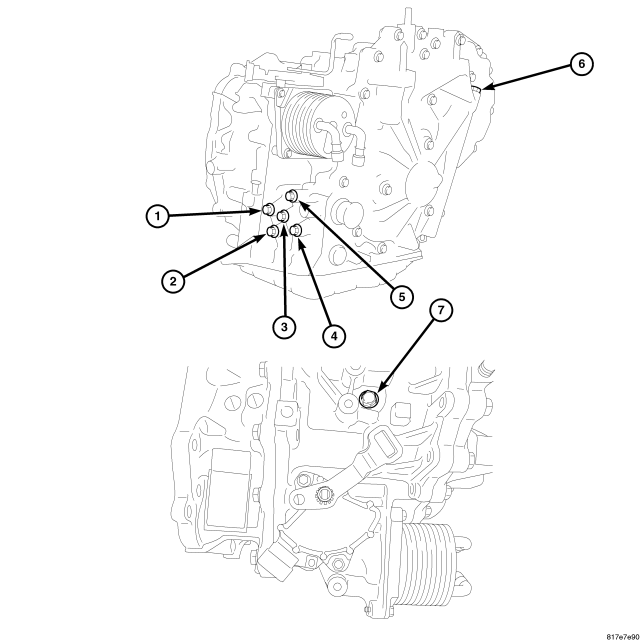

Fluid pressure (minimum - maximum)
|
Fluid pressure (measurement reference value)
|
Remarks
|
|
Reference value Mpa (kg/cm2
|
Measurement condition
|
Reference value Mpa (kg/cm2)
|
|
|
Line pressure
|
0.5 - 6.0 (5.1- 61.2)
|
Idling
|
0.5 - 1.5 (5.1 - 15.3)
|
|
Forward clutch pressure
|
0.1 - 1.5 (1.0 - 15.3)
|
Idling (D position)
|
0.5 - 1.0 (5.1 - 10.2)
|
P, R and N positions: 0 Mpa (0 kg/cm2)
|
Primary pressure
|
0.1 - 6.0 (1.0 - 61.2)
|
Idling
|
0.1 - 1.5 (1.0 - 15.3)
|
|
Torque converter apply pressure
|
0.0 - 1.0 (0.0 - 10.2)
|
Lock-up ON:
|
0.0 - 0.2 (0.0 - 2.0)
|
|
Torque converter release pressure
|
0.0 - 1.0 (0.0 - 10.2)
|
Lock-up OFF:
|
0.0 - 0.2 (0.0 - 2.0)
|
|
Secondary Pressure
|
0.1 - 6.0 (1.0 - 61.2)
|
Idling
|
0.1 - 1.5 (1.0 -15.3)
|
|
Reverse brake pressure
|
0.1 - 1.5 (1.0 - 15.3)
|
Idling (R position)
|
0.5 - 1.0 (5.1 - 10.2)
|
Out of R position: 0 Mpa (0 kg/cm2)
|
