TRANSMISSION RANGE SENSOR
REMOVAL

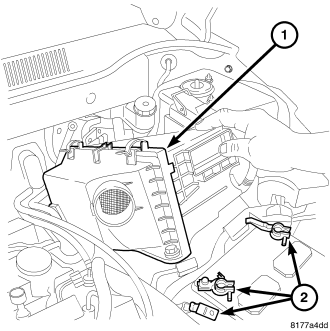

1. Disconnect battery cables (2).
2. Remove air cleaner assembly (1).
3. Remove battery.

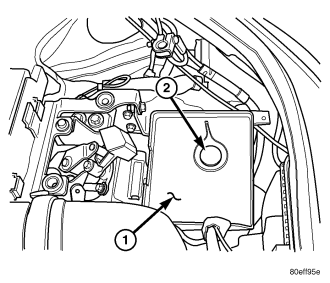

4. Remove battery tray (1).

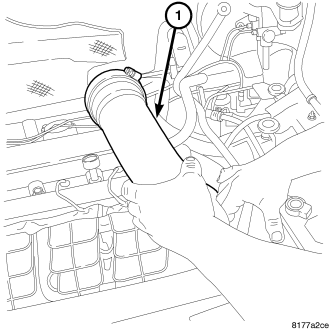

5. Remove inlet air tube (1).

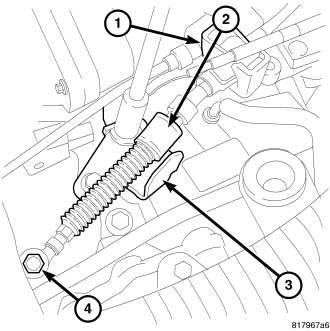

6. Remove the shifter cable (2).
7. Remove nut (1) at shift lever.

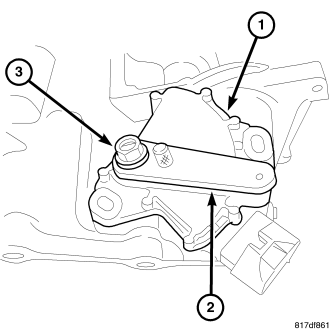

8. Remove shift lever (2).

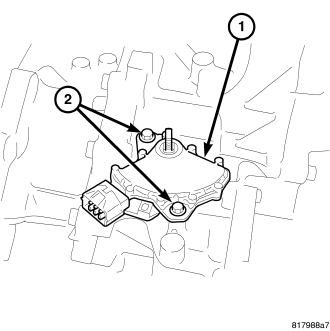

9. Remove bolts (2) at TRS.
10. Remove TRS (1).
INSTALLATION
1. Install TRS into position (1).
2. Put the manual shaft in the N position (3).

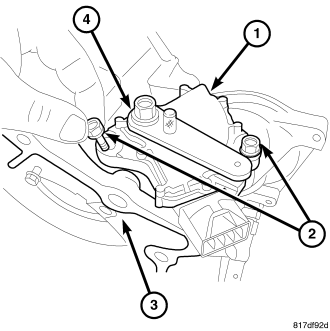

3. Install Alignment Tool 9876 (2) and adjust the position of the TRS (1).
4. Install and tighten the mounting bolts of the TRS to 6 N·m (49 in. lbs.).

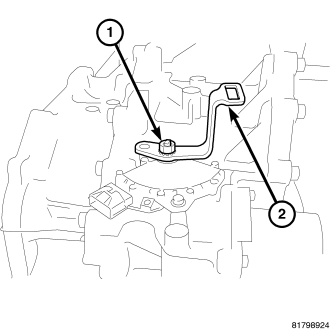

5. Remove Alignment Tool 9876 and Install the shift lever (2) onto the manual shaft (1).
6. Install and tighten the mounting nut to 17 N·m (150 in. lbs.).
