BATTERY HOLDDOWN
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Rotate the two retaining clips (3) and remove the air cleaner fresh air duct (2).

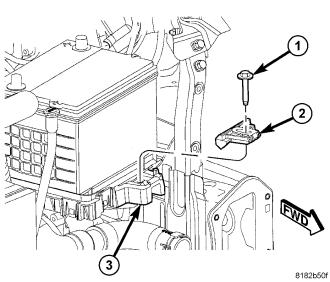

3. Remove the battery hold down retaining bolt (1).
4. Remove the battery hold down (2) from the vehicle.
INSTALLATION
1. Install the battery hold down (2) into the vehicle.
2. Install the battery hold down retaining bolt (1). Tighten the bolt to 7 N·m (62 in. lbs.).
3. Install the air cleaner fresh air duct (2) and secure in place by rotating the two retaining clips (3).
4. Connect the battery negative cable.
