INSTALLATION

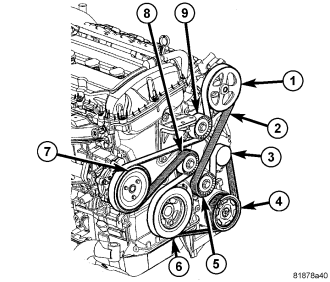

GAS ENGINE
NOTE: When installing drive belt on the pulleys, make sure that belt is properly routed and all V-grooves make proper contact with pulley grooves.
1. Install the accessory drive belt (2) around all the pulleys except for the generator pulley (3).
2. Using a wrench, rotate accessory drive belt tensioner (8) counterclockwise until accessory drive belt (2) can be installed on the generator pulley (3). Release spring tension onto accessory drive belt (2).

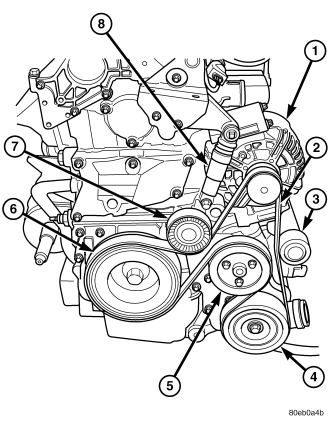

DIESEL
NOTE: When installing accessory drive belt, be sure belt is routed around all accessories correctly.
1. Install belt over all pulleys except for the power steering pump pulley (5) (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
2. Using a wrench, rotate belt tensioner (8) clockwise until belt can be installed onto power steering pump pulley (5). Release spring tension onto belt.
3. Install belt splash shield (Refer to 7 - COOLING/ACCESSORY DRIVE/DRIVE BELTS - REMOVAL).
4. Lower vehicle from hoist.
