MECHANISM-GEARSHIFT
REMOVAL
1. Remove gear shift boot.
2. Remove the center console assembly (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL). Remove rear power window switch (if equipped) and disconnect harness from console.
NOTE: Cable is pushed into a rubber grommet.

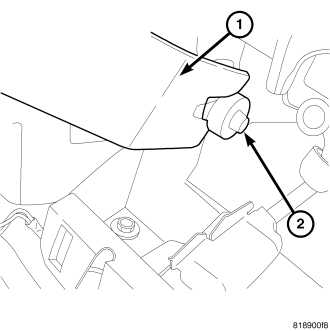

3. Remove select cable (2) from shift lever (1).

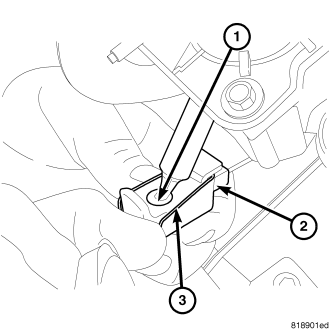

4. Remove shift cable retaining clip (3) and disconnect cable (2) from the shift lever (1).

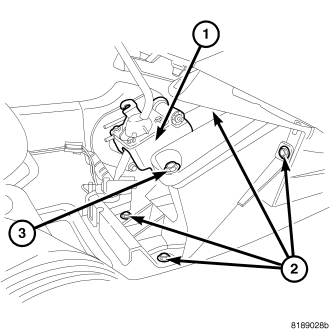

5. Remove the shifter assembly to riser bolts (3) and remove shifter from vehicle.
INSTALLATION
1. Install shifter assembly. (1) to riser. Install and tighten bolts (3) to 7 N·m (61 in. lbs.).
2. Install shift cable (2) to shifter lever (1) and secure cable to shifter bracket with clip (3).
3. Install select cable to shifter lever and secure cable to shifter bracket.
4. Install center console assembly. Install rear power window switch (if equipped) and fasten harness to console (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - INSTALLATION).
5. Install gearshift boot.
6. Verify that shift pattern is aligned properly.
