SWITCH-BACKUP LAMP
REMOVAL
1. Disconnect battery negative cable.
2. Raise vehicle on hoist.
3. Disconnect backup lamp switch connector.

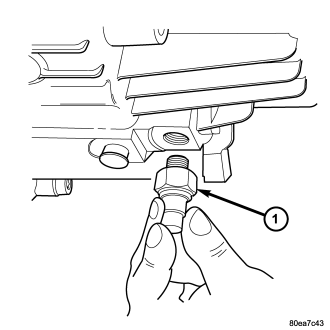

4. Remove backup lamp switch (1).
INSTALLATION
1. Install backup lamp switch (1) and tighten to 24 N·m (18 ft. lbs.).
2. Connect backup lamp switch connector.
3. Lower vehicle.
4. Connect battery negative cable.
