DESCRIPTION

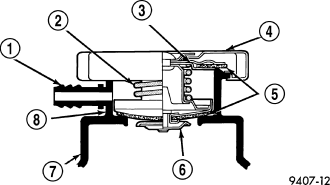

The cooling system is equipped with a pressure cap that releases built up pressure, maintaining a range of 97-124 kPa (14-18 psi).

There is also a vent valve (6) in the center of the cap. This valve also opens when coolant is cooling and contracting, allowing coolant to return to radiator from coolant recovery container by vacuum through connecting hose. If valve is stuck shut, the radiator hoses will be collapsed on cool down. Clean the vent valve to ensure proper sealing when boiling point is reached.

DIESEL ENGINES

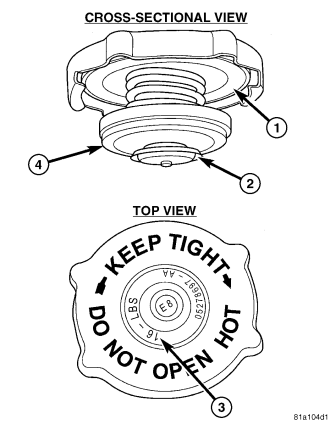

All vehicles are equipped with a pressure cap. This cap releases pressure at some point within approximately 110 kPa (16 psi). The pressure relief point (in pounds) is engraved on top of the cap

The cooling system will operate at pressures slightly above atmospheric pressure. This results in a higher coolant boiling point allowing increased radiator cooling capacity. The cap contains a spring-loaded pressure relief valve. This valve opens when system pressure reaches the release range of approximately 110 kPa (16 psi).

A rubber gasket seals the radiator filler neck. This is done to maintain vacuum during coolant cool-down and to prevent leakage when system is under pressure.
