This section provides illustrations identifying connector, ground and splice locations in the vehicle. Connector, ground and splice indexes are provided. Use the wiring diagrams in each section
for connector, ground and splice identification. Refer to the appropriate index for the proper figure number. For items that are not shown in this section N/S is placed in the Fig. column.
CONNECTORS
CONNECTOR NAME/NUMBER
|
COLOR
|
LOCATION
|
FIG.
|

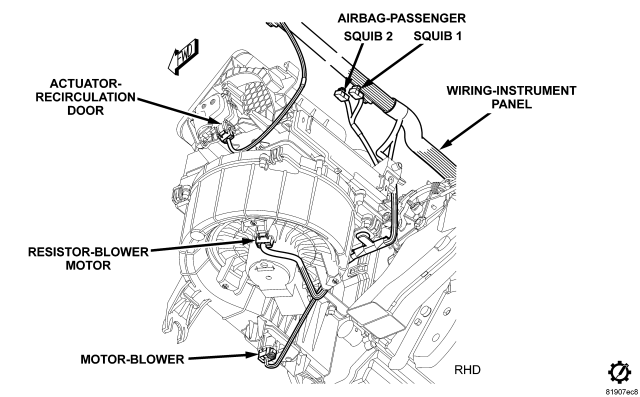

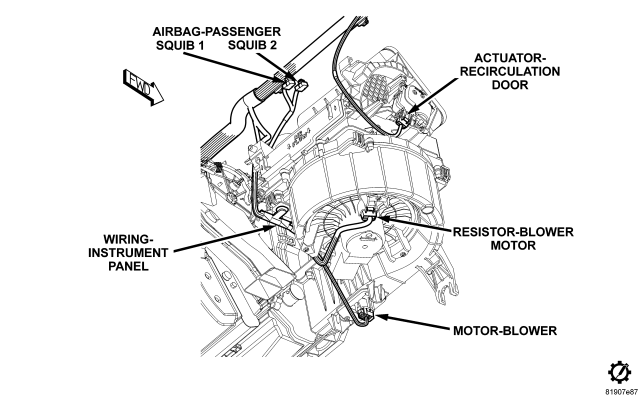

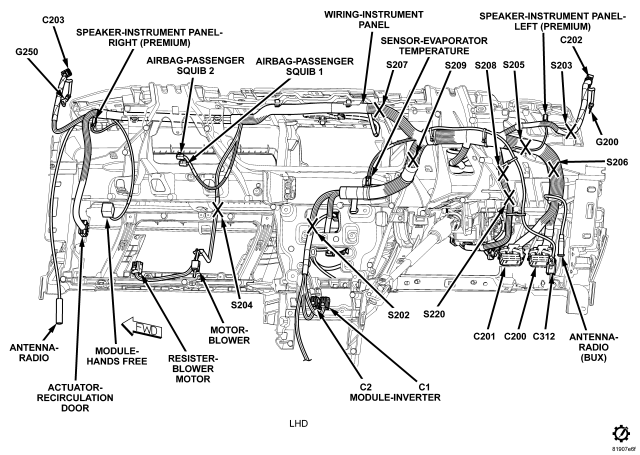

Actuator-Recirculation Door
|
Black
|
Lower Passenger Side Instrument Panel
|

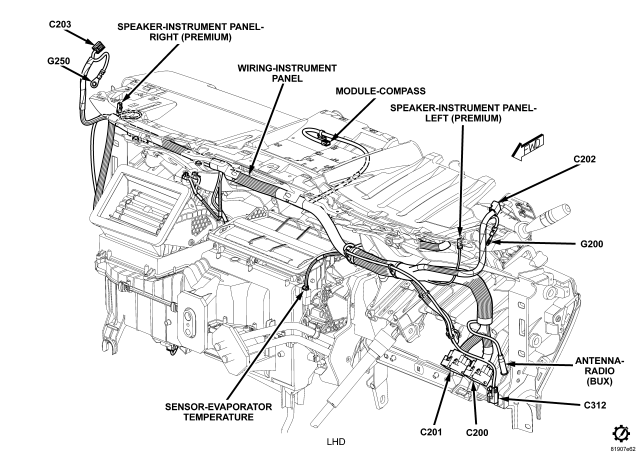

INSTRUMENT PANEL (LHD), HVAC, INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER LEFT (RHD)
|

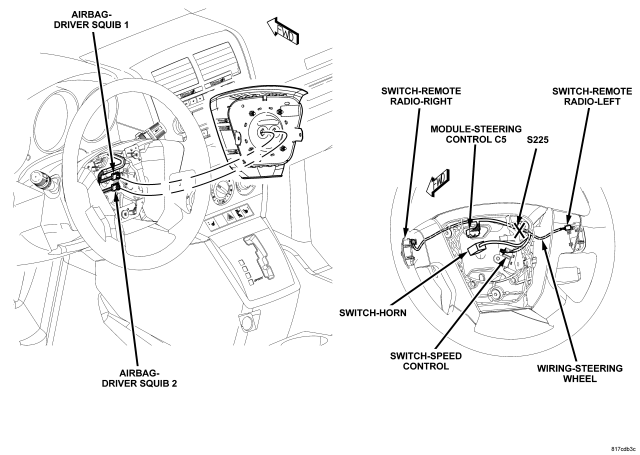

Airbag-Driver Squib 1
|
Black/Yellow
|
Rear of Steering Wheel Pad
|
INSTRUMENT PANEL - LEFT CENTER (LHD), STEERING WHEEL
|
Airbag-Driver Squib 2
|
Natural/Yellow
|
Rear of Steering Wheel Pad
|
INSTRUMENT PANEL - LEFT CENTER (LHD), STEERING WHEEL
|
Airbag-Passenger Squib 1
|
Yellow/Black
|
Passenger Side of Instrument Panel
|

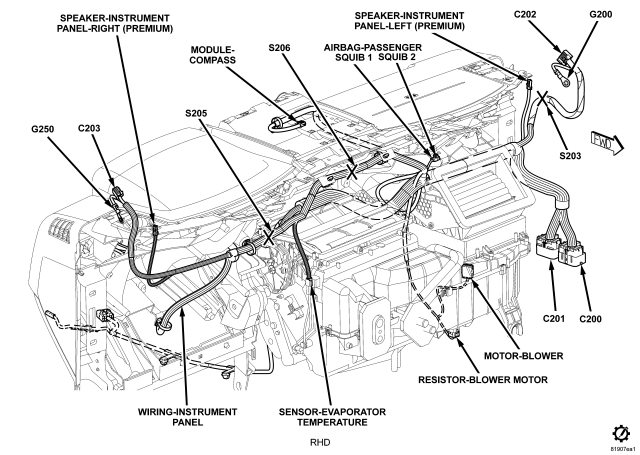

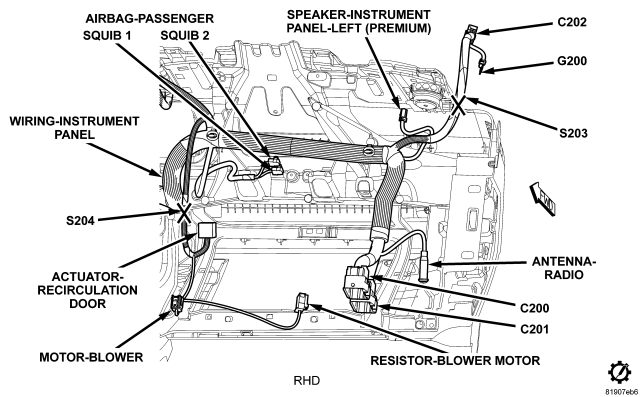

INSTRUMENT PANEL (LHD), HVAC, INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER LEFT (RHD)
|
Airbag-Passenger Squib 2
|
Yellow/Orange
|
Passenger Side of Instrument Panel
|
INSTRUMENT PANEL (LHD), HVAC, INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER LEFT (RHD)
|
Airbag-Side Curtain-Left
|
Yellow/Black
|
Near Top of Left C-PIllar
|
BODY - UPPER LEFT REAR
|

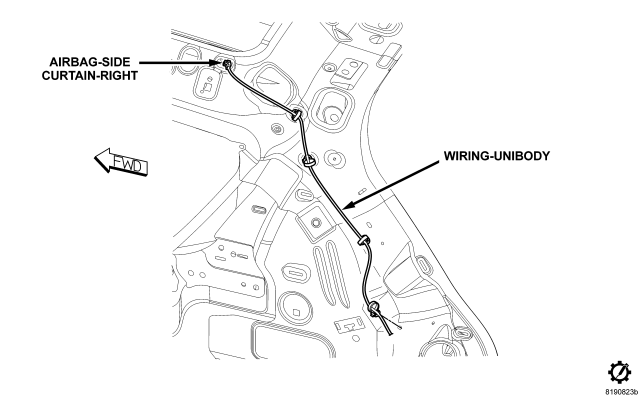

Airbag-Side Curtain-Right
|
Yellow/Black
|
Near Top of Right C-PIllar
|
BODY - UPPER RIGHT REAR
|

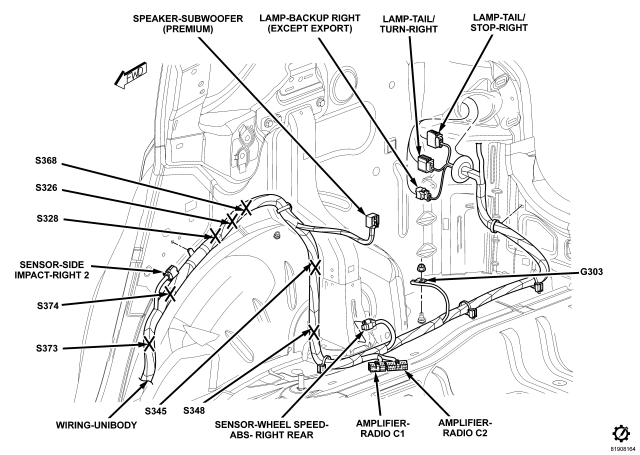

Amplifier-Radio C1
|
White
|
Right Side of Luggage Compartment
|
BODY - RIGHT REAR
|
Amplifier-Radio C2
|
White
|
Right Side of Luggage Compartment
|
BODY - RIGHT REAR
|
Antenna-Radio (LHD)
|
-
|
Right Side Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - LOWER SIDES (EXCEPT EXPORT), BODY - LEFT FRONT (LHD)
|

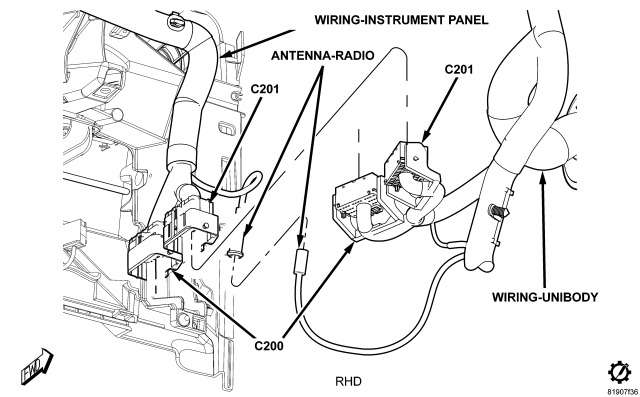

Antenna-Radio (RHD)
|
-
|
Left Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD), INSTRUMENT PANEL - LOWER LEFT SIDE (RHD), BODY - LEFT FRONT (RHD)
|

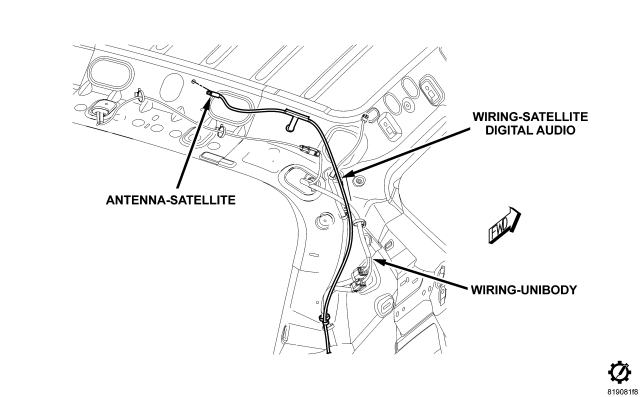

Antenna-Satellite
|
Tan
|
Mid Rear Roof
|
BODY - UPPER LEFT REAR (SATELLITE RADIO)
|
Antenna Cable-Satellite
|
Tan
|
Mid Rear Roof
|
INSTRUMENT PANEL - LOWER SIDES (EXCEPT EXPORT)
|

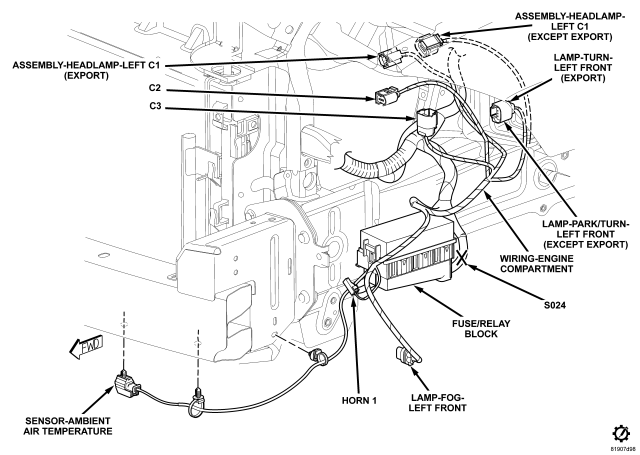

Assembly-Headlamp-Left C1
|
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - FRONT LEFT
|
Assembly-Headlamp-Left C2
|
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - FRONT LEFT
|
Assembly-Headlamp-Left C3
|
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - FRONT LEFT
|

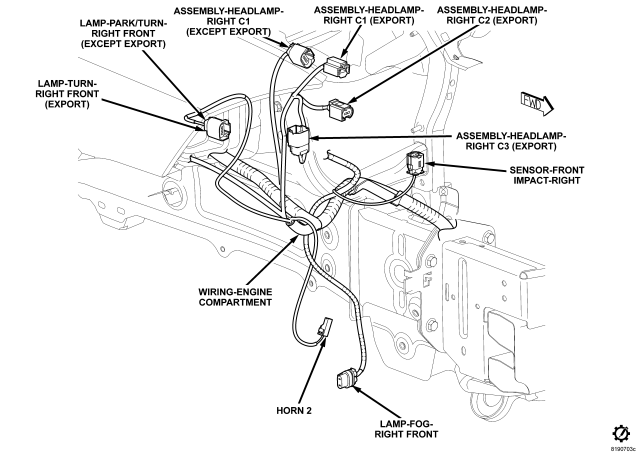

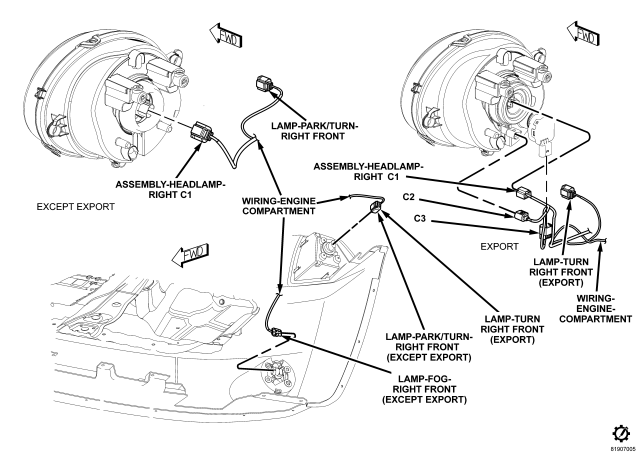

Assembly-Headlamp-Right C1
|
|
Left Front Engine Compartment
|
LIGHTING - RIGHT FRONT (LEFT SIMILAR), ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|
Assembly-Headlamp-Right C2
|
|
Left Front Engine Compartment
|
LIGHTING - RIGHT FRONT (LEFT SIMILAR), ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|
Assembly-Headlamp-Right C3
|
|
Left Front Engine Compartment
|
LIGHTING - RIGHT FRONT (LEFT SIMILAR), ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|

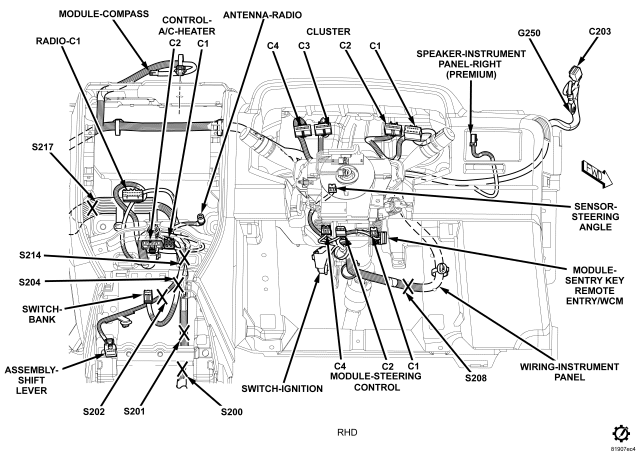

Assembly-Shift Lever
|
Lt. Gray
|
Lower Center Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT CENTER (RHD), BODY - FRONT CENTER
|

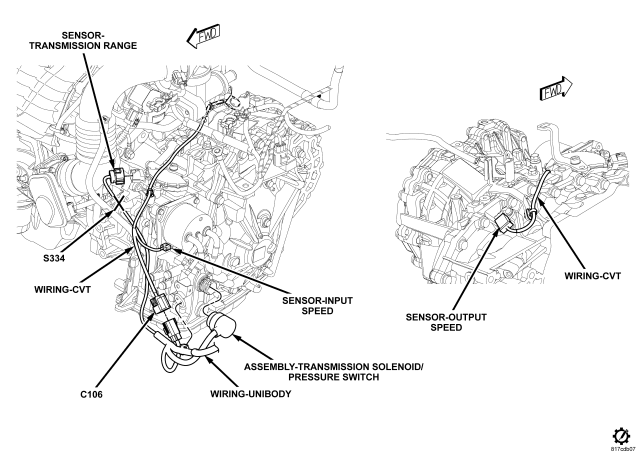

Assembly-Transmission Solenoid/Pressure Switch
|
Black
|
Left Side of Transmission
|
TRANSMISSION (CVT)
|

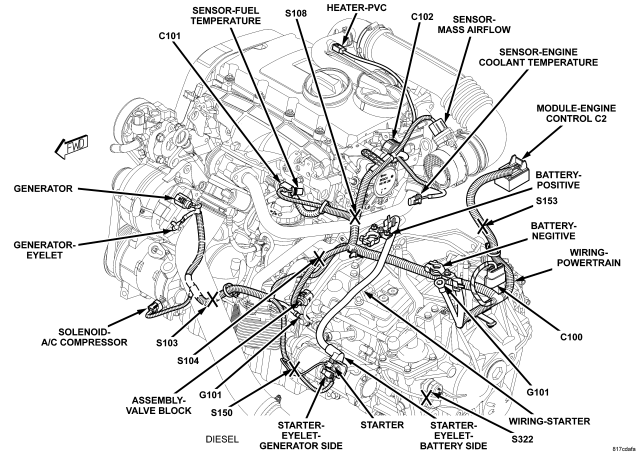

Assembly-Valve Block
|
|
Left Side of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Backlite-Electric Heated
|
Black
|
Upper Left of Liftgate
|
LIFTGATE
|

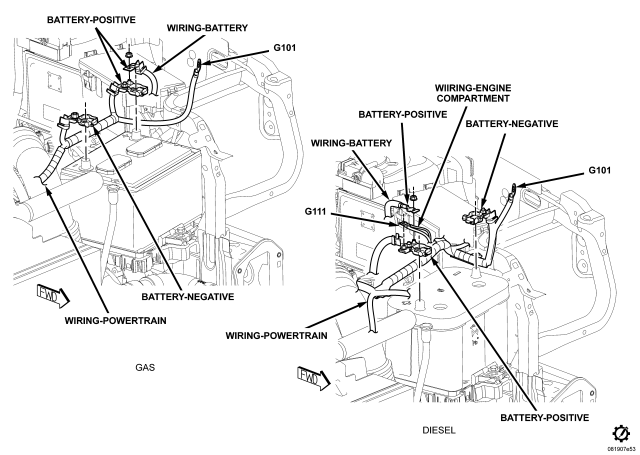

Battery-Negative (Diesel)
|
-
|
Under Passenger Seat
|
ENGINE - LEFT FRONT (DIESEL), BATTERY
|
Battery-Negative (Gas)
|
-
|
Left Front Engine Compartment
|
ENGINE - LEFT FRONT (GAS), BATTERY
|
Battery-Positive (Diesel)
|
-
|
Under Passenger Seat
|
ENGINE - LEFT FRONT (DIESEL), BATTERY
|
Battery-Positive (Gas)
|
-
|
Left Front Engine Compartment
|
ENGINE - LEFT FRONT (GAS), BATTERY
|

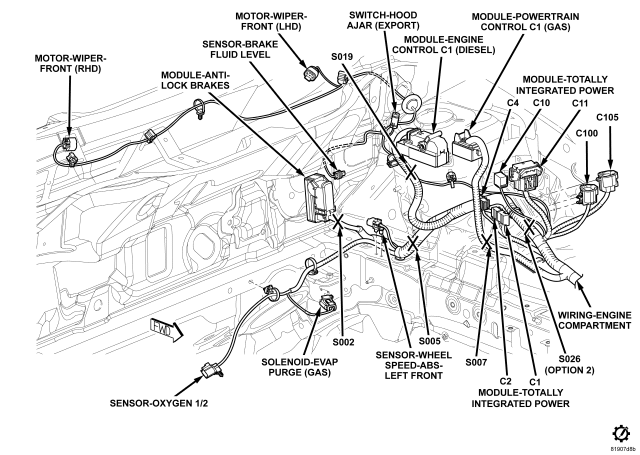

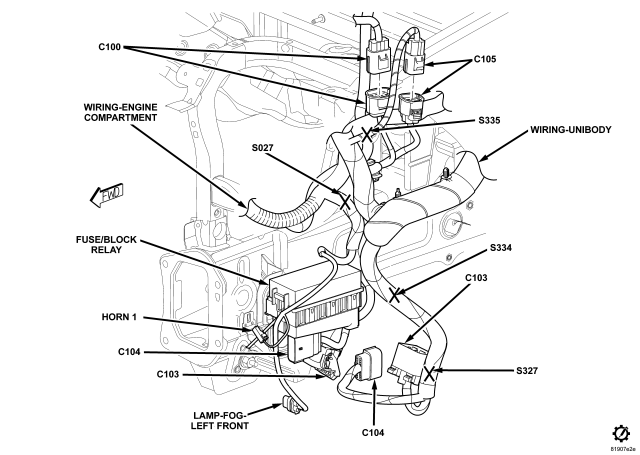

C100
|
Black
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, FRAME RAIL - LEFT FRONT (GAS), ENGINE - LEFT FRONT (GAS), ENGINE - LEFT REAR (GAS), ENGINE - LEFT FRONT (DIESEL)
|
C101
|
Black
|
Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|

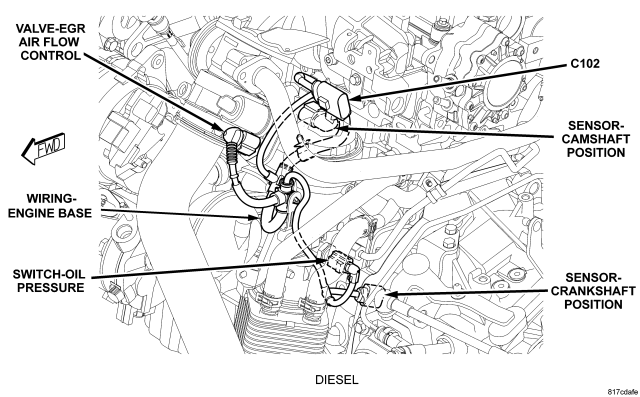

C102
|
Black
|
Front Left Side of Engine Compartment
|
ENGINE - LEFT FRONT (DIESEL), ENGINE - LOWER LEFT FRONT (DIESEL), ENGINE - TOP (DIESEL)
|
C103
|
Black
|
Left Front Engine Compartment
|
FRAME RAIL - LEFT FRONT (GAS), FRAME RAIL - LEFT FRONT (DIESEL)
|
C104
|
Black
|
Left Front Engine Compartment
|
FRAME RAIL - LEFT FRONT (GAS), FRAME RAIL - LEFT FRONT (DIESEL)
|
C105
|
Dk. Gray
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, FRAME RAIL - LEFT FRONT (GAS)
|
C106
|
Black
|
Lower Front of Transmission
|
TRANSMISSION (CVT)
|

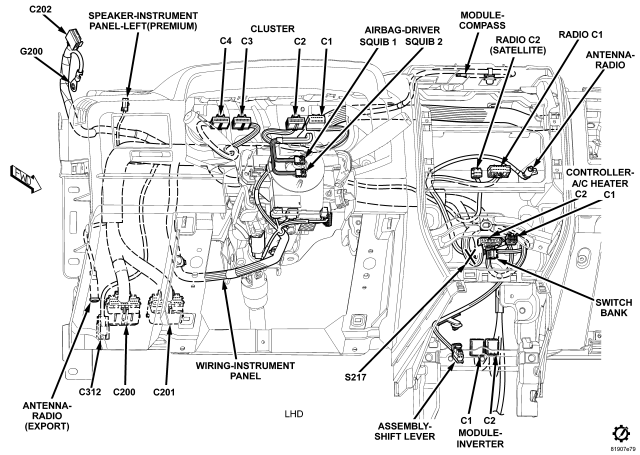

C200
|
Black
|
Left Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER SIDES (EXCEPT EXPORT), INSTRUMENT PANEL - LOWER LEFT SIDE (RHD), BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
C201
|
Lt. Gray
|
Left Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER SIDES (EXCEPT EXPORT), INSTRUMENT PANEL - LOWER LEFT SIDE (RHD), BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|

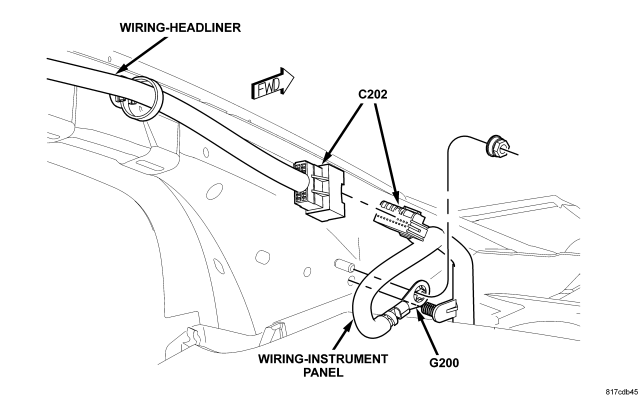

C202
|
Lt. Gray
|
Base of Left A-Pillar
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), A-PILLAR - LEFT, HEADLINER - FRONT
|

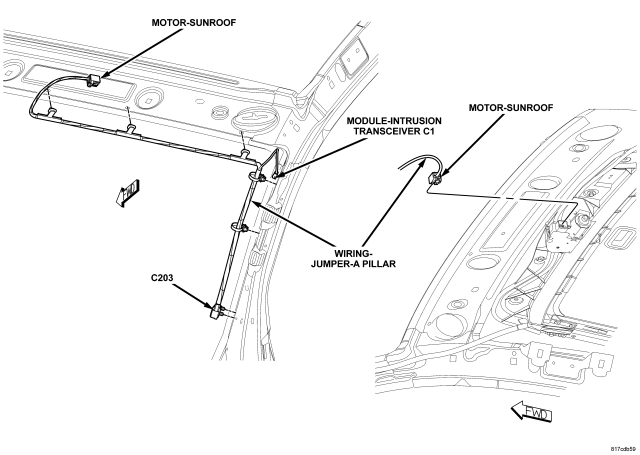

C203
|
Lt. Gray
|
Upper Right Side Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD), A-PILLAR - RIGHT
|

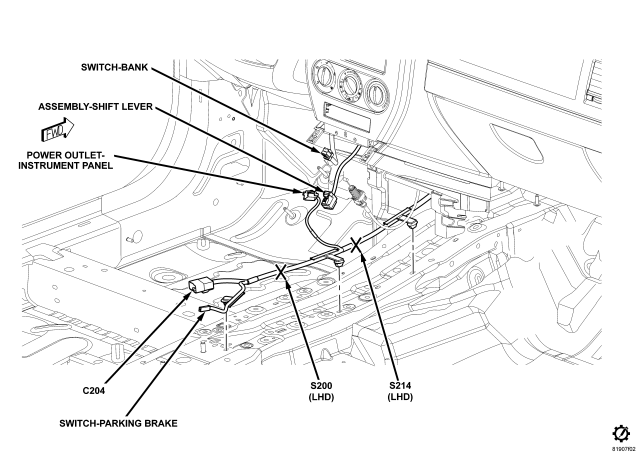

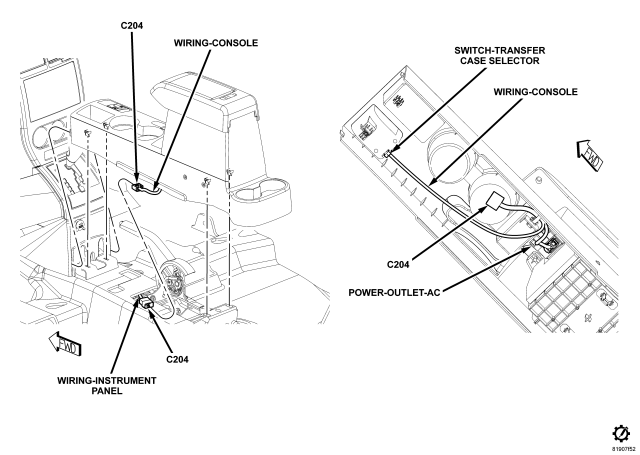

C204
|
Natural
|
Below Center Console
|
BODY - FRONT CENTER, CENTER CONSOLE
|
C300
|
Lt. Gray
|

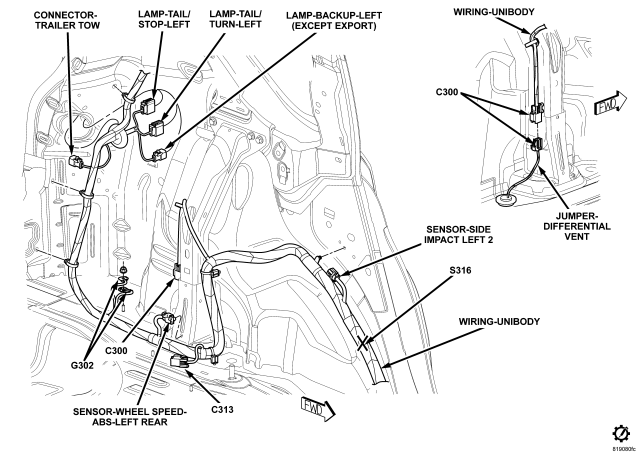

Left Side of Luggage Compartment
|
BODY - LEFT REAR
|

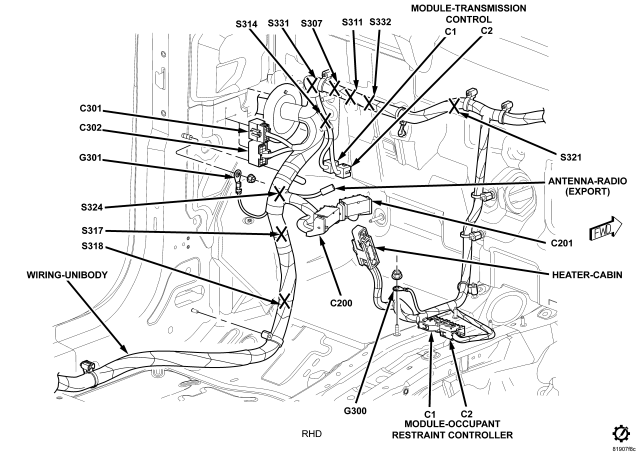

C301
|
Green
|
Left Kick Panel
|

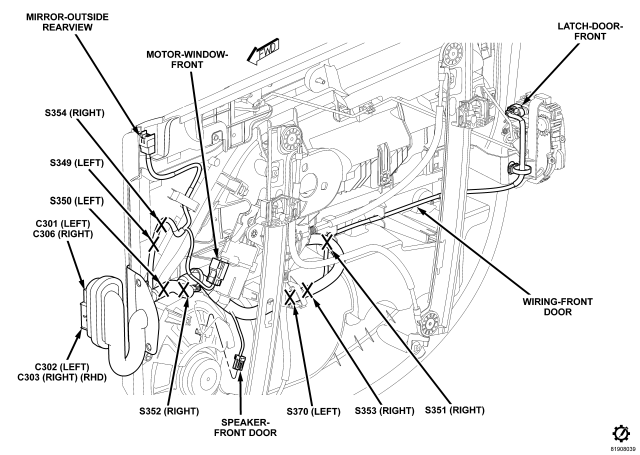

BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD), FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
C302
|
Black
|
Left Kick Panel
|
BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD), FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|

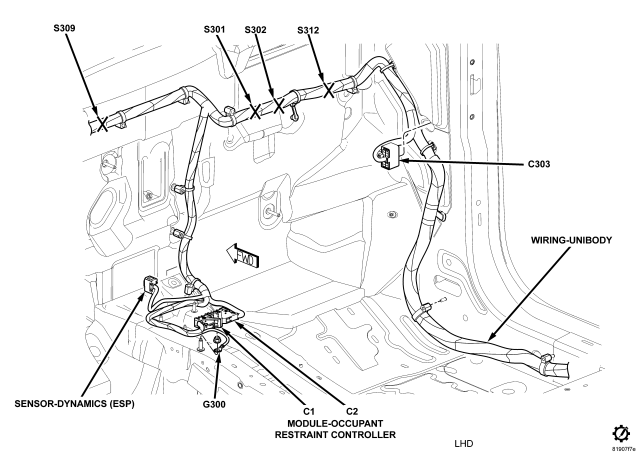

C303
|
Black
|
Below Left Side of Instrument Panel
|
BODY - RIGHT FRONT (LHD), BODY - RIGHT FRONT (RHD), FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|

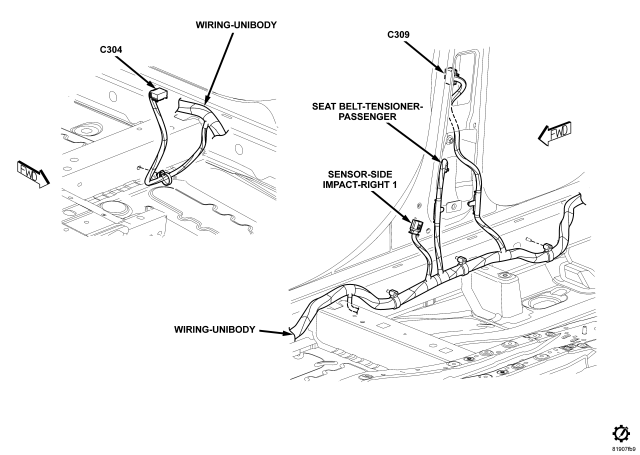

C304
|
Lt. Gray
|
Below Passenger Seat
|
B-PILLAR - RIGHT, SEATS - FRONT
|
C305
|
Lt. Gray
|
Below Driver Seat
|

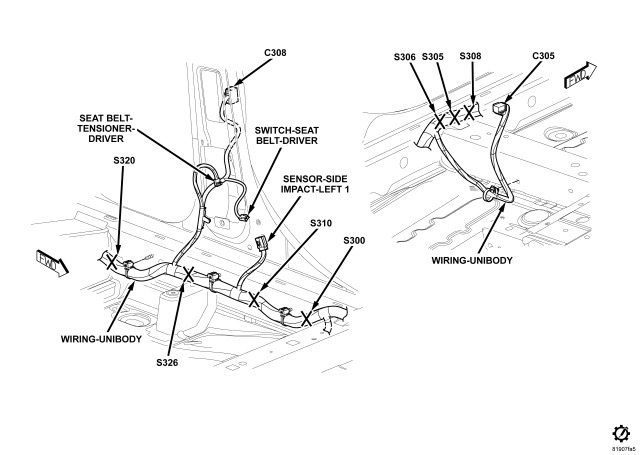

B-PILLAR - LEFT, SEATS - FRONT
|

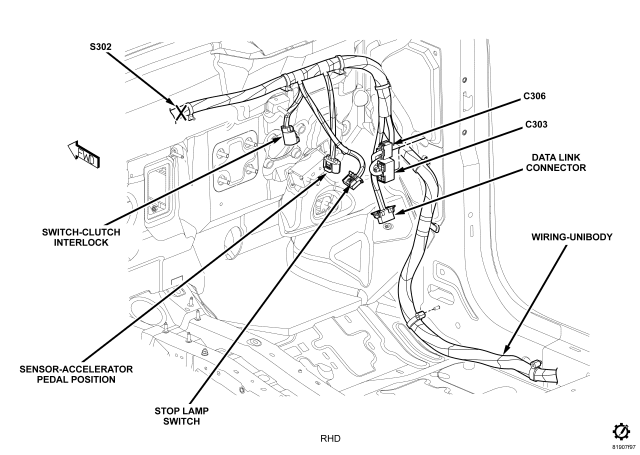

C306
|
Green
|
Below Left Side of Instrument Panel
|
BODY - RIGHT FRONT (RHD), FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|

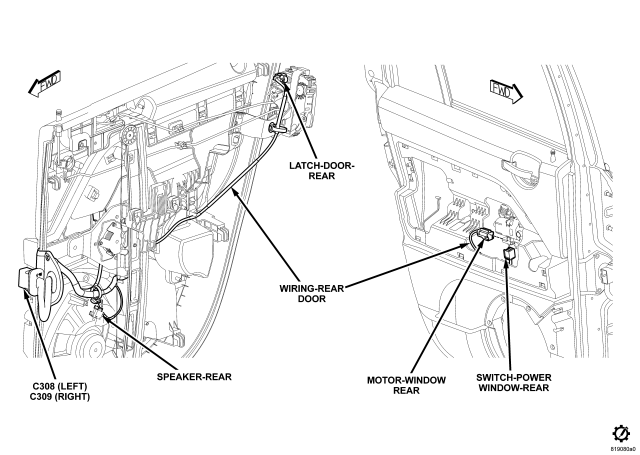

C308
|
Lt. Gray
|
Left B-Pillar
|
B-PILLAR - LEFT, REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
C309
|
Lt. Gray
|
Right B-Pillar
|
B-PILLAR - RIGHT, REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|

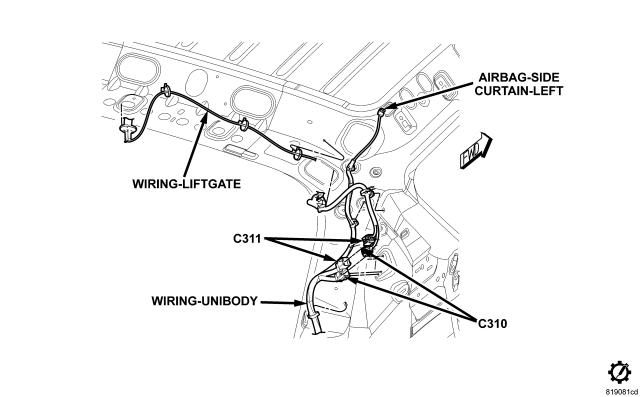

C310
|
Lt. Gray
|
Body Near Left Top Corner of Liftgate
|
BODY - UPPER LEFT REAR, LIFTGATE
|
C311
|
Lt. Gray
|
Body Near Left Top Corner of Liftgate
|
BODY - UPPER LEFT REAR, LIFTGATE
|

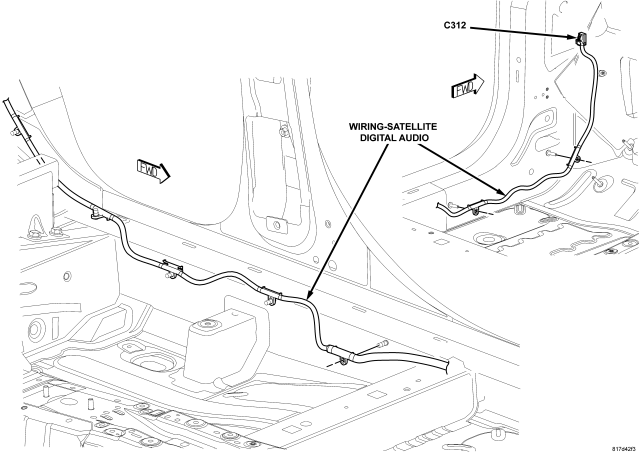

C312
|
Lt. Gray
|
Left Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - LOWER SIDES (EXCEPT EXPORT), BODY - LEFT SIDE (SATELLITE RADIO)
|

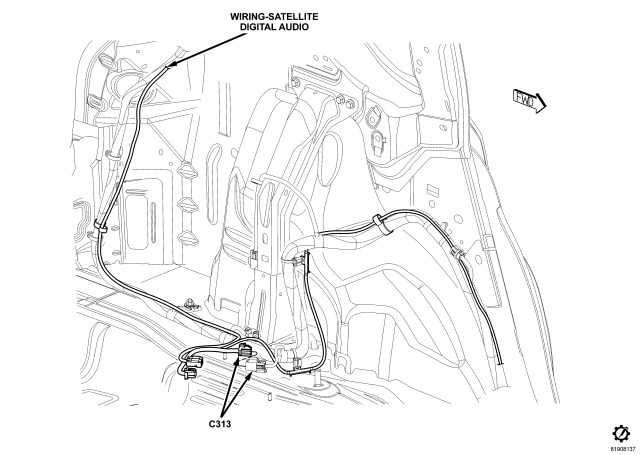

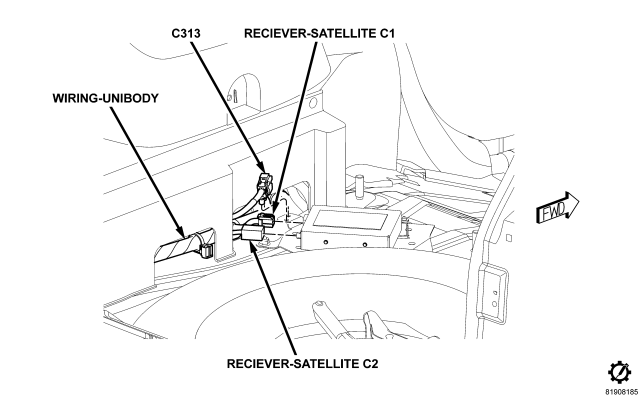

C313
|
Lt. Gray
|
Left Side of Luggage Compartment
|
BODY - LEFT REAR, BODY - LEFT REAR (SATELLITE RADIO), LUGGAGE COMPARTMENT - LOWER LEFT (SATELLITE RADIO)
|

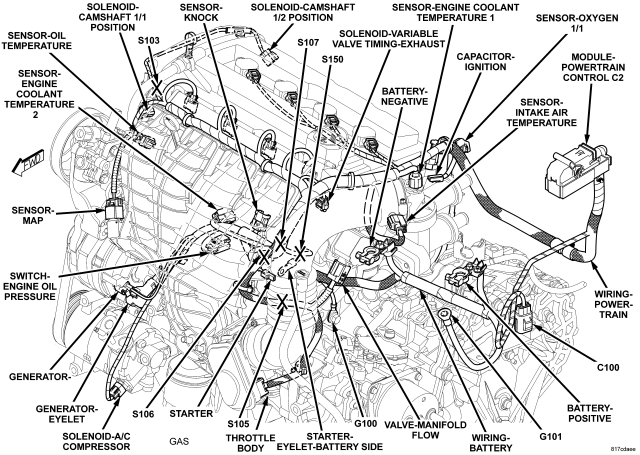

Capacitor-Ignition
|
Natural
|
Left Side of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - LEFT REAR (GAS)
|
Cluster C1
|
Black
|
Driver's Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Cluster C2
|
Brown
|
Driver's Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Cluster C3
|
Black
|
Driver's Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Cluster C4
|
Lt. Gray
|
Driver's Side of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|

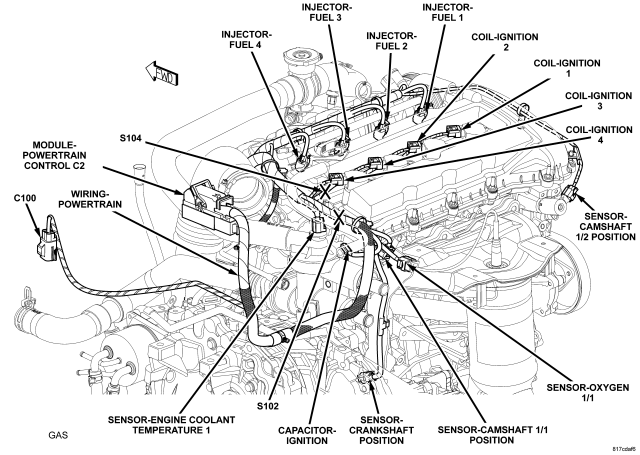

Coil-Ignition 1
|
Dk. Gray
|
Right Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Coil-Ignition 2
|
Dk. Gray
|
Right Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Coil-Ignition 3
|
Dk. Gray
|
Left Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Coil-Ignition 4
|
Dk. Gray
|
Left Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Connector-Trailer Tow
|
|
Near Left Tail Lamp T/Os
|
BODY - LEFT REAR
|

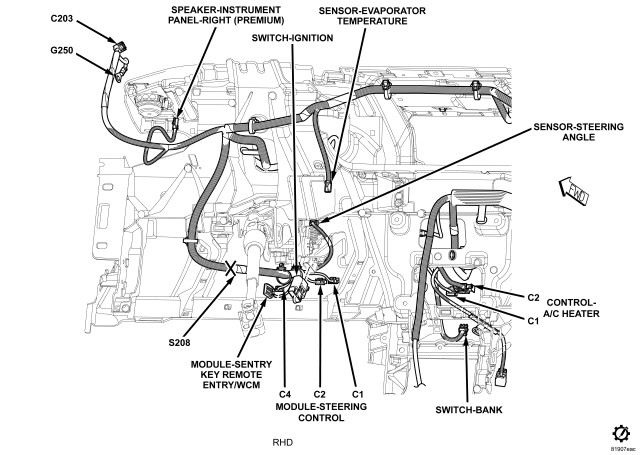

Control-A/C-Heater C1
|
Black
|
Center of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Control-A/C-Heater C2
|
Black
|
Center of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Data Link Connector
|
Black
|
Left Side of Instrument Panel
|

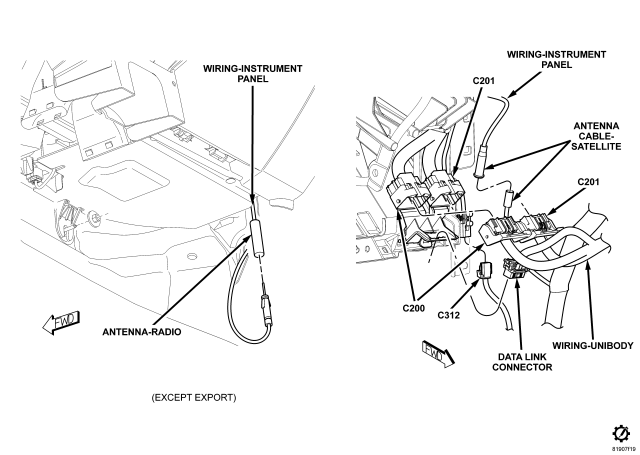

INSTRUMENT PANEL - LOWER SIDES (EXCEPT EXPORT), BODY - LEFT FRONT (LHD), BODY - RIGHT FRONT (RHD)
|

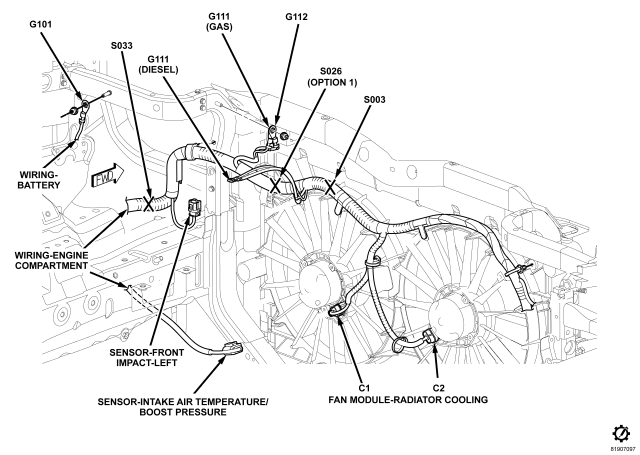

Fan Module-Radiator Cooling C1
|
Black
|
Front Center Engine Compartment
|
ENGINE COMPARTMENT - FRONT
|
Fan Module-Radiator Cooling C2
|
Black
|
Front Center Engine Compartment
|
ENGINE COMPARTMENT - FRONT
|

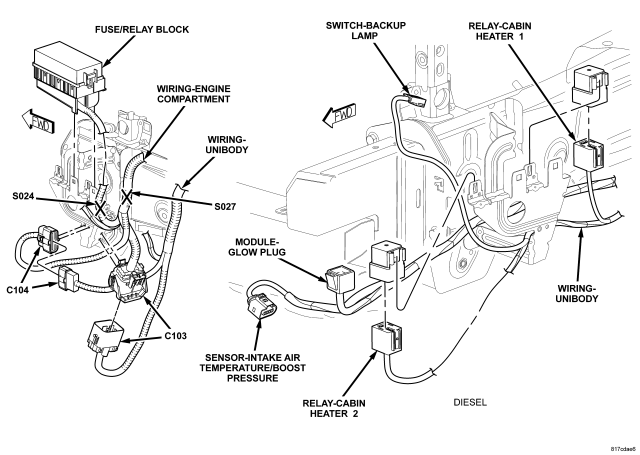

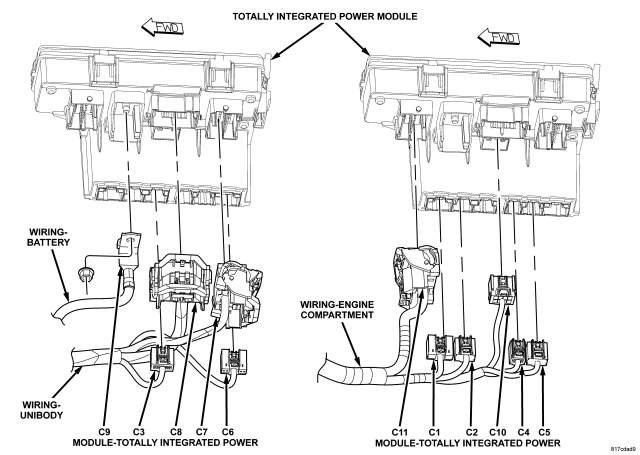

Fuse/Relay Block
|
Black
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - FRONT LEFT, FRAME RAIL - LEFT FRONT (GAS), FRAME RAIL - LEFT FRONT (DIESEL)
|
Generator (Diesel)
|
Black
|
Right Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Generator (Gas)
|
Black
|
Right Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
Generator-Eyelet (Diesel)
|
-
|
Right Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Generator-Eyelet (Gas)
|
-
|
Right Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|

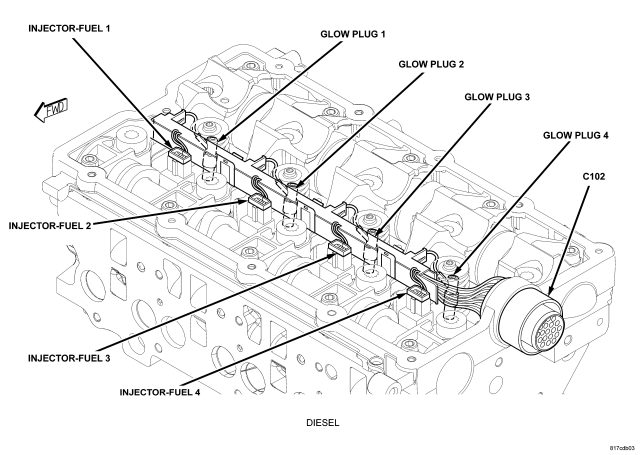

Glow Plug 1
|
Black
|
Right Top of Engine
|
ENGINE - TOP (DIESEL)
|
Glow Plug 2
|
Black
|
Right Top of Engine
|
ENGINE - TOP (DIESEL)
|
Glow Plug 3
|
Black
|
Left Top of Engine
|
ENGINE - TOP (DIESEL)
|
Glow Plug 4
|
Black
|
Left Top of Engine
|
ENGINE - TOP (DIESEL)
|

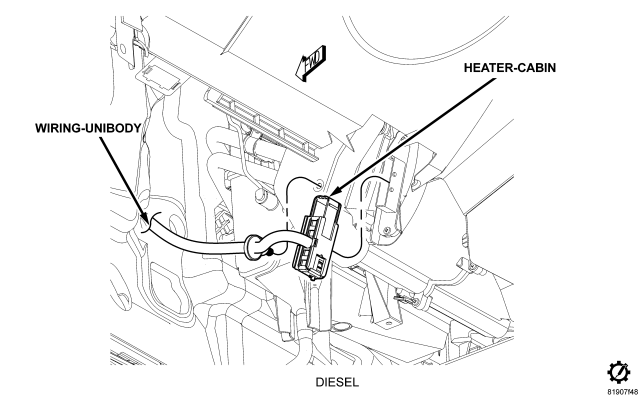

Heater-Cabin
|
|
Lower Instrument Panel
|

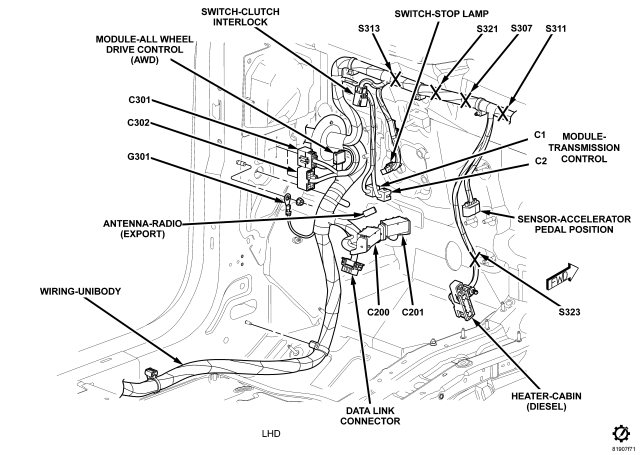

INSTRUMENT PANEL - LOWER CENTER (DIESEL), BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
Heater-PCV
|
Black
|
Right Top of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Heater-Seat Back-Left
|
Black
|
Left Seat
|
N/S
|
Heater-Seat Back-Right
|
Black
|
Right Seat
|
N/S
|
Heater-Seat Cushion-Left
|
Green
|
Left Seat
|

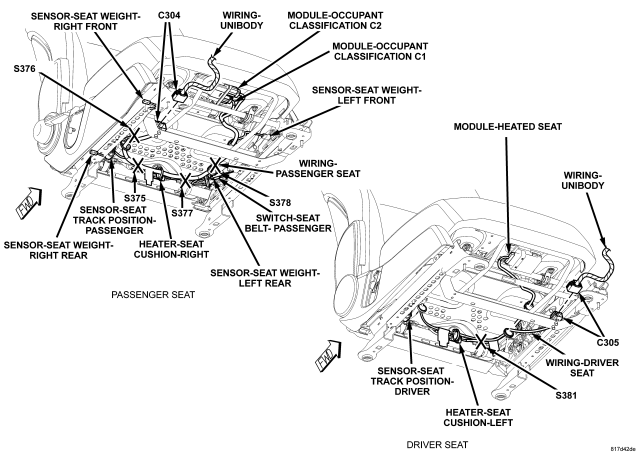

SEATS - FRONT
|
Heater-Seat Cushion-Right
|
Green
|
Right Seat
|
SEATS - FRONT
|
Horn 1
|
Black
|
Left Inner Fender
|
ENGINE COMPARTMENT - FRONT LEFT, FRAME RAIL - LEFT FRONT (GAS)
|
Horn 2
|
Black
|
Right Inner Fender
|
ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|
Injector-Fuel 1 (Diesel)
|
Black
|
Right Top of Engine
|
ENGINE - TOP (DIESEL)
|
Injector-Fuel 1 (Gas)
|
Black
|
Right Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Injector-Fuel 2 (Diesel)
|
Black
|
Right Top of Engine
|
ENGINE - TOP (DIESEL)
|
Injector-Fuel 2 (Gas)
|
Black
|
Right Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Injector-Fuel 3 (Diesel)
|
Black
|
Left Top of Engine
|
ENGINE - TOP (DIESEL)
|
Injector-Fuel 3 (Gas)
|
Black
|
Left Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Injector-Fuel 4 (Diesel)
|
Black
|
Left Top of Engine
|
ENGINE - TOP (DIESEL)
|
Injector-Fuel 4 (Gas)
|
Black
|
Left Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Lamp-Backup-Left
|
Black
|
Left Side of Rear Fascia
|
BODY - LEFT REAR
|
Lamp-Backup-Right
|
Black
|
Right Side of Rear Fascia
|
BODY - RIGHT REAR, LIGHTING - REAR (EXCEPT EXPORT), LIGHTING - RIGHT REAR (EXPORT) (LEFT SIMILAR)
|

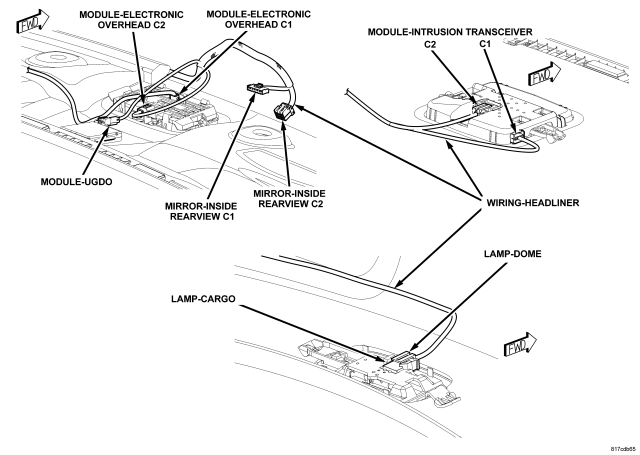

Lamp-Cargo
|
Black
|
Cargo Area
|

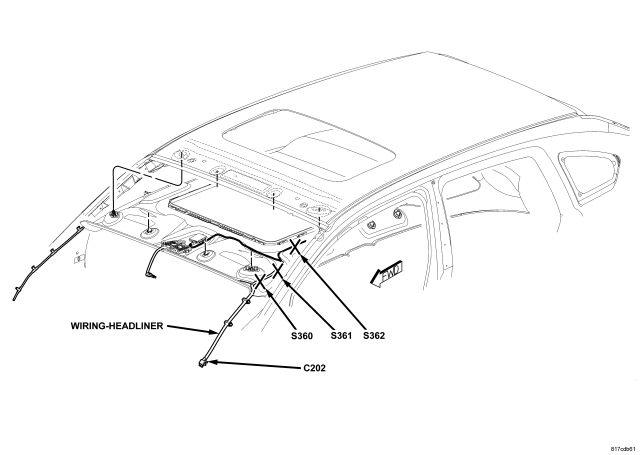

HEADLINER
|
Lamp-Dome
|
|
Center of Headliner
|
HEADLINER
|
Lamp-Fog-Left Front
|
Black
|
Lower Left Front Fascia
|
ENGINE COMPARTMENT - FRONT LEFT, FRAME RAIL - LEFT FRONT (GAS)
|
Lamp-Fog-Right Front
|
Black
|
Lower Right Front Fascia
|
LIGHTING - RIGHT FRONT (LEFT SIMILAR), ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|

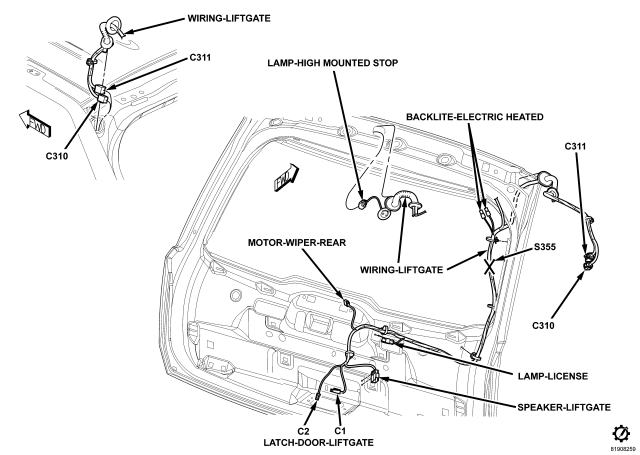

Lamp-High Mounted Stop
|
Black
|
Top of Liftgate
|
LIFTGATE
|
Lamp-License
|
Lt. Gray
|
Center of Rear Fascia
|
LIFTGATE
|
Lamp-Park/Turn-Left Front
|
Black
|
Left Front of Vehicle
|
ENGINE COMPARTMENT - FRONT LEFT
|
Lamp-Park/Turn-Right Front
|
Black
|
Right Front of Vehicle
|
LIGHTING - RIGHT FRONT (LEFT SIMILAR), ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|

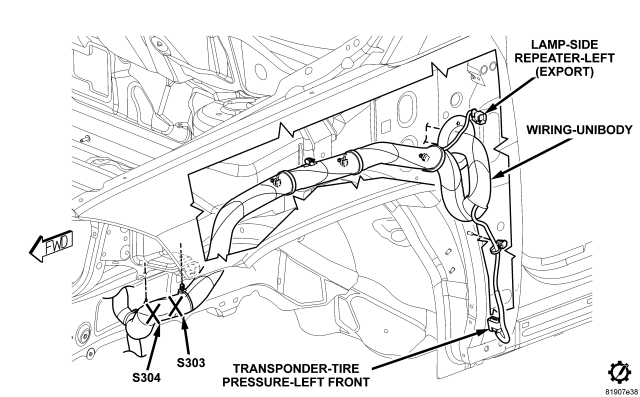

Lamp-Side Repeater-Left (Export)
|
Black
|
Left Front Wheel Opening
|
WHEEL WELL - LEFT FRONT
|

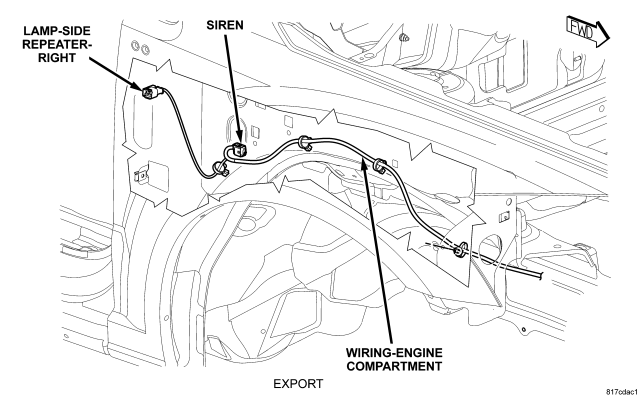

Lamp-Side Repeater-Right (Export)
|
Black
|
Right Front Wheel Opening
|
WHEEL WELL - RIGHT FRONT
|
Lamp-Tail Turn-Left
|
Brown
|
In Rear Lamp Assembly
|
BODY - LEFT REAR
|
Lamp-Tail Turn-Right
|
Brown
|
In Rear Lamp Assembly
|
BODY - RIGHT REAR, LIGHTING - REAR (EXCEPT EXPORT), LIGHTING - RIGHT REAR (EXPORT) (LEFT SIMILAR)
|

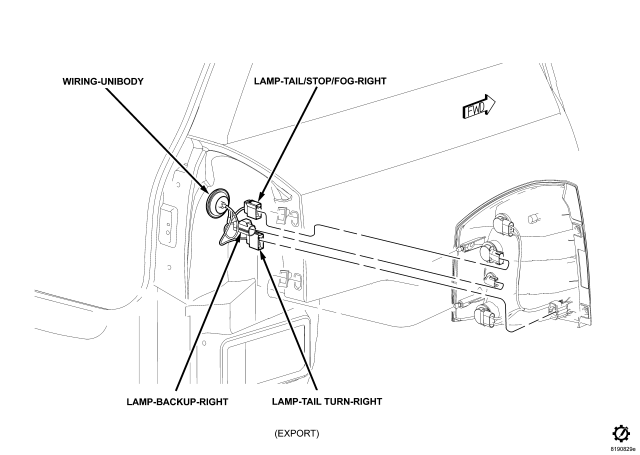

Lamp-Tail/Stop/Fog-Left (Export)
|
|
In Rear Lamp Assembly
|
LIGHTING - RIGHT REAR (EXPORT) (LEFT SIMILAR)
|
Lamp-Tail/Stop/Fog-Right (Export)
|
|
In Rear Lamp Assembly
|
LIGHTING - RIGHT REAR (EXPORT) (LEFT SIMILAR)
|
Lamp-Tail/Stop-Left (Except Export)
|
Black
|
In Rear Lamp Assembly
|
BODY - LEFT REAR
|

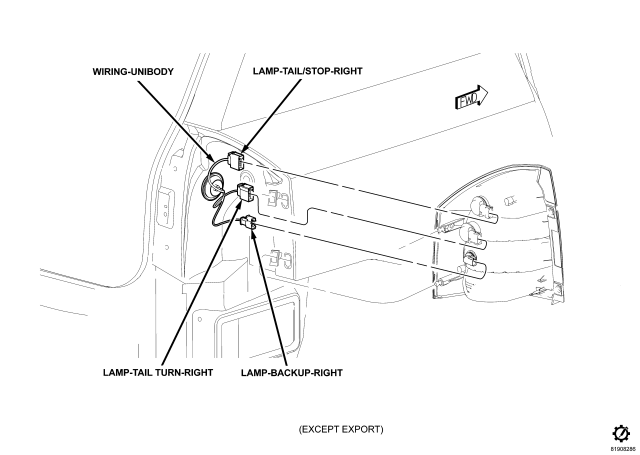

Lamp-Tail/Stop-Right (Except Export)
|
Black
|
In Rear Lamp Assembly
|
BODY - RIGHT REAR, LIGHTING - REAR (EXCEPT EXPORT)
|
Lamp-Turn-Left Front (Export)
|
Natural
|
Left Front of Vehicle
|
ENGINE COMPARTMENT - FRONT LEFT
|
Lamp-Turn-Right Front (Export)
|
Natural
|
Right Front of Vehicle
|
ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR)
|
Lamp-Vanity-Left
|
Black
|
Left Front Side of Headliner
|
HEADLINER
|

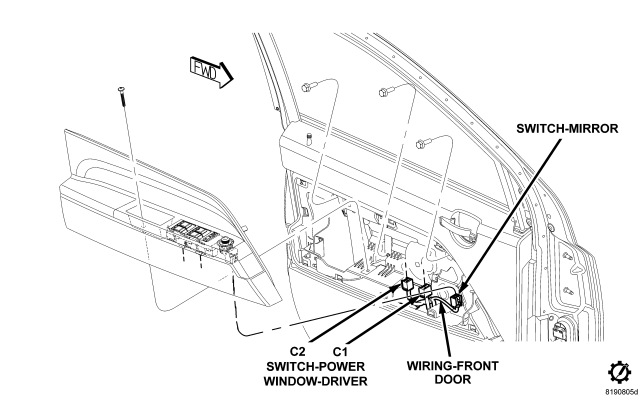

Latch-Door-Driver
|
Black
|
Left Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Latch-Door-Left Rear
|
Black
|
Rear of Left Rear Door
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Latch-Door-Liftgate C1
|
Black
|
Inside Liftgate
|
LIFTGATE
|
Latch-Door-Liftgate C2
|
White
|
Inside Liftgate
|
LIFTGATE
|
Latch-Door-Passenger
|
Black
|
Right Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Latch-Door-Right Rear
|
Black
|
Right Rear Door
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Mirror-Inside Rearview C1
|
Black
|
Center Top Windshield
|
HEADLINER
|
Mirror-Inside Rearview C2
|
Black
|
Center Top Windshield
|
HEADLINER
|

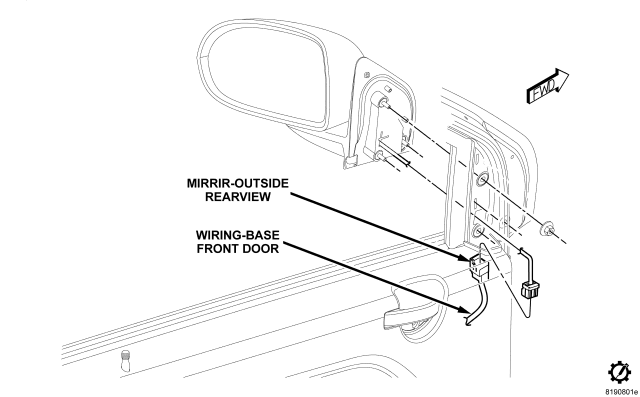

Mirror-Outside Rearview-Driver
|
Black
|
Left Front Door
|
FRONT DOOR - MIRROR (LEFT SHOWN, RIGHT SIMILAR), FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Mirror-Outside Rearview-Passenger
|
Black
|
Right Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Module-All Wheel Drive (AWD) Control
|
Natural
|
Left Kick Panel Near Grommet to Engine Compartment
|
BODY - LEFT FRONT (LHD)
|

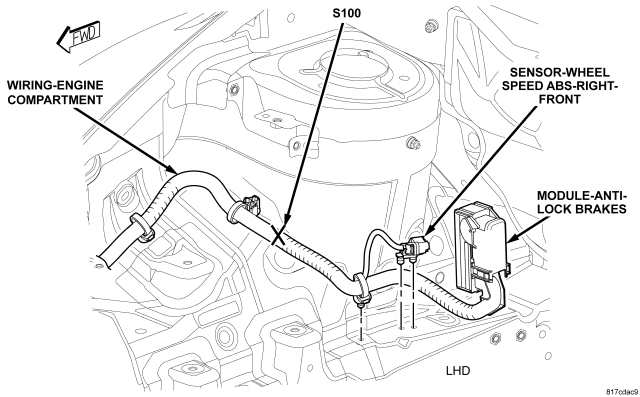

Module-Anti-lock Brakes
|
Black
|
Engine Compartment Near Right Shock Tower
|
SHOCK TOWER - RIGHT FRONT (LHD), ENGINE COMPARTMENT - LEFT REAR
|
Module-Compass
|
Black
|
Center Stack
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Module-Electronic Overhead C1 (Overhead Console)
|
Black
|
Front Center of Headliner
|
HEADLINER
|
Module-Electronic Overhead C2 (Overhead Console)
|
Black
|
Front Center of Headliner
|
HEADLINER
|
Module-Engine Control C1
|
Black
|
Left Side of Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR
|
Module-Engine Control C2
|
Black
|
Left Side of Engine Compartment
|
ENGINE - LEFT FRONT (DIESEL)
|

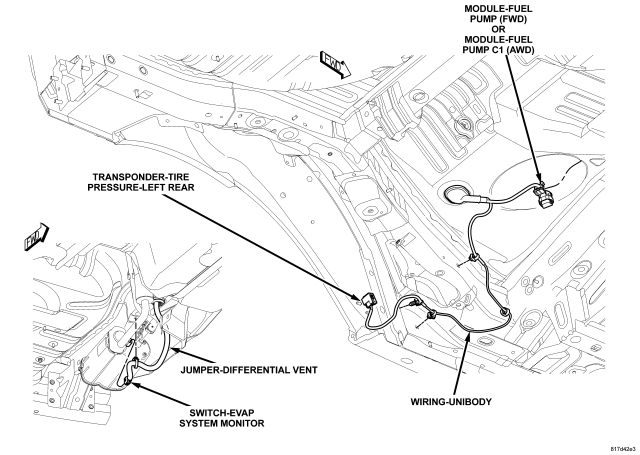

Module-Fuel Pump (FWD)
|
Dk. Gray
|
On Fuel Tank
|
UNDERBODY - LEFT REAR
|
Module-Fuel Pump C1 (AWD)
|
Dk. Gray
|
On Fuel Tank
|
UNDERBODY - LEFT REAR
|

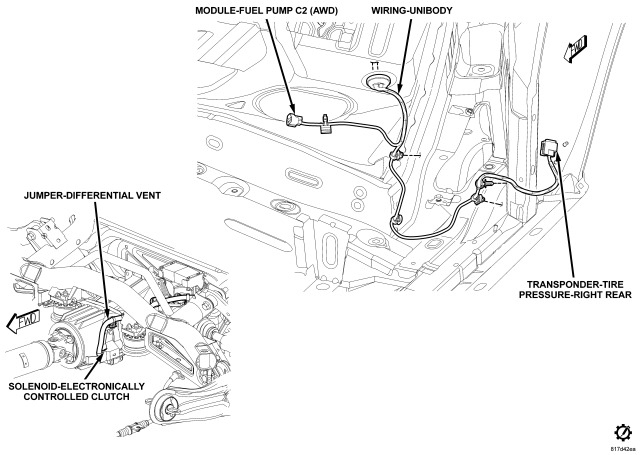

Module-Fuel Pump C2 (AWD)
|
Blue
|
On Fuel Tank
|
UNDERBODY - RIGHT REAR
|
Module-Glow Plug
|
Black
|
Lower Left Front Fender
|
FRAME RAIL - LEFT FRONT (DIESEL)
|
Module-Hands Free
|
Dk. Gray
|
Right Side of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
Module-Heated Seats
|
Black
|
Driver Seat
|
SEATS - FRONT
|
Module-Intrusion Transceiver C1
|
Black
|
Center Instrument Panel
|
A-PILLAR - RIGHT, HEADLINER
|
Module-Intrusion Transceiver C2
|
Black
|
Right Front Headliner
|
HEADLINER
|
Module-Inverter C1
|
|
Lower Center Instrument Panel
|
INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD)
|
Module-Inverter C2
|
Orange
|
Lower Center Instrument Panel
|
INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD)
|
Module-Occupant Classification C1
|
Black
|
Front of Passenger Seat
|
SEATS - FRONT
|
Module-Occupant Classification C2
|
Black
|
Front of Passenger Seat
|
SEATS - FRONT
|
Module-Occupant Restraint Controller C1
|
Yellow/Black
|
Under Center Console
|
BODY - RIGHT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
Module-Occupant Restraint Controller C2
|
Yellow/Black
|
Under Center Console
|
BODY - RIGHT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
Module-Powertrain Control C1
|
Black
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR
|
Module-Powertrain Control C2
|
Black
|
Left Side Engine Compartment
|
ENGINE - LEFT FRONT (GAS), ENGINE - LEFT REAR (GAS)
|

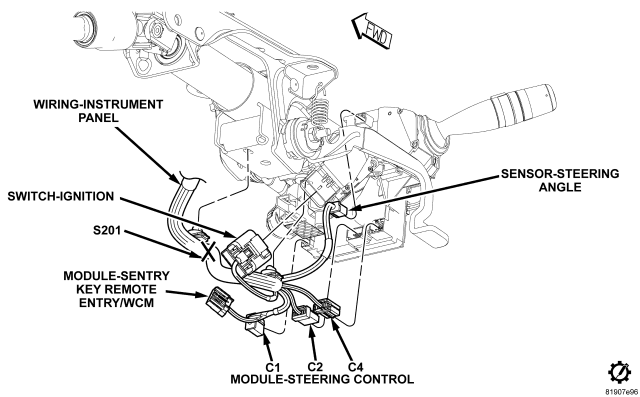

Module-Sentry Key Remote Entry/WCM
|
Black
|
Right of Steering Column
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Module-Steering Control C1
|
White
|
At Steering Column
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Module-Steering Control C2
|
White
|
At Steering Column
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Module-Steering Control C4
|
White
|
At Steering Column
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Module-Steering Control C5
|
White
|
At Steering Column
|
STEERING WHEEL
|
Module-Totally Integrated Power C1
|
Black
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C2
|
Lt. Gray
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C3
|
Brown
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C4
|
Black
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C5
|
Blue
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C6
|
Lt. Gray
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C7
|
Lt. Gray
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C8
|
Black
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C9
|
-
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C10
|
Lt. Gray
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, ENGINE COMPARTMENT - LEFT SIDE
|
Module-Totally Integrated Power C11
|
Green
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR, ENGINE COMPARTMENT - LEFT SIDE
|

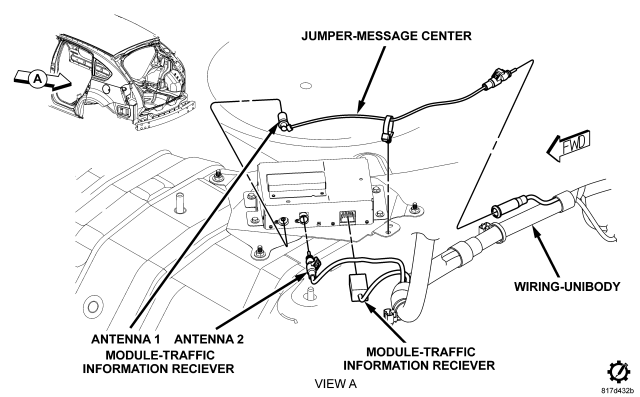

Module-Traffic Information Receiver
|
|
Left Rear Body Floor
|
BODY LEFT REAR (TMC)
|
Module-Traffic Information Receiver Antenna 1
|
|
Left Rear Body Floor
|
BODY LEFT REAR (TMC)
|
Module-Traffic Information Receiver Antenna 2
|
|
Left Rear Body Floor
|
BODY LEFT REAR (TMC)
|
Module-Transmission Control C1
|
White
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
Module-Transmission Control C2
|
Lt. Gray
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
Motor-Blower
|
Natural
|
Lower Passenger Side Instrument Panel
|
INSTRUMENT PANEL (LHD), HVAC, INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER LEFT (RHD)
|
Motor-Sunroof
|
Lt. Gray
|
Front of Sunroof Assembly
|
A-PILLAR - RIGHT
|
Motor-Window-Left Front
|
Black
|
Left Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Motor-Window-Left Rear
|
Black
|
Left Rear Door
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Motor-Window-Right Front
|
Black
|
Right Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Motor-Window-Right Rear
|
Black
|
Right Rear Door
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Motor-Wiper-Front
|
Lt. Gray
|
Center of Cowl Panel
|
ENGINE COMPARTMENT - LEFT REAR
|
Motor-Wiper-Rear
|
Green
|
Center of Liftgate
|
LIFTGATE
|
Power Outlet-AC
|
Orange
|
In Center Console
|
CENTER CONSOLE
|
Power Outlet-Instrument Panel
|
Gray
|
Bottom Center of Instrument Panel
|
BODY - FRONT CENTER
|
Pump-Washer-Windshield
|
Black
|
Right Front Inner Fender Attached to Washer Reservoir
|
ENGINE COMPARTMENT - RIGHT FRONT
|
Radio C1
|
Dk. Gray
|
Center of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Radio C2 (Satellite)
|
Dk. Gray
|
Center of Instrument Panel
|
INSTRUMENT PANEL - LEFT CENTER (LHD)
|
Receiver-Satellite C1
|
—
|
Left Rear Body
|
LUGGAGE COMPARTMENT - LOWER LEFT (SATELLITE RADIO)
|
Receiver-Satellite C2
|
—
|
Left Rear Body
|
LUGGAGE COMPARTMENT - LOWER LEFT (SATELLITE RADIO)
|
Relay-Cabin Heater 1
|
Black
|
Lower Left Front Fender
|
FRAME RAIL - LEFT FRONT (DIESEL)
|
Relay-Cabin Heater 2
|
Black
|
Lower Left Front Fender
|
FRAME RAIL - LEFT FRONT (DIESEL)
|
Resistor-Blower Motor
|
Gray
|
Lower Passenger Side Instrument Panel
|
INSTRUMENT PANEL (LHD), HVAC, INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - LOWER LEFT (RHD)
|
Seat Belt-Tensioner-Driver
|
Yellow/Black
|
Right B-Pillar
|
B-PILLAR - LEFT
|
Seat Belt-Tensioner-Passenger
|
Yellow/Black
|
Left B-Pillar
|
B-PILLAR - RIGHT
|
Sensor-Accelerator Pedal Position
|
Black
|
At Base of Pedal
|
BODY - LEFT FRONT (LHD), BODY - RIGHT FRONT (RHD)
|
Sensor-Ambient AirTemperature
|
Black
|
Lower Left Front Fascia
|
ENGINE COMPARTMENT - FRONT LEFT
|

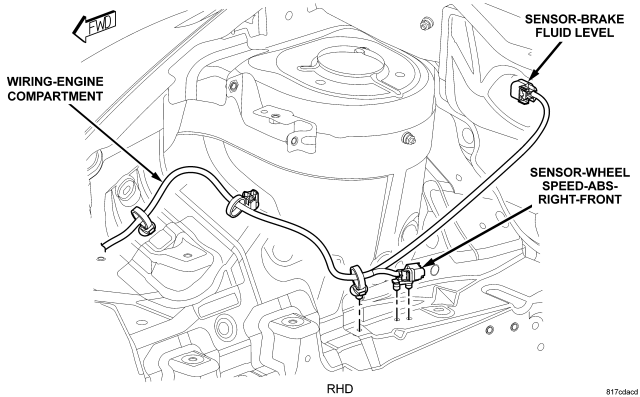

Sensor-Brake Fluid Level
|
Black
|
Left Rear Engine Compartment
|
SHOCK TOWER - RIGHT FRONT (RHD), ENGINE COMPARTMENT - LEFT REAR
|
Sensor-Camshaft 1/1 Position (Gas)
|
Black
|
Left Rear Top of Engine
|
ENGINE - LEFT REAR (GAS), ENGINE - REAR (GAS)
|
Sensor-Camshaft 1/2 Position (Gas)
|
Black
|
RIght Rear Top of Engine
|
ENGINE - LEFT REAR (GAS)
|
Sensor-Camshaft Position (Diesel)
|
Black
|
Left Side of Engine
|
ENGINE - LOWER LEFT FRONT (DIESEL)
|
Sensor-Crankshaft Position (Gas)
|
Black
|
Lower Left Rear of Engine
|
ENGINE - LEFT REAR (GAS), ENGINE - REAR (GAS)
|
Sensor-Crankshaft Position (Diesel)
|
Black
|
Lower Left Front of Engine
|
ENGINE - LOWER LEFT FRONT (DIESEL)
|
Sensor-Dynamics (ESP)
|
Black
|
Center Body Below Instrument Panel
|
BODY - RIGHT FRONT (LHD)
|
Sensor-Engine Coolant Temperature (Diesel)
|
Black
|
Left Side of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Sensor-Engine Coolant Temperature 1 (Gas)
|
Black
|
Left Top of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - LEFT REAR (GAS)
|
Sensor-Engine Coolant Temperature 2 (Gas)
|
Black
|
Center Front of Engine Under Intake Manifold
|
ENGINE - LEFT FRONT (GAS), ENGINE - FRONT (GAS)
|
Sensor-Evaporator Temperature
|
Natural
|
Left Side of HVAC Unit
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - RIGHT (RHD)
|
Sensor-Front Impact-Left
|
Yellow
|
Left Side Body
|
ENGINE COMPARTMENT - FRONT
|

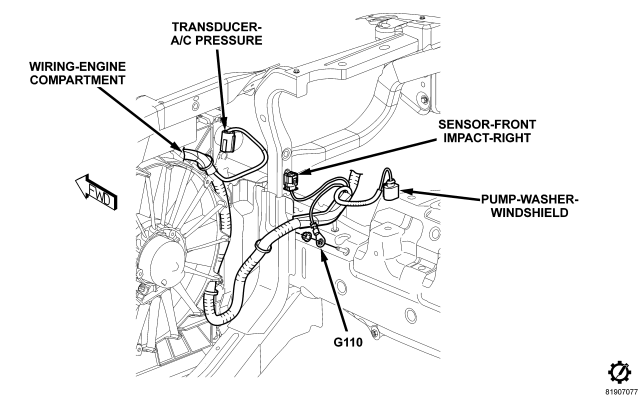

Sensor-Front Impact-Right
|
Yellow
|
Right Front Engine Compartment
|
ENGINE COMPARTMENT - FRONT RIGHT (LEFT SIMILAR), ENGINE COMPARTMENT - RIGHT FRONT
|
Sensor-Fuel Temperature
|
Black
|
Left Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Sensor-Input Speed (CVT)
|
Black
|
Front of Transmission
|
TRANSMISSION (CVT)
|
Sensor-Intake Air Temperature (Gas)
|
Black
|
Left Top of Engine
|
ENGINE - LEFT FRONT (GAS)
|
Sensor-Intake Air Temperature/Boost Pressure
|
Black
|
Lower Left Front Fender
|
ENGINE COMPARTMENT - FRONT, FRAME RAIL - LEFT FRONT (DIESEL)
|

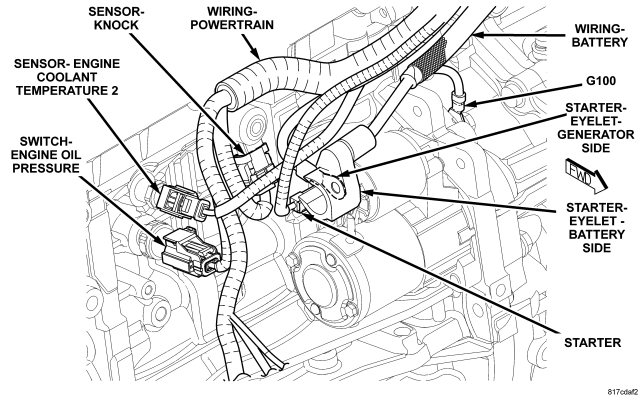

Sensor-Knock
|
Black
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - FRONT (GAS)
|
Sensor-MAP
|
Black
|
Right Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
Sensor-Mass Air Flow (Diesel)
|
Black
|
Left Top of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Sensor-Oil Temperature
|
Black
|
Top Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
Sensor-Output Speed
|
Black
|
Rear of Transmission
|
TRANSMISSION (CVT)
|

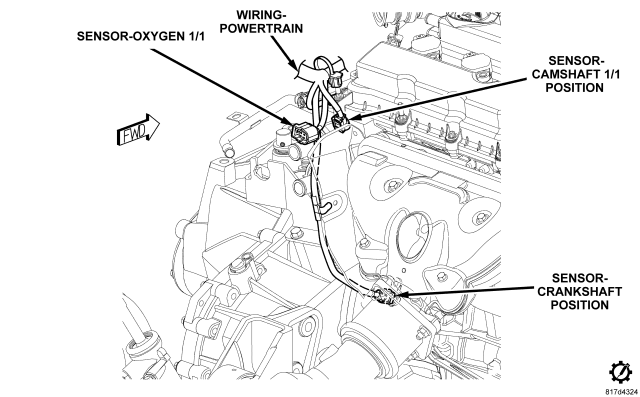

Sensor-Oxygen 1/1
|
Gray
|
Left Side of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - LEFT REAR (GAS), ENGINE - REAR (GAS)
|
Sensor-Oxygen 1/2
|
Black
|
Lower Right Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR
|
Sensor-Seat Track Position-Driver
|
Dk. Gray
|
Right Rear of Driver Seat
|
SEATS - FRONT
|
Sensor-Seat Track Position-Passenger
|
Dk. Gray
|
Right Rear of Passenger Seat
|
SEATS - FRONT
|
Sensor-Seat Weight-Left Front
|
Black
|
Passenger Seat
|
SEATS - FRONT
|
Sensor-Seat Weight-Left Rear
|
Black
|
Passenger Seat
|
SEATS - FRONT
|
Sensor-Seat Weight-Right Front
|
Black
|
Passenger Seat
|
SEATS - FRONT
|
Sensor-Seat Weight-Right Rear
|
Black
|
Passenger Seat
|
SEATS - FRONT
|
Sensor-Side Impact-Left 1
|
Yellow
|
Lower Left B-Pillar
|
B-PILLAR - LEFT
|
Sensor-Side Impact-Left 2
|
Yellow
|
Above Left Rear Wheel Well
|
BODY - LEFT REAR
|
Sensor-Side Impact-Right 1
|
Yellow
|
Base of Right B-Pillar
|
B-PILLAR - RIGHT
|
Sensor-Side Impact-Right 2
|
Yellow
|
Above Right Rear Wheel Well
|
BODY - RIGHT REAR
|
Sensor-Steering Angle
|
White
|
Base of Right B-Pillar
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Sensor-Transmission Range
|
Black
|
Front of Transmission
|
TRANSMISSION (CVT)
|
Sensor-Wheel Speed-ABS-Left Front
|
Black
|
Left Front Wheel Opening
|
ENGINE COMPARTMENT - LEFT REAR
|
Sensor-Wheel Speed-ABS-Left Rear
|
Black
|
Left Rear Wheel Opening
|
BODY - LEFT REAR
|
Sensor-Wheel Speed-ABS-Right Front
|
Black
|
Right Front Wheel Opening
|
SHOCK TOWER - RIGHT FRONT (LHD), SHOCK TOWER - RIGHT FRONT (RHD)
|
Sensor-Wheel Speed-ABS-Right Rear
|
Black
|
Right Rear Wheel Opening
|
BODY - RIGHT REAR
|
Siren
|
Black
|
Right Front Wheel Opening
|
WHEEL WELL - RIGHT FRONT
|
Solenoid-A/C Compressor
|
Black
|
Lower Front of Engine at Compressor
|
ENGINE - LEFT FRONT (GAS), ENGINE - LEFT FRONT (DIESEL)
|
Solenoid-Camshaft 1/1 Position
|
Black
|
Right Side of Enginet
|
ENGINE - LEFT FRONT (GAS)
|
Solenoid-Camshaft 1/2 Position
|
Black
|
Right Rear of Engine
|
ENGINE - LEFT FRONT (GAS)
|
Solenoid-Electronically Controlled Clutch
|
|
At Rear Differential
|
UNDERBODY - RIGHT REAR
|
Solenoid-EVAP Purge (Gas)
|
Black
|
Lower Rear of Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR
|
Speaker-Instrument Panel-Left (Premium)
|
White
|
Left Upper Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD)
|
Speaker-Instrument Panel-Right (Premium)
|
White
|
Right Upper Instrument Panel
|
INSTRUMENT PANEL - LEFT (LHD), INSTRUMENT PANEL (LHD), INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Speaker-Left Front Door
|
White
|
Left Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Speaker-Left Rear
|
White
|
Left Side Body
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Speaker-Liftgate
|
Lt. Gray
|
Lower Center of Liftgate
|
LIFTGATE
|
Speaker-Right Front Door
|
White
|
Right Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Speaker-Right Rear
|
White
|
Right Side Body
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Speaker-Subwoofer (Premium)
|
White
|
Right Side of Luggage Compartment
|
BODY - RIGHT REAR
|
Starter (Diesel)
|
-
|
Lower Left Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Starter (Gas)
|
-
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - FRONT (GAS)
|
Starter-Eyelet-Battery Side (Diesel)
|
-
|
Lower Left Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Starter-Eyelet-Battery Side (Gas)
|
-
|
Left Front of Engine
|
ENGINE - FRONT (GAS)
|
Starter-Eyelet-Generator Side (Diesel)
|
-
|
Lower Left Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
Starter-Eyelet Generator Side (Gas)
|
-
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - FRONT (GAS)
|
Switch-Backup Lamp
|
|
Left Side of Engine Compartment on Manual Transmission
|
FRAME RAIL - LEFT FRONT (DIESEL)
|
Switch-Bank
|
White
|
Center Stack
|
INSTRUMENT PANEL - LEFT CENTER (LHD), INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD), BODY - FRONT CENTER
|
Switch-Clutch Interlock
|
White
|
Left Side of Steering Column
|
BODY - LEFT FRONT (LHD), BODY - RIGHT FRONT (RHD)
|
Switch-Engine Oil Pressure (Gas)
|
Lt. Green
|
Front Center Engine Under Intake Manifold
|
ENGINE - LEFT FRONT (GAS), ENGINE - FRONT (GAS)
|
Switch-EVAP System Monitor
|
Black
|
Right Front Fuel Tank
|
UNDERBODY - LEFT REAR
|
Switch-Hood Ajar
|
Black
|
Left Rear Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR
|
Switch-Horn
|
Black
|
Steering Wheel Below Horn Pad
|
STEERING WHEEL
|
Switch-Ignition
|
Black
|
Right Side of Steering Column
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
Switch-Mirror
|
Lt. Gray
|
Driver Door at Switch
|
FRONT DOOR - WITH TRIM (LEFT SHOWN, RIGHT SIMILAR)
|
Switch-Oil Pressure (Diesel)
|
Black
|
Left Front of Engine
|
ENGINE - LOWER LEFT FRONT (DIESEL)
|
Switch-Parking Brake
|
Natural
|
Rear of Front Center Console
|
BODY - FRONT CENTER
|
Switch-Power Window-Driver C1
|
Lt. Gray
|
Driver Door at Switch
|
FRONT DOOR - WITH TRIM (LEFT SHOWN, RIGHT SIMILAR)
|
Switch-Power Window-Driver C2
|
Lt. Gray
|
Driver Door at Switch
|
FRONT DOOR - WITH TRIM (LEFT SHOWN, RIGHT SIMILAR)
|
Switch-Power Window-Left Rear
|
Lt. Gray
|
Left Rear Door at Switch
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Switch-Power Window-Passenger
|
Lt. Gray
|
Passenger Front Door at Switch
|
FRONT DOOR - WITH TRIM (LEFT SHOWN, RIGHT SIMILAR)
|
Switch-Power Window-Right Rear
|
Lt. Gray
|
Right Rear Door at Switch
|
REAR DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
Switch-Remote Radio-Left
|
Black
|
Left Side of Steering Wheel
|
STEERING WHEEL
|
Switch-Remote Radio-Right
|
Black
|
Right Side of Steering Wheel
|
STEERING WHEEL
|
Switch-Seat Belt-Driver
|
Black
|
Lower Left B-Pillar
|
B-PILLAR - LEFT
|
Switch-Speed Control
|
Black
|
On Steering Wheel
|
STEERING WHEEL
|
Switch-Stop Lamp
|
Black
|
Left Side of Brake Pedal
|
BODY - LEFT FRONT (LHD), BODY - RIGHT FRONT (RHD)
|
Switch-Transfer Case Selector
|
Black
|
In Center Console
|
CENTER CONSOLE
|
Throttle Body
|
Black
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
Transducer-A/C Pressure
|
Gray
|
Top Right of Radiator Fan Assembly
|
ENGINE COMPARTMENT - RIGHT FRONT
|
Transponder-Tire Pressure-Left Front
|
Yellow
|
Rear of Left Front Fender
|
WHEEL WELL - LEFT FRONT
|
Transponder-Tire Pressure-Left Rear
|
Black
|
At Left Rear Wheel Well
|
UNDERBODY - LEFT REAR
|
Transponder-Tire Pressure-Right Rear
|
Black
|
At Right Rear Wheel Well
|
UNDERBODY - RIGHT REAR
|
Valve-EGR Air Flow Control (Diesel)
|
Black
|
Left Front of Engine
|
ENGINE - LOWER LEFT FRONT (DIESEL)
|
Valve-Manifold Flow
|
Black
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
SPLICES
SPLICE
|
LOCATION
|
FIG.
|
S002
|
Left Rear Engine Compartment in ABS Module T/O
|
ENGINE COMPARTMENT - LEFT REAR
|
S003
|
Front Center Engine Compartment above Left Radiator Fan
|
ENGINE COMPARTMENT - FRONT
|
S005
|
Left Side Engine Compartment, Rear of TIPM
|
ENGINE COMPARTMENT - LEFT REAR
|
S007
|
Left Side Engine Compartment in PCM C1 T/O
|
ENGINE COMPARTMENT - LEFT REAR
|
S019
|
Left Rear Engine Compartment in PCM T/O
|
ENGINE COMPARTMENT - LEFT REAR
|
S024
|
Left Front Engine Compartment in Fuse/Relay Block T/O
|
ENGINE COMPARTMENT - FRONT LEFT, FRAME RAIL - LEFT FRONT (DIESEL)
|
S026 (Option 1)
|
Left Front Engine Compartment
|
ENGINE COMPARTMENT - FRONT
|
S026 (Option 2)
|
Left Side Engine Compartment
|
ENGINE COMPARTMENT - LEFT REAR
|
S027
|
Left Front Engine Compartment
|
FRAME RAIL - LEFT FRONT (GAS), FRAME RAIL - LEFT FRONT (DIESEL)
|
S033
|
Left Front Engine Compartment Near Impact Sensor T/O
|
ENGINE COMPARTMENT - FRONT
|
S100
|
Front of Right Front Shock Tower
|
SHOCK TOWER - RIGHT FRONT (LHD)
|
S102
|
In T/O for Powertrain Control Module C2
|
ENGINE - LEFT REAR (GAS)
|
S103 (Diesel)
|
Lower Center Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
S103 (Gas)
|
Right Top of Engine
|
ENGINE - LEFT FRONT (GAS)
|
S104 (Diesel)
|
Left Side of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
S104 (Gas)
|
Near T/O for Ignition Coil 4
|
ENGINE - LEFT REAR (GAS)
|
S105
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
S106
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
S107
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS)
|
S108 (Diesel)
|
Left Front of Engine
|
ENGINE - LEFT FRONT (DIESEL)
|
S120
|
Top of Engine in Injector Wire Harness Trough
|
N/S
|
S150
|
Left Front of Engine
|
ENGINE - LEFT FRONT (GAS), ENGINE - LEFT FRONT (DIESEL)
|
S153
|
Left Side of Engine In T/O for Engine Control Module C2
|
ENGINE - LEFT FRONT (DIESEL)
|
S200 (LHD)
|
Below Center Console
|
BODY - FRONT CENTER
|
S200 (RHD)
|
Center of Instrument Panel
|
INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S201
|
Near Steering Column
|
STEERING COLUMN, INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S202 (LHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S202 (RHD)
|
Center of Instrument Panel
|
INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S203 (LHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S203 (RHD)
|
Center of Instrument Panel
|
INSTRUMENT PANEL (RHD), INSTRUMENT PANEL - LEFT (RHD)
|
S204 (LHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD),
|
S204 (RHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL - LEFT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S205 (LHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S205 (RHD)
|
Right of Instrument Panel
|
INSTRUMENT PANEL (RHD)
|
S206 (LHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S206 (RHD)
|
Center of Instrument Pane
|
INSTRUMENT PANEL (RHD)
|
S207
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S208 (LHD)
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S208 (RHD)
|
Right of Instrument Panel
|
INSTRUMENT PANEL - RIGHT (RHD), INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S209
|
Left of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S214 (LHD)
|
Lower Center of Instrument Panel
|
BODY - FRONT CENTER
|
S214 (RHD)
|
Center of Instrument Panel
|
INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S217 (LHD)
|
In Cluster T/O
|
INSTRUMENT PANEL - LEFT CENTER (LHD)
|
S217 (RHD)
|
Center of Instrument Panel
|
INSTRUMENT PANEL - RIGHT CENTER (RHD)
|
S220
|
Left Side of Instrument Panel
|
INSTRUMENT PANEL (LHD)
|
S225
|
Right Side of Steering Wheel
|
STEERING WHEEL
|
S300
|
Left Side Body Below B-Pillar
|
B-PILLAR - LEFT
|
S301
|
Body Harness Below Right Side of Instrument Panel
|
BODY - RIGHT FRONT (LHD)
|
S302
|
Body Harness Below Right Side of Instrument Panel
|
BODY - RIGHT FRONT (LHD), BODY - RIGHT FRONT (RHD)
|
S303
|
Left Front Fender
|
WHEEL WELL - LEFT FRONT
|
S304
|
Rear of Left Front Fender
|
WHEEL WELL - LEFT FRONT
|
S306
|
Left Side Body Below Front Door Opening
|
B-PILLAR - LEFT
|
S307
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
S308
|
Left Side Body Below Front Door Opening
|
B-PILLAR - LEFT
|
S309
|
Body Harness Below Center of Instrument Panel
|
BODY - RIGHT FRONT (LHD)
|
S310
|
Left Side Body Below B-Pillar
|
B-PILLAR - LEFT
|
S311
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (LHD), BODY - LEFT FRONT (RHD)
|
S312 (LHD)
|
Body Harness Below Right Side of Instrument Panel
|
BODY - RIGHT FRONT (LHD)
|
S313
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (LHD)
|
S314
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (RHD)
|

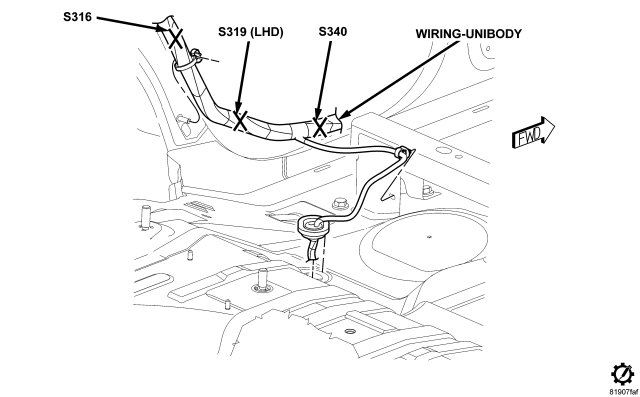

S316
|
Left Side Body Below Left Rear Door Opening
|
BODY - LOWER LEFT REAR, BODY - LEFT REAR
|
S317
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (RHD)
|
S318
|
Left Side Body Below B-Pillar
|
BODY - LEFT FRONT (RHD)
|
S319 (LHD)
|
Body Below Left Rear Door Opening
|
BODY - LOWER LEFT REAR
|
S321
|
Body Harness Below Left Side of Instrument Panel
|
BODY - LEFT FRONT (RHD)
|
S322
|
Right Front Transmission
|
ENGINE - LEFT FRONT (DIESEL)
|
S323
|
Below Center Instrument Panel in T/O for Cabin Heater
|
BODY - LEFT FRONT (LHD)
|
S324
|
Body Harness Below Left Side of Instrument Panel
|
BODY - LEFT FRONT (RHD)
|
S326
|
Left Side Body Below B-Pillar
|
B-PILLAR - LEFT
|
S327
|
Left Front Engine Compartment Near Frame Rail
|
FRAME RAIL - LEFT FRONT (GAS)
|
S328
|
Above Right Rear Wheel Well
|
BODY - RIGHT REAR
|
S331 (RHD)
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (RHD)
|
S332
|
Body Harness Below Left Side Instrument Panel
|
BODY - LEFT FRONT (RHD)
|
S334
|
Left Front Engine Compartment
|
FRAME RAIL - LEFT FRONT (GAS)
|
S335
|
Left Front Engine Compartment
|
FRAME RAIL - LEFT FRONT (GAS)
|
S340
|
Left Side Body Below Left Rear Door Opening
|
BODY - LOWER LEFT REAR
|
S345
|
Above Right Rear Wheel Well
|
BODY - RIGHT REAR
|
S348
|
Above Right Rear Wheel Well
|
BODY - RIGHT REAR
|
S349
|
Front of Left Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
S350
|
Front of Left Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
S351
|
Center of Right Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
S352
|
Front of Right Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
S353
|
Center of Right Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
S354
|
Front of Right Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|
S355
|
Near Upper Left Corner of Liftgate
|
LIFTGATE
|
S360
|
Left Front Headliner
|
HEADLINER - FRONT
|
S361
|
Left Front Headliner
|
HEADLINER - FRONT
|
S362
|
Left Front Headliner
|
HEADLINER - FRONT
|
S368
|
Above Right Rear Wheel Well
|
BODY - RIGHT REAR
|
S370
|
Center of Left Front Door
|
FRONT DOOR (RIGHT SHOWN, LEFT SIMILAR)
|

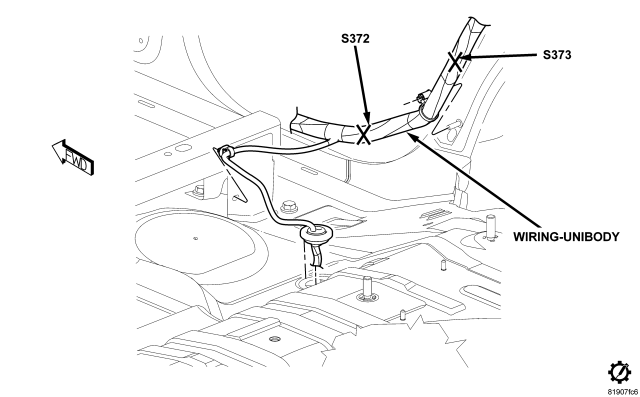

S372
|
Right Body Below Right Rear Door Opening
|
BODY - LOWER RIGHT REAR
|
S373
|
Right Body Below Right Rear Door Opening
|
BODY - LOWER RIGHT REAR, BODY - RIGHT REAR
|
S374
|
Above Right Rear Wheel Well
|
BODY - RIGHT REAR
|
S375
|
Passenger Seat
|
SEATS - FRONT
|
S376
|
Right Side of Passenger Seat
|
SEATS - FRONT
|
S377
|
Left Side of Passenger Seat
|
SEATS - FRONT
|
S381
|
Driver Seat
|
SEATS - FRONT
|
S378
|
Left Side of Passenger Seat
|
SEATS - FRONT
|
