INSTALLATION

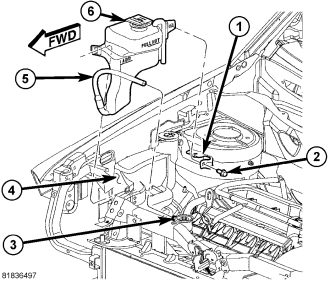

GAS ENGINE
1. Engage coolant recovery container (6) into washer fluid reservoir (4).
2. Install coolant recovery container mounting bolt (2) and tighten to 4 N·m (35 in. lbs.).
3. Connect hose (5) at upper radiator Tee (3).
4. Fill coolant recovery container to proper level.

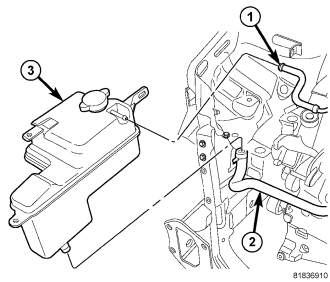

DIESEL ENGINE
1. Lower container (3) into engine compartment and connect coolant hose (2) at bottom of container (3).
2. Position container and install mounting bolt. Tighten to 3 N·m (40 lbs. in.).
3. Connect coolant bypass hose (1) to coolant recovery pressure container (3).
4. Refill cooling system (Refer to 7 - COOLING/ENGINE/COOLANT - STANDARD PROCEDURE).
