GLASS
REMOVAL

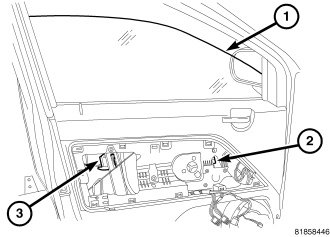

1. Place the glass (1) in the position shown to gain access to the glass connections (2) and (3) from behind the bolster.
2. Disconnect and isolate battery negative cable.

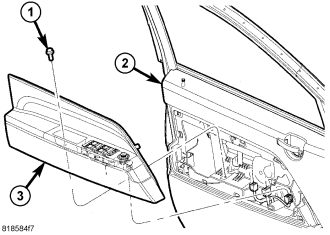

3. Separate the bolster (3) and allow it to hang by the tethers, (Refer to 23 - BODY/DOOR - FRONT/BOLSTER-TRIM PANEL - REMOVAL).

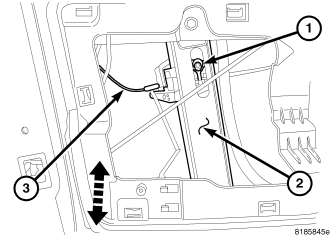

4. Depress the lock tabs (1) and release the glass (3) from the regulator (2) lift plates.
5. Remove the glass from the door.
INSTALLATION

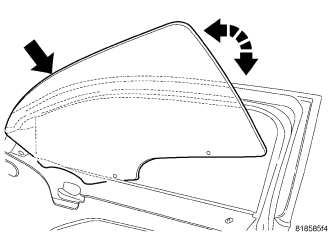

1. Position the glass into the door frame.

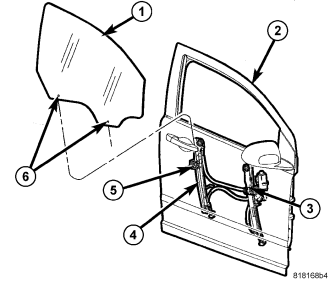

2. Slide glass (1) down into the door (2) and connect the mounting holes (6) to the regulator lift plates (3) and (5).
3. Install the bolster (3), (Refer to 23 - BODY/DOOR - FRONT/BOLSTER-TRIM PANEL - INSTALLATION).
