HANDLE-EXTERIOR
REMOVAL

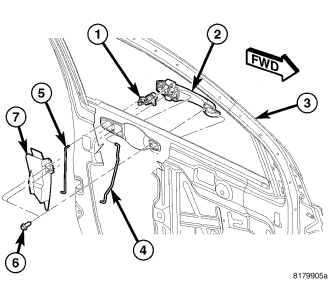

1. Separate the bolster (3) and allow it to hang by the tethers, (Refer to 23 - BODY/DOOR - FRONT/BOLSTER-TRIM PANEL - REMOVAL).
2. Disconnect the linkages (4) and (5), if equipped.
3. Remove the screws (6) and remove the exterior handle (2).
4. Remove the lock cylinder (1), if equipped.
INSTALLATION
1. Install the lock cylinder (1), if equipped.
2. Install the handle (2) and install the screws (6).
3. Tighten screws (6) to 8 N·m (6 ft. lbs.)
4. Connect lock cylinder link rod (5) on to lock cylinder (1).
5. Connect handle link rod (4) on to door handle (2).
6. Install the bolster (3), (Refer to 23 - BODY/DOOR - FRONT/BOLSTER-TRIM PANEL - INSTALLATION).
