LATCH
REMOVAL
1. Separate the bolster (3) and allow it to hang by the tethers, (Refer to 23 - BODY/DOOR - FRONT/BOLSTER-TRIM PANEL - REMOVAL).
2. Disconnect the latch linkages (1 and 2).
3. Remove the latch screws (4).

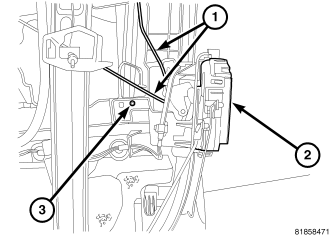

4. Disconnect the latch linkages (1).
5. Remove the bracket screw (3).
6. Remove the latch (2) and disconnect the electrical connector.
INSTALLATION
1. Connect the electrical connector.
2. Install the latch (3) and install the screws (4).
3. Tighten the screws to 7 N·m (62 in. lbs.).
4. Attach the exterior handle (1) and lock rod (2), if equipped.
5. Connect the linkages (1).
6. Install the support bracket screw (3).
7. Install the bolster (3), (Refer to 23 - BODY/DOOR - FRONT/BOLSTER-TRIM PANEL - INSTALLATION).
ADJUSTMENTS

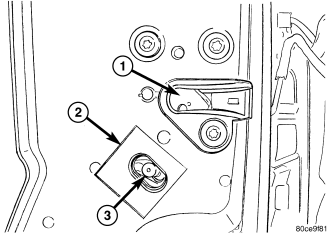

1. Locate the access hole in the door to adjust the door latch (1) and remove the mylar tape (2).
2. Loosen latch adjusting screw (3) threw access slot in door shut face (1/2 to 1 full turn).
3. Operate the door handles several times to reduce any possible linkage binding and tighten the adjustment screw to 3 N·m (30 in. lbs.).
4. Operate the door handles again to verify proper operation and reinstall the mylar tape.
