HANDLE-EXTERIOR
REMOVAL

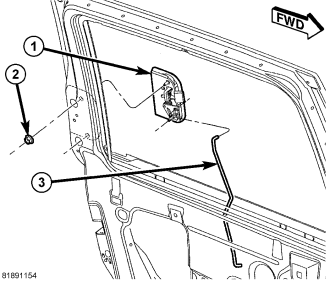

1. Separate the bolster (3) and allow it to hang by the tethers, (Refer to 23 - BODY/DOORS - REAR/BOLSTER-TRIM PANEL - REMOVAL).
2. Disconnect the latch rod (3).
3. Position the weatherstrip aside to gain access to the handle fasteners.
4. Remove the two handle nuts (2) and remove the handle (1).
INSTALLATION
1. Install the handle (1) and install the nuts (2).
2. Tighten the nuts to 4 N·m (35.5 in. lbs.).
3. Position the weather strip back, if necessary.
4. Install the bolster (3), (Refer to 23 - BODY/DOORS - REAR/TRIM PANEL - INSTALLATION).
