2007 Compass Patriot MK Factory Service Manual 9 - ENGINE

CHAIN AND SPROCKETS-TIMING

INSPECTION



Inspect timing chain for stretching prior to removal.
1. Rotate engine while watching timing chain tensioner plunger. When the plunger reaches its maximum travel stop rotating engine.

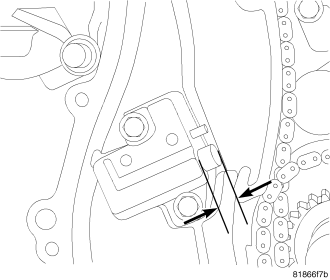

2. Measure the distance from the tensioner body and the edge of the chain guide as shown.
3. If the distance is greater than 20.5 mm (0.81 in.) inspect guide shoes for excessive wear.
4. If guides are okay, replace timing chain.
