COOLER-OIL
DESCRIPTION
An engine oil cooler is used on some engine packages. The cooler is a coolant-to-oil type and mounted between the oil filter and oil filter adapter .
REMOVAL
NOTE: The oil cooler can not be cleaned out. In the event that the engine requires rebuilding or replacement, the oil cooler should be replaced.
1. Raise vehicle on hoist.
2. Drain cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
3. Disconnect oil cooler coolant hoses .

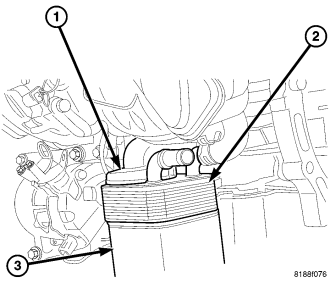

4. Remove oil filter (3).
5. Remove oil cooler connector bolt (2).
6. Remove oil cooler (1).
INSTALLATION

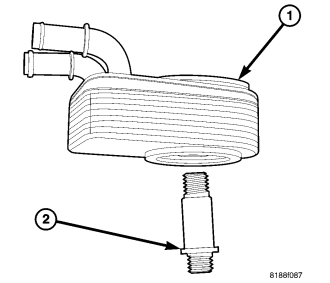

1. Replace oil cooler seal (1).
2. Lubricate seal and position oil cooler to oil filter adapter, aligning notch to tab.
3. Install oil cooler connector bolt (2). Tighten connector bolt to 55 N·m (41 ft. lbs.).
4. Install oil filter (3).
5. Connect oil cooler coolant hose .
6. Lower vehicle.
7. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
