ELEMENT-AIR CLEANER
REMOVAL

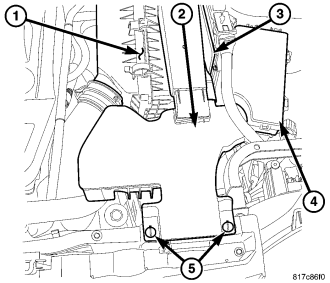

1. Turn lock retainers (5) and remove fresh air inlet (2) from air cleaner housing (1).

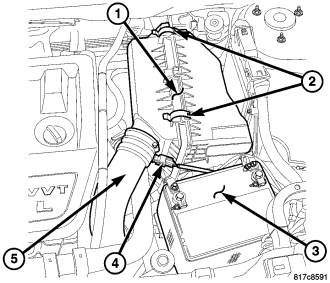

2. Disconnect intake air temperature sensor connector (4).
3. Remove air inlet tube (5) from air cleaner housing (1).
4. Unfasten clasps (2) on sides of air cleaner housing cover.

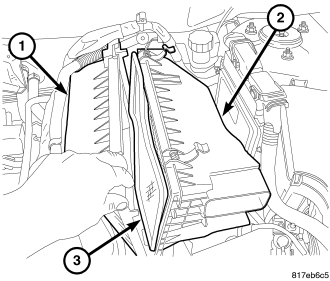

5. Pull air cleaner cover (1) aside.
6. Remove filter element (3).
7. If necessary, clean the inside of the air cleaner housing (2).
INSTALLATION
1. Install new filter element.
2. Place cover over air cleaner housing. Snap clasps (2) in place.
3. Install air inlet tube (5).
4. Connect intake air temperature sensor connector (4).
5. Install fresh air inlet (2) on air cleaner housing (1) and lock retainers (5).
