MOUNT-FRONT

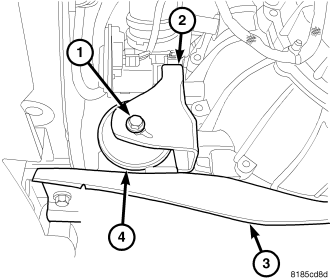

REMOVAL
1. Raise vehicle.
2. Remove fore aft member (3) to mount (4) bolts.
3. Remove mount through bolt (1).
4. Remove fore aft member (3) mounting bolts and remove.
5. Remove front mount (4).
INSTALLATION
1. Position mount (4) and torque bolts to 47 N·m (35 ft. lbs.).
2. Install fore aft member (3) and torque bolts to 100N·m (74 ft. lbs.).
3. Install mount through bolt (1) and torque to 47 N·m (35 ft. lbs.).
4. Lower vehicle.
