MOUNT-LEFT
REMOVAL
1. Remove air cleaner inlet (2) and air cleaner housing (1).

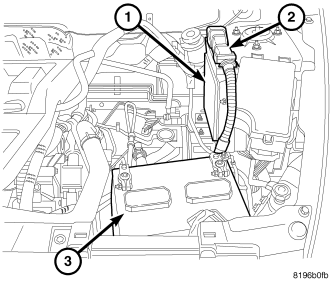

2. Remove PCM (1).
3. Remove PCM mounting bracket.
4. Disconnect negative cable from battery (3).
5. Support transaxle with a suitable jack.
6. Remove left mount through bolt (3).
7. Remove left mount bracket to body frame rail fasteners (1).
8. Remove mount.
INSTALLATION

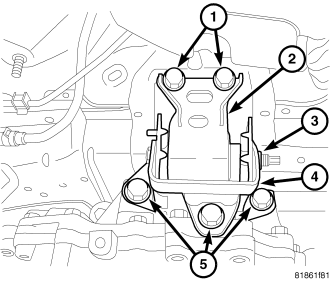

1. Position mount (2) in place.
2. Install left mount to frame rail bolts (1) and torque to 75 N·m (55 ft. lbs.).
3. Install mount through bolt (3) and torque to 100 N·m (74 ft.lbs.).
4. Remove jack.
5. Install PCM mounting bracket.
6. Install PCM (1).
7. Connect negative cable to battery (3).
8. Install air cleaner housing (1) and air cleaner inlet (2).
