MOUNT-REAR
REMOVAL

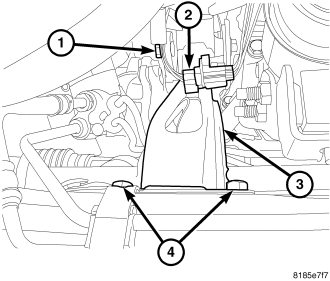

1. Remove rear mount retaining bolts (4).
2. Remove rear mount through bolt (1) .
3. Remove oxygen sensor connector (2) from mount.
4. Remove rear mount (3).
INSTALLATION
1. Position rear mount (3).
2. Install rear mount retaining bolts (4) and torque to 50 N·m (37 ft. lbs.).
3. Install rear mount through bolt (1) and torque to 75 N·m (55 ft. lbs.).
4. Install oxygen sensor connector (2) retainer to mount (3).
