MOUNT-RIGHT
REMOVAL

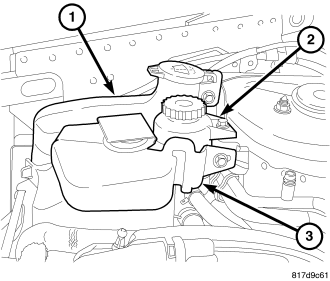

1. Remove coolant reservoir (3) and set aside.
2. Remove power steering reservoir (2) and set aside.
3. Remove windshield washer bottle (1).

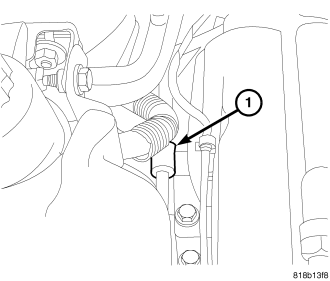

4. Remove power steering line support bracket (1) from engine mount.
5. Support transaxle with a block of wood and a suitable jack.

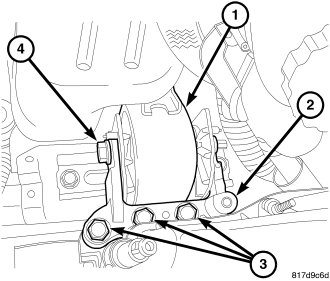

6. Remove engine mount through bolt (4).
7. Remove engine mount bracket bolts (3).
8. Remove engine mount retaining bolts.
9. Remove engine mount.
INSTALLATION
1. Position right engine mount (1).
2. Install engine mount retaining bolts and tighten to 75 N·m (55 ft. lbs.).
3. Install engine mount adapter (2) and tighten bolts (3) to 68 N·m (50 ft. lbs.).
4. Install engine mount through bolt (4) and tighten to 88 N·m (65 ft. lbs.).
5. Remove jack.
6. Install power steering line support bracket (1) at engine mount.
7. Install windshield washer bottle (1).
8. Install power steering reservoir (2).
9. Install coolant reservoir (3).
10. Install engine cover.
