P0236-BOOST PRESSURE SENSOR PERFORMANCE

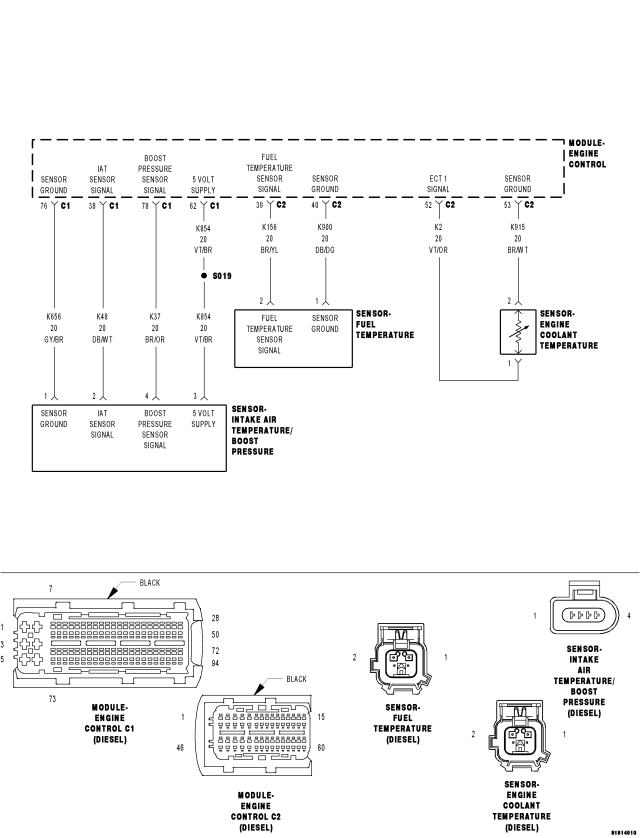

For a complete wiring diagram Refer to Section 8W

• When Monitored:

  Once per ignition cycle before engine crank. No other Atmospheric Pressure Sensor DTC's present. No other Boost Pressure Sensor DTC's present.

• Set Condition:

  The Intake Air Temperature/Boost Pressure Sensor signal differs from the Atmospheric Pressure Sensor signal by 150 hpa or greater.

Diagnostic Test

NOTE: If the ECM detects and stores a DTC, the ECM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed.

NOTE: Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.
